8 SAFEGEAR® 5/15 KV, UP TO 50 KA ARC-RESISTANT SWITCHGEAR

These doors are provided with either a single han-

dle, multi-point latch (MPL) door for all Type 2 and

Type 2B applications or bolted doors for Type 2BC

applications. Doors with MPL utilize two viewing

windows while bolted doors have only one. All

doors are hinged on the left as standard (when fac-

ing the doors). Right-hand hinged doors are avail-

able as an option.

Rear doors on the SafeGear product are used to ac-

cess the high voltage cable compartments. These

doors are available in the following configurations:

• Split doors (top compartment/bottom compart-

ment) hinged and bolted

• Bolted, non-hinged split doors are also available as

an option

All front and rear doors are constructed using

12-gauge painted steel.

Padlock provisions are available on all front and

rear doors. These padlock provisions are used to

lock the door closed to prevent access inside the

compartment. On breaker compartment doors,

padlock provisions are also supplied on the rack-

ing release lever, to prevent racking of the

breaker.

Breaker and auxiliary unit doors include viewing

windows used for observing the position and sta-

tus of the components inside the compartment

with the door closed. These doors can also be

provided with the SmartRack mounting provi-

sions for remote racking applications.

Due to the small footprint design, installation of

protection and control devices on the breaker and

auxiliary unit doors are not possible.

—

Construction

Doors

SafeGear front doors consist of the breaker compartment, auxiliary unit

compartments and LV compartments.

—

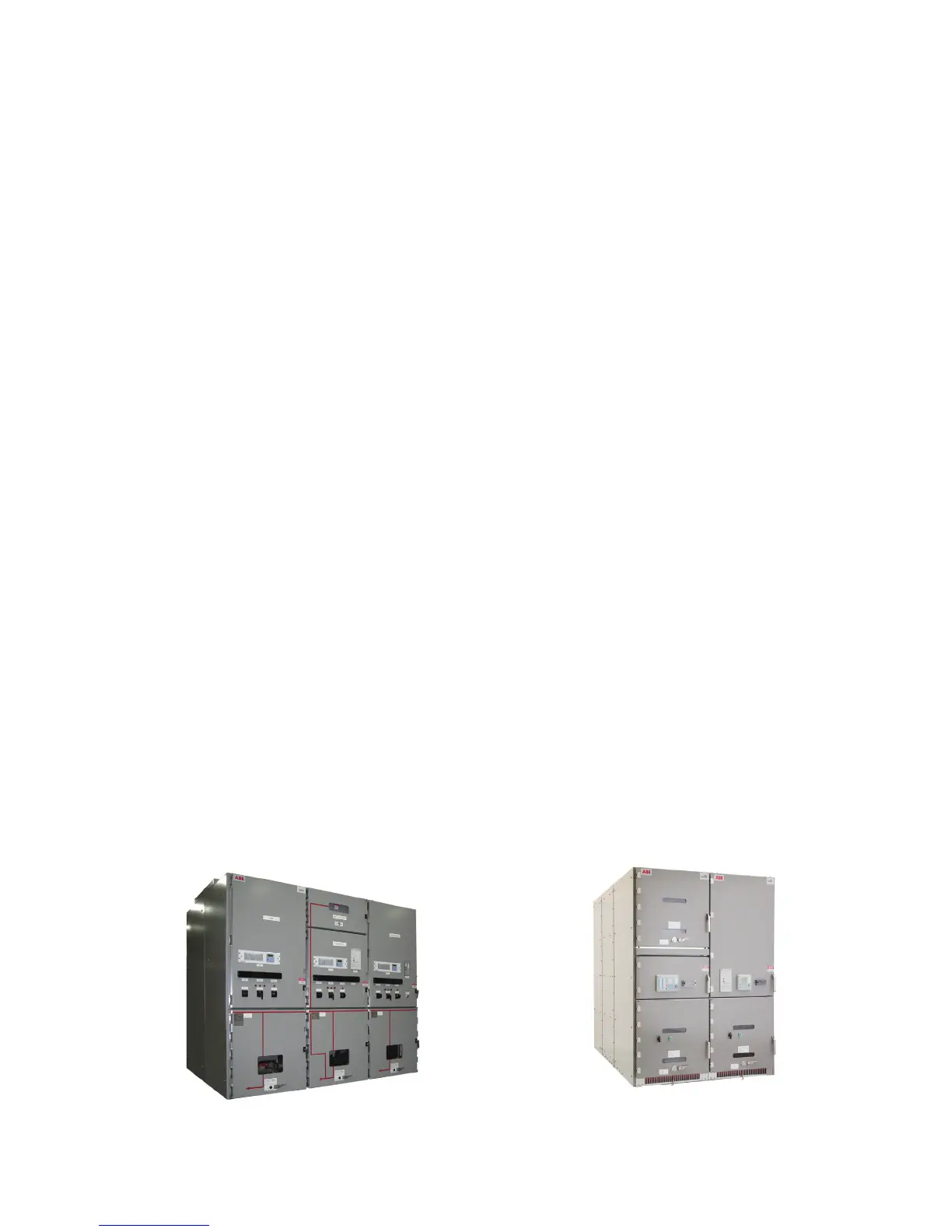

01 Bolted doors

—

02 Multi-point latch doors

—
