20 SAFEGEAR® 5/15 KV, UP TO 50 KA ARC-RESISTANT SWITCHGEAR

Description

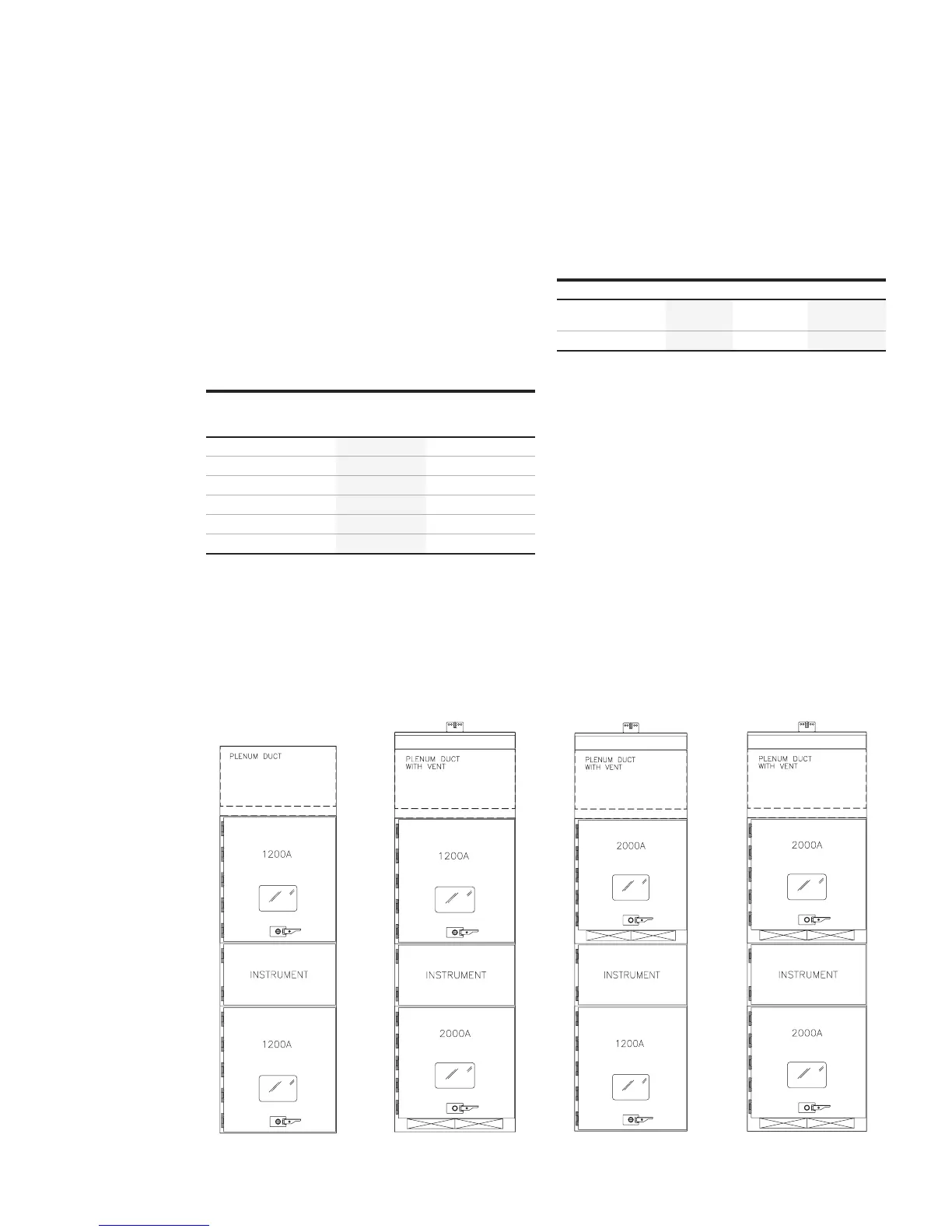

The two-high breaker frame consists of two 38-

inch breaker compartments with a 19-inch instru-

ment compartment in between for two breakers in

a single frame.

—

Cable termination information

Cable size # of terms

single pad

per phase

GCT option

  BYZ-S

  BYZ-S

  BYZ-S

  BYZ-L

  BYZ-S

  BYZ-S

—

Available frame types

Two-high frames

—

Dimensions

Frame Width (in) Height (in)* Depth (in)



breaker

  86.5 or 93.5

All other frames   86.5 or 93.5



Options

• Ground CTs

• Surge arrestors

- Distribution

- Intermediate

- Station

• Surge capacitor

• Ground studs

• Space heaters

• Cable supports

All ratings (refer to page 28 for floorplans)
