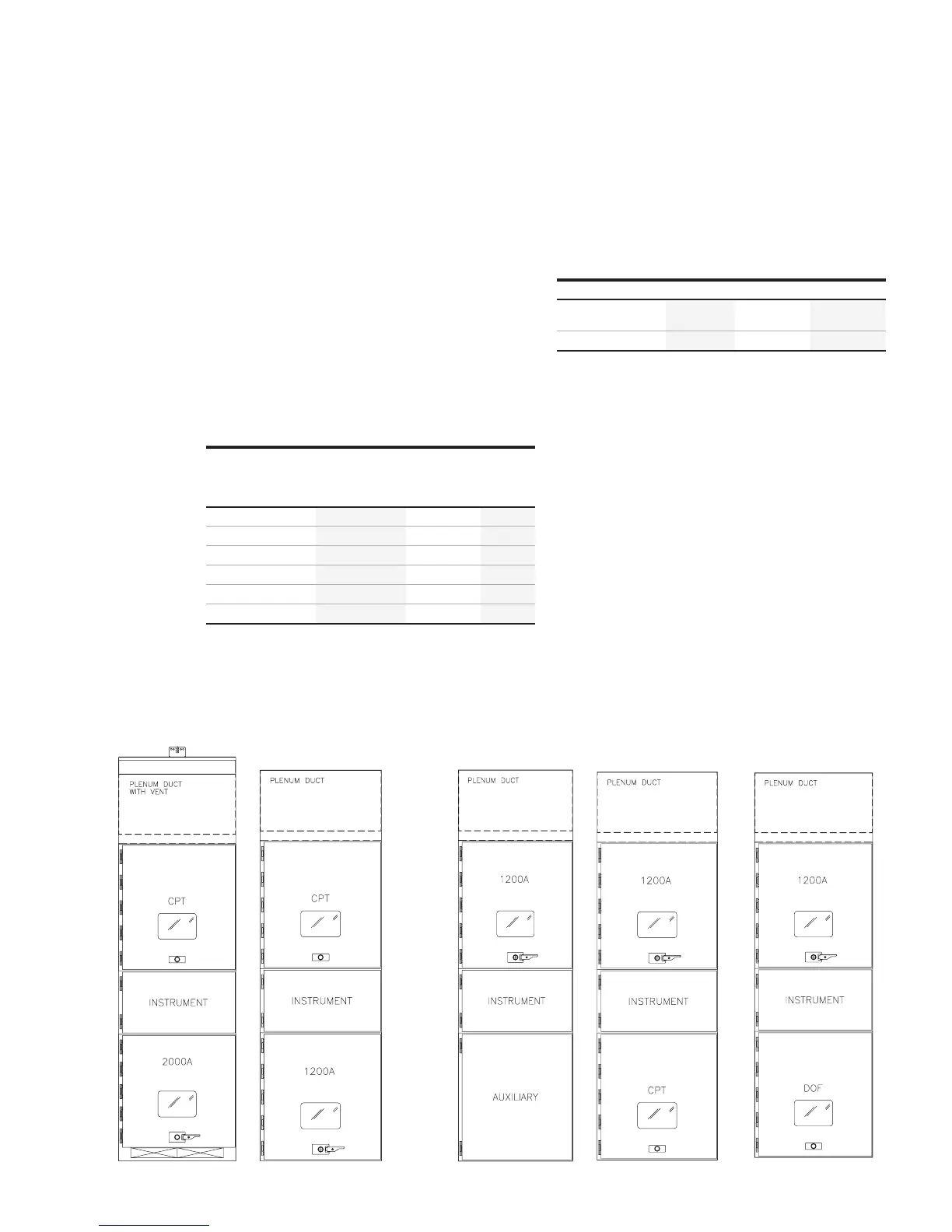

Available frame types
Breaker and auxiliary frames
—
Dimensions
Frame Width (in) Height (in)* Depth (in)

breaker
  86.5 or 93.5
All other frames   86.5 or 93.5

Options
• Ground CTs
• Surge arrestors
- Distribution
- Intermediate
- Station
• Surge capacitor
• Ground studs
• Space heaters
• Cable supports
Description
The two-high breaker and auxiliary frame consists
of two 38-inch compartments with a 19-inch instru-
ment compartment in between for one breaker and
an auxiliary device in a single frame or one 38-inch
compartment with 19-inch low voltage and two 19-
inch auxiliary compartments for equipment with
short circuit ratings less than 40 kA.
—
Cable termination information
Cable size # of terms
single pad
per phase
# of terms
bifurcated
pad per
phase*
GCT
option
   BYZ-S
   BYZ-S
   BYZ-S
   BYZ-L
   BYZ-S
   BYZ-S

All ratings (refer to page 29 and 30 for floorplans)
—
01 Breaker below
—
02 Breaker above
—
01
—
02
