32 SAFEGEAR® 5/15 KV, UP TO 50 KA ARC-RESISTANT SWITCHGEAR
—

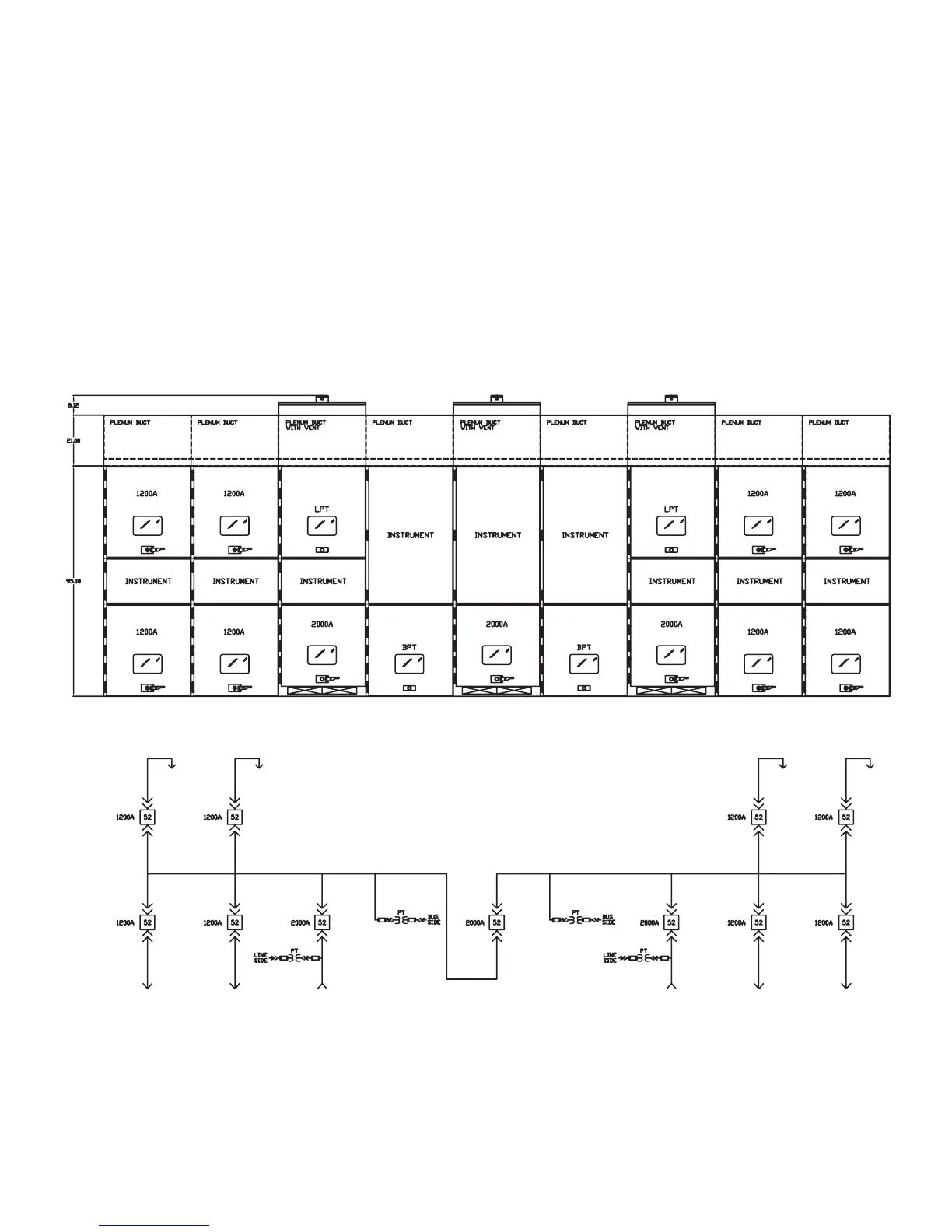

Typical arrangements
Main-Tie-Main: 1200 A/2000 A, 40 kA and 50 kA
Arrangements are the same for 5, 8.25 and 15 kV
