TECHNICAL AND APPLICATION GUIDE
37
—

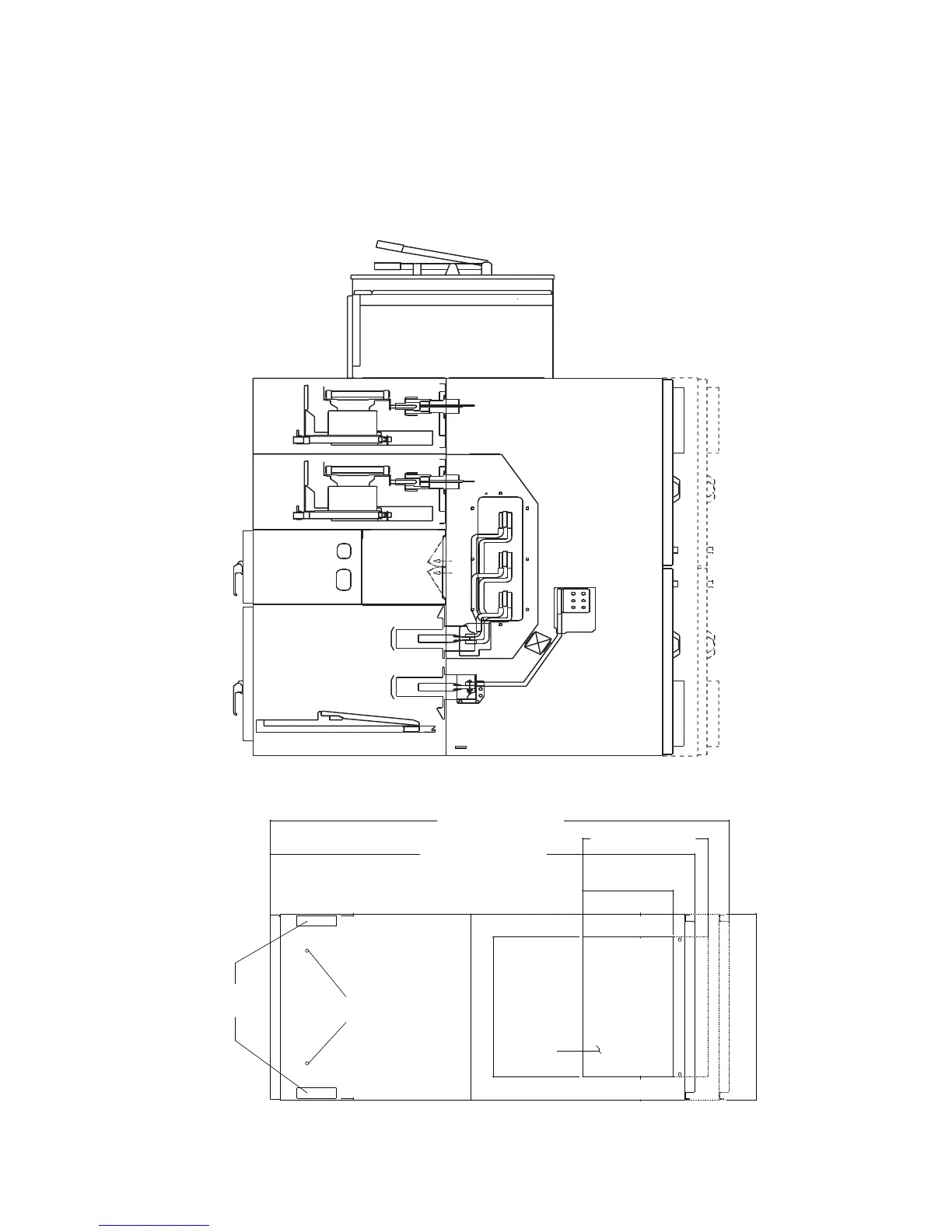

Civil engineering details
Typical side views, floor plans, and clearances
SafeGear switchgear breaker and auxiliary
Circuit breaker: 2000 A, with PTs less than 31.5 kA
SECTION VIEW
2000A
CLOSED
OPEN
PT COMPT
PT COMPT
FLOOR PLAN
CONTROL CABLE
ENTRY AREA
(4) 1/2"- 13 UNC
ANCHOR BOLTS PER FRAME
POWER CABLE
ENTRANCE
18.5''[469.9 mm]
27''[685.8 mm]
4.5''[114.3 mm]
4.5''[114.3 mm]
36''[914.4 mm]
86.35''[2193.29 mm]
93.35''[2371.09 mm]
0.375''[9.52 mm]
0.375''[9.52 mm]
25.5''[647.7 mm]
