38 SAFEGEAR® 5/15 KV, UP TO 50 KA ARC-RESISTANT SWITCHGEAR
—
Civil engineering details

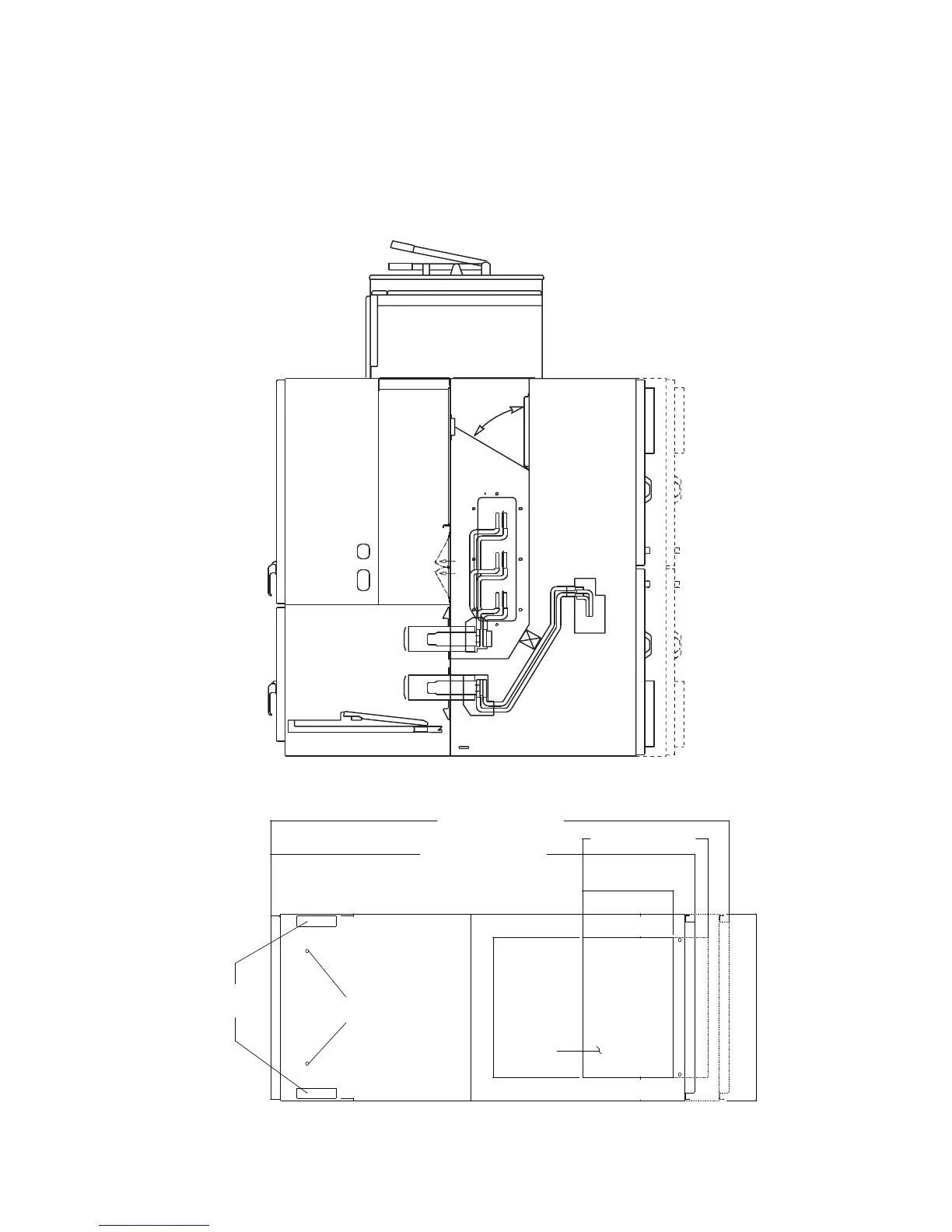

Typical side views, floor plans, and clearances
SafeGear switchgear one-high frames
Circuit breaker: 3000 A or 4000 A
SECTION VIEW
3000A
CLOSED
OPEN
FLOOR PLAN
CONTROL CABLE
ENTRY AREA
(4) 1/2"- 13 UNC
ANCHOR BOLTS PER FRAME
POWER CABLE
ENTRANCE
18.5''[469.9 mm]
27''[685.8 mm]
4.5''[114.3 mm]
4.5''[114.3 mm]
36''[914.4 mm]
86.35''[2193.29 mm]
93.35''[2371.09 mm]
0.375''[9.52 mm]
0.375''[9.52 mm]
25.5''[647.7 mm]
