4 Navigation
Operator keys and door features

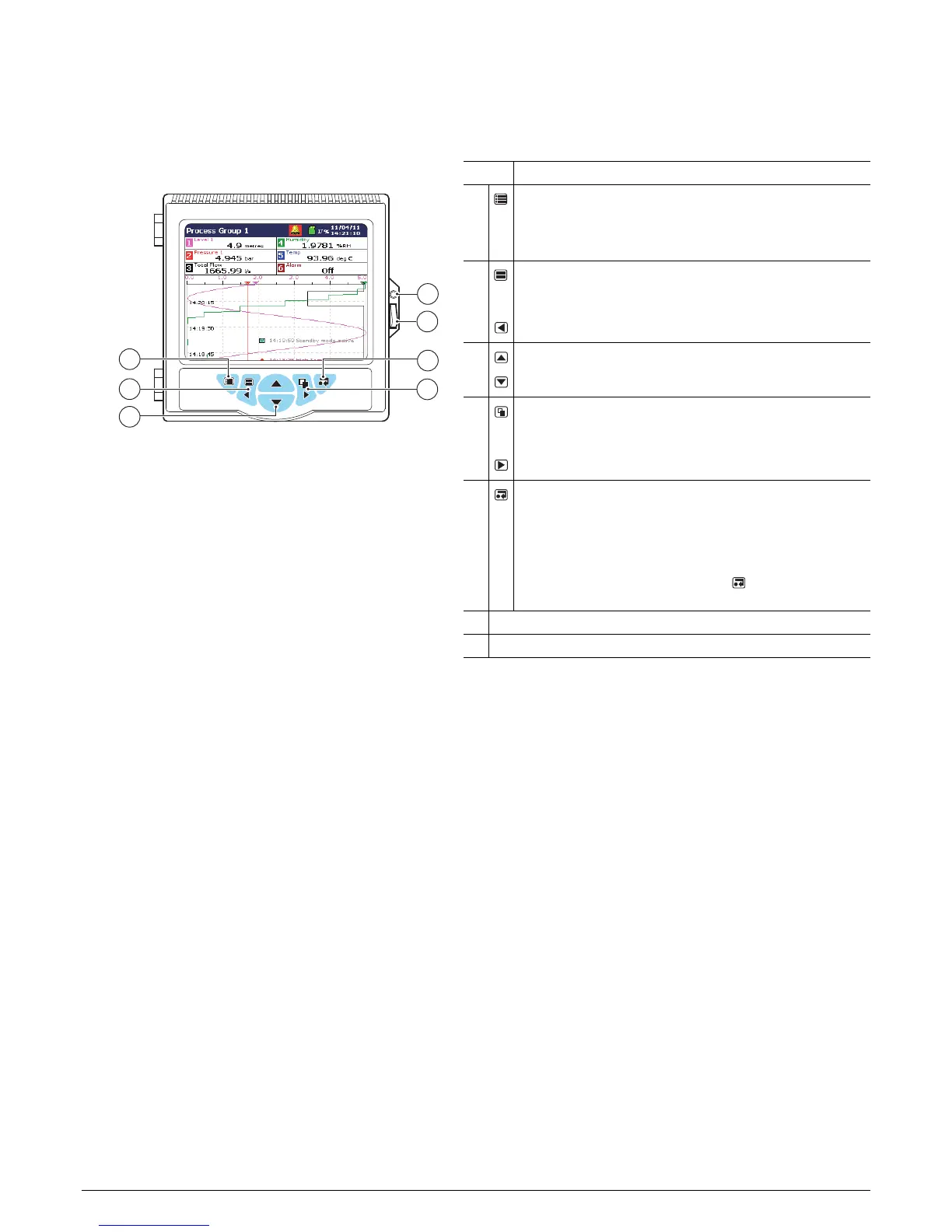

The recorder is operated via the Operator Keys located below the screen.
Referring to Table 1, operator keys and door features are located as follows:
Key
Function
A
Menu key – displays or hides the context-sensitive
operator menu associated with each view. Also cancels
the menu without making a change or returns to the
previous menu level
B
Group key – selects a different process group.
or
Left key – scrolls left.
C
Up / Down keys – highlights menu items and scrolls
through previously recorded data.
D
View key – selects a different process view or log.
or
Right key – scrolls right.
E
Enter key – selects the highlighted menu item.
If 'Screen Capture' is set to 'Enabled' during configuration
and a Secure Digital (SD) archive media card is inserted in
the recorder, the operator can save a snapshot of any an
image of any Chart, Indicator, Audit Log, Alarm Log or
Totalizer Log view to the SD card if is pressed when an
operator menu is not displayed.
F
Door release.
G
Door lock (optional).
Table 1 Operator keys and door features
A
B
C
D
E
F
G
