ABB SM500F Commissioning Instructions

12 CI/SM500F–EN Rev. A
5 Menus overview
Operator menus
Press from any operator or log view to display the Operator
menus. Recorder functions are then accessed by using the
and keys to highlight the required option within the
displayed menu and pressing to select the highlighted
option.
Configuration level menus
To access the configuration menus:
1. Highlight Configuration in the operator menu.
2. Press and highlight the operator to log on as.
3. Press and enter the operator password (if configured).
4. Select the configuration entry mode:
a. Edit Current Configuration
b. Open a Configuration
c. New Configuration

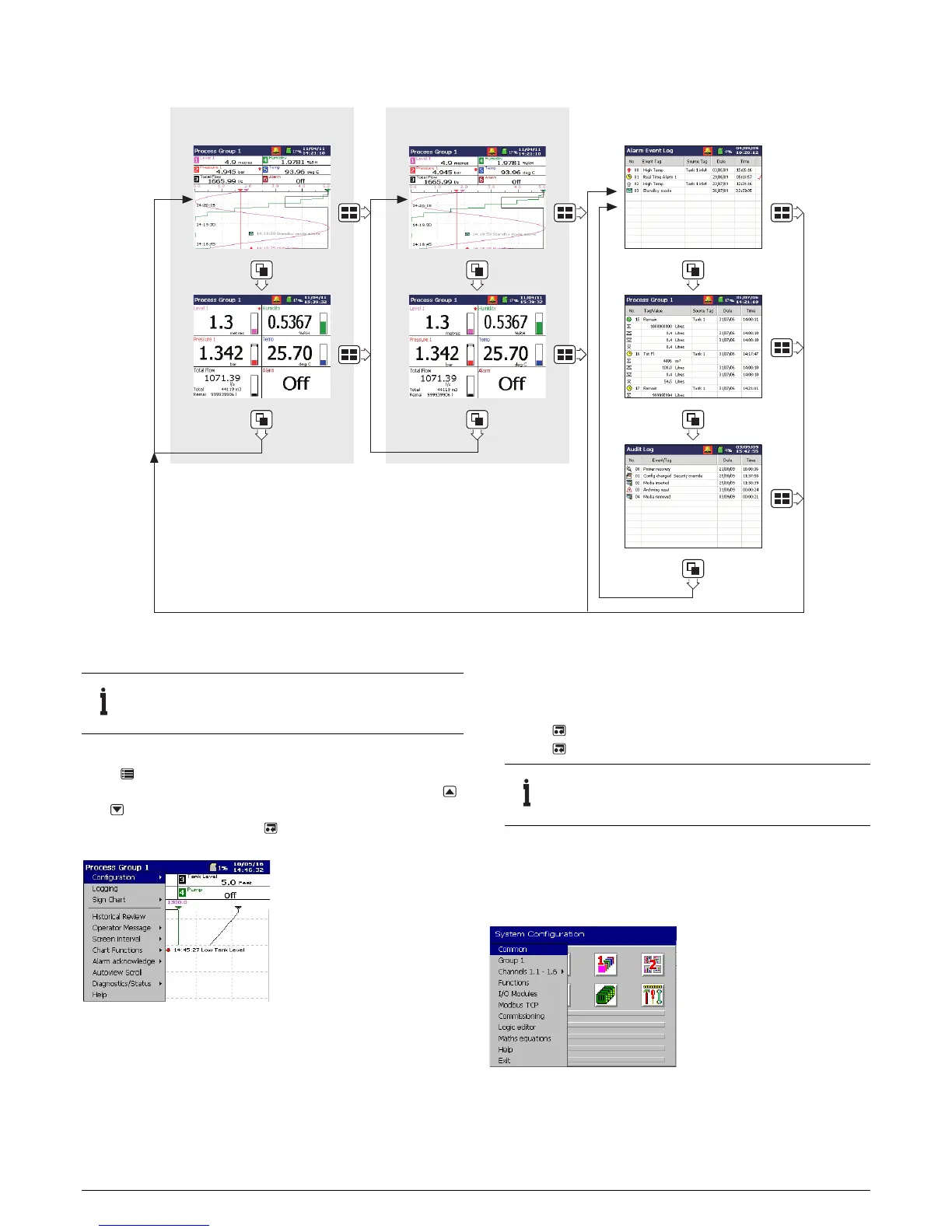

Fig. 12 Overview of operator displays
Process group 1
(recording channels 1.1 to 1.6)
Process group 2
(recording channels 2.1 to 2.6)
IMPORTANT (NOTE) Only process groups and views
that are enabled are displayed.
IMPORTANT (NOTE) If the recorder is being used
for the first time, a password is not set.
