ABB SM500F Commissioning Instructions

6 CI/SM500F–EN Rev. A
Pipe-mounting (optional)
Referring to Fig. 5:
1. Fit two M6 x 50 mm long hexagon-head screws A
through one clamp plate as shown.
2. Using the appropriate holes to suit vertical or horizontal
pipe, secure the clamp plate to the pipe-mounting bracket
using two M6 x 8 mm long hexagon-head screws B and
two spring lock washers C.
3. Position the pipe mounting bracket into the recesses on the
rear of the recorder as shown and secure with two bracket
securing screws D. Ensure the plastic washers remain in
the positions fitted.
4. Secure the recorder to the pipe using the remaining clamp
plate, spring lock washers and nuts E.

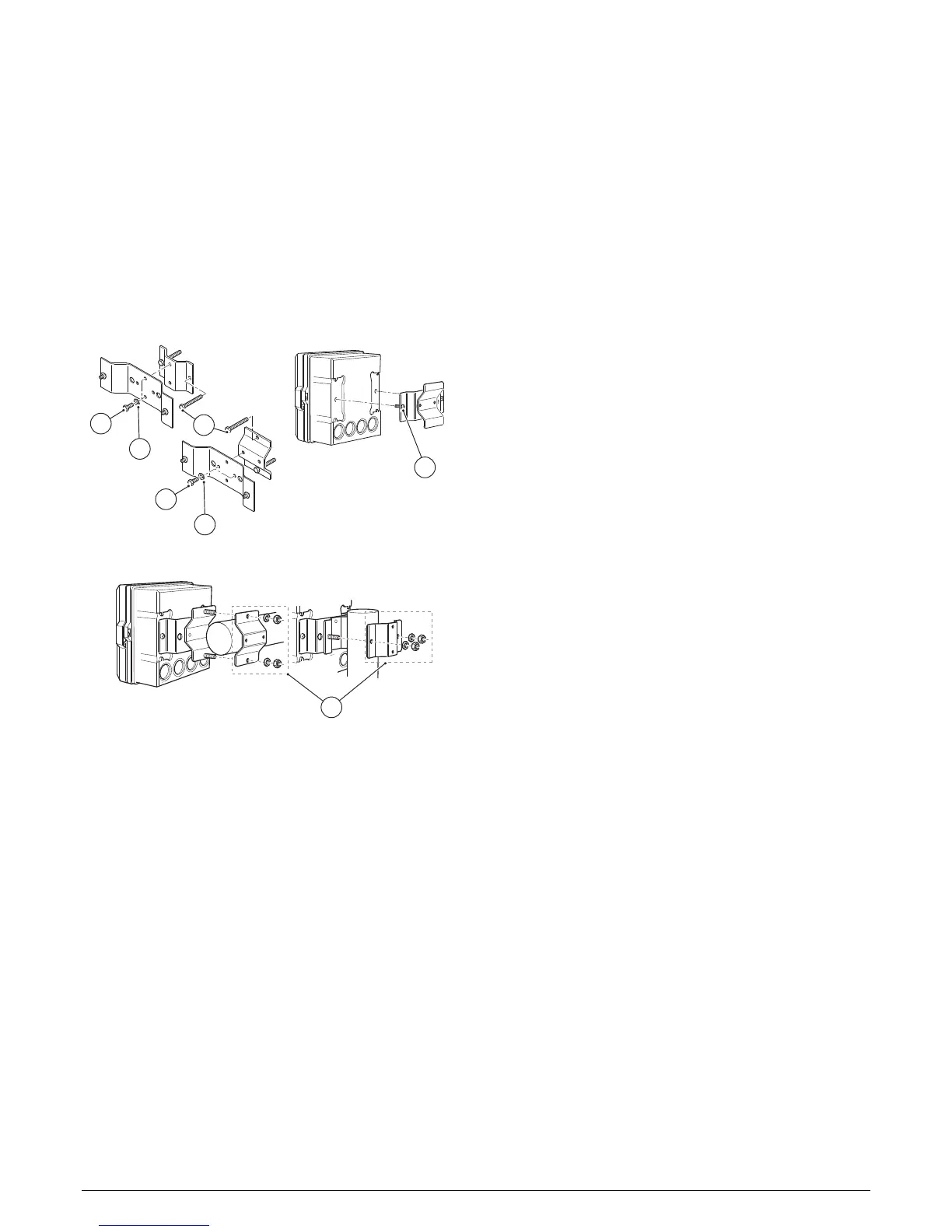

Fig. 5 Pipe-mounting
A
B
C
B
C
D
E
Vertical pipe
Horizontal pipe
