Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Dismantling and installing the turbine
diffuser and nozzle ring
8.6
Page 100
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
Dismantling and installing the turbine diffuser
and nozzle ring
8.6


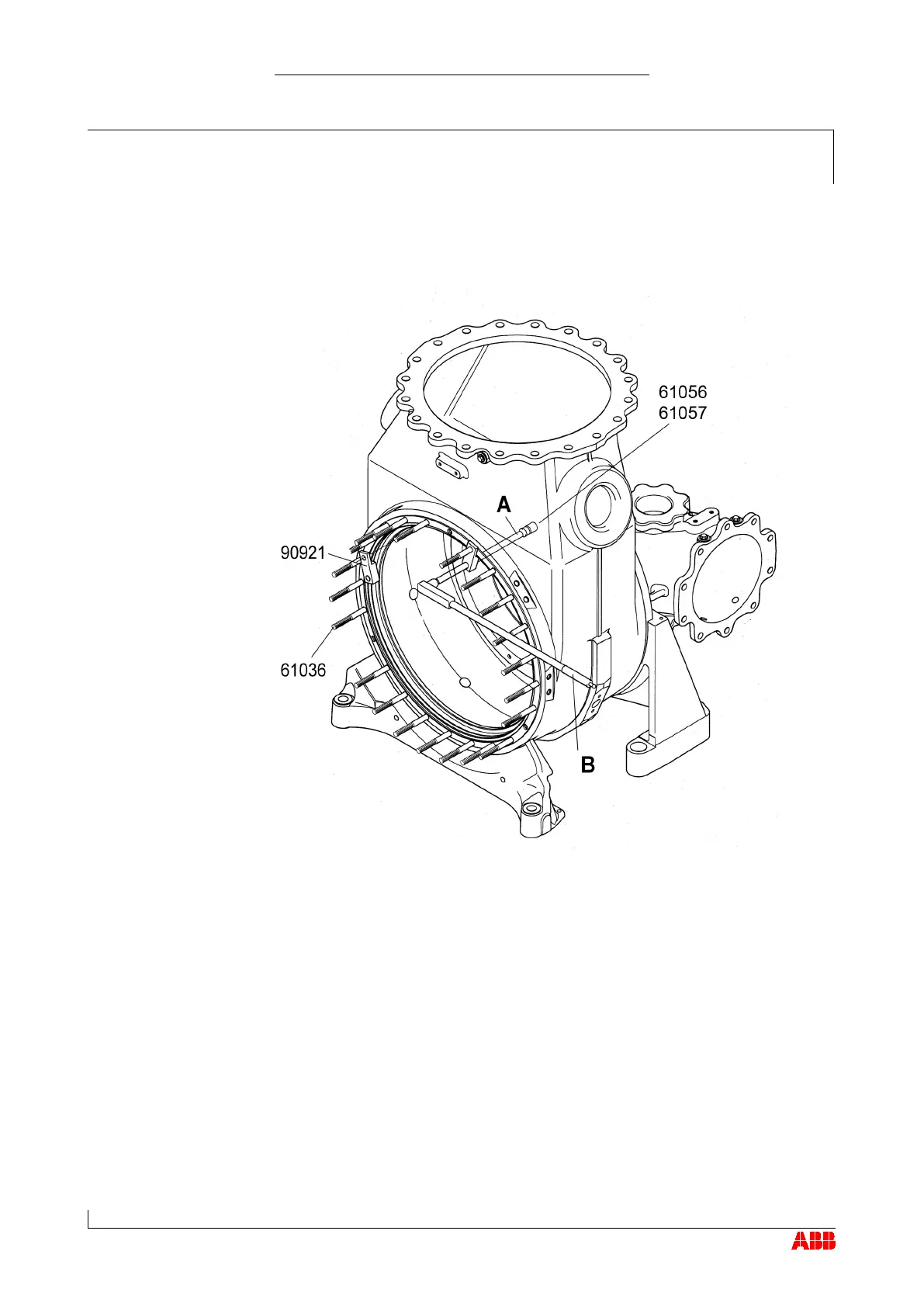

Put clamp (90921) over stud (61036) until it rests on inner radius of
gas outlet casing.
 Pass extension (
A
) of torque spanner (
B
) through hole in clamp and
only loosen screws (61056) one after other.
 Do not yet remove the screws (61056) and Verbus Ripp® washers
(61057).
8.6
Releasing the turbine
diffuser
