ABB T566609 - Page 122

Operation Manual / TPL67-C.. - TPL71-C..
Spare parts
12
Ordering spare parts
12.1
Page 120
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C

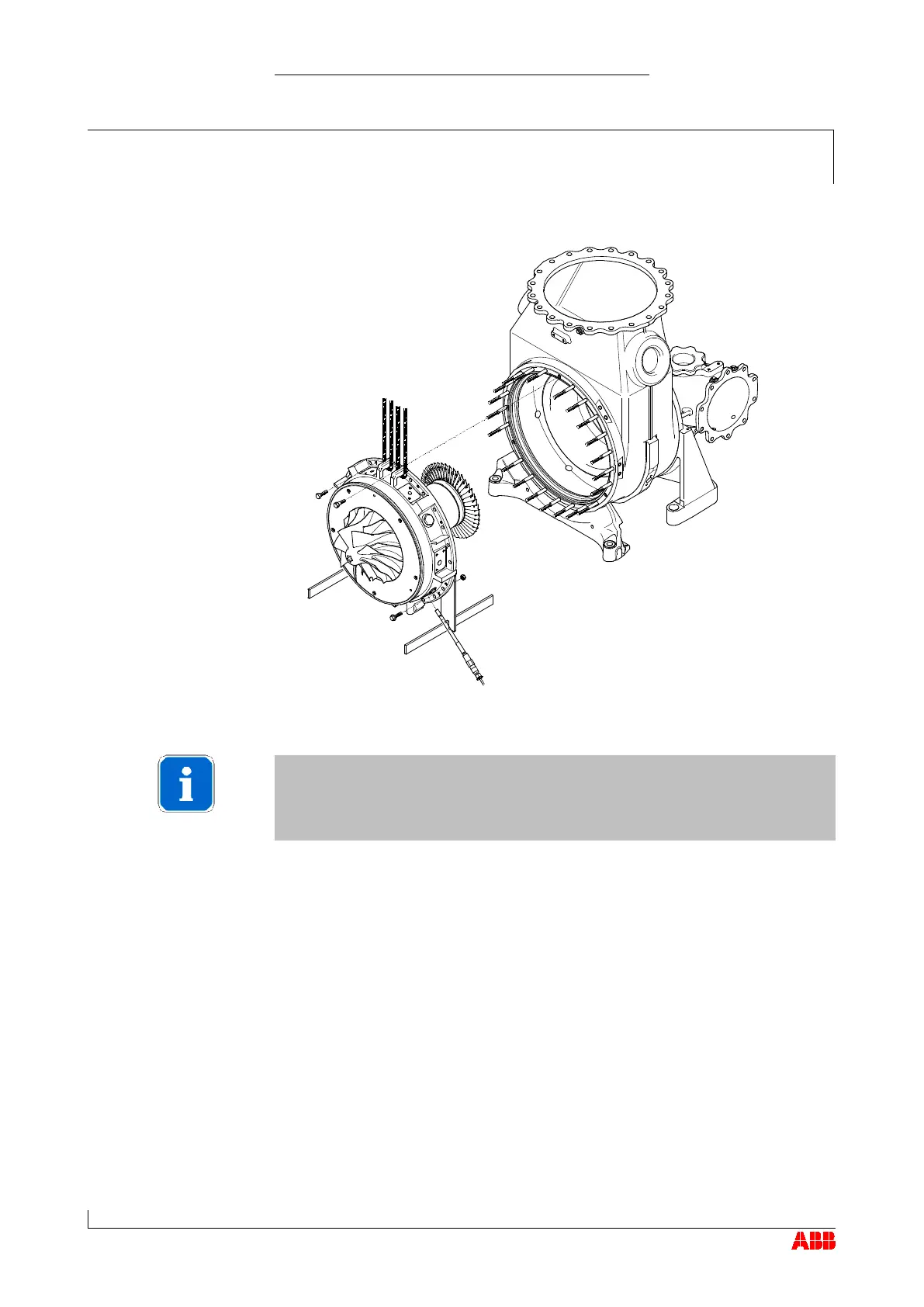

Quantity
Description
Part number
3 Hexagon-head screw 61059
1 Gasket 77005
1 O-ring (speed sensor) 86506
Spare parts set (97078) for turbine cleaning system (if provided)
CAUTION
Leaks
Improper assembly of the cleaning pipe and the nozzles can lead to
leaks and failure of the turbine cleaning system.
 Work on turbine cleaning system should be carried out only by an
ABB Turbocharging service station.
Quantity
Description
Part number
6
Locking plate
51255
3 Gasket 52200
2
Hexagon-head screw
52204
2 Hexagon-head screw 52205
3
Nozzle
52208
2 Hexagon-head screw 52257
Quantity
Description
Part number
4
Locking plate
51255
3 Gasket 52200
2
Hexagon-head screw
52204
2 Hexagon-head screw 52205
1
Nozzle
52208
1 Nozzle 52209
1
Nozzle
52210
2 Locking plate 52213
1
Hollow (banjo) screw
52219
2 Hexagon-head screw 52257
4
Verbus Ripp® Washer
52258
Axial gas inlet casing
Radial gas inlet casing
