Operation Manual / TPL67-C.. - TPL71-C..
Di
sassembly and assembly
8

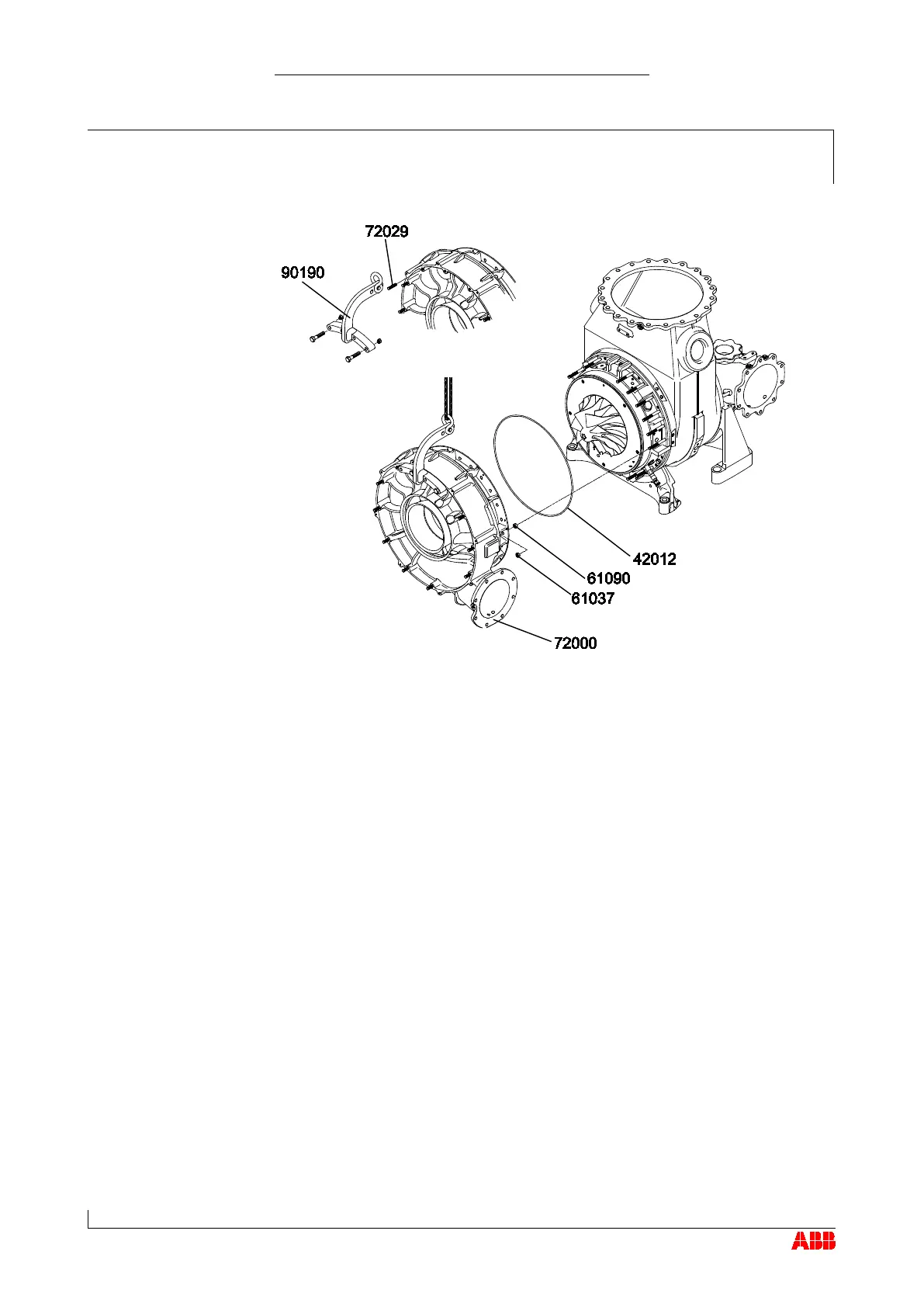

Installing cartridge group
8.7
Page 97
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C
 Measure and note the axial clearance (
A
) (see the section on axial
clearance).
CAUTION
If the axial clearance (A) is out of tolerance, an ABB Turbocharger ser-
vice station must be contacted.
 Connect oil lines and all air lines in accordance with engine builder’s
instructions.
Version with compressor wheel cooling system
 Fit the air supply line. (Also see the chapter Preliminary remarks /
Layout and functioning.)
 Fit the filter silencer or air suction branch.
 Fit the insulation.
