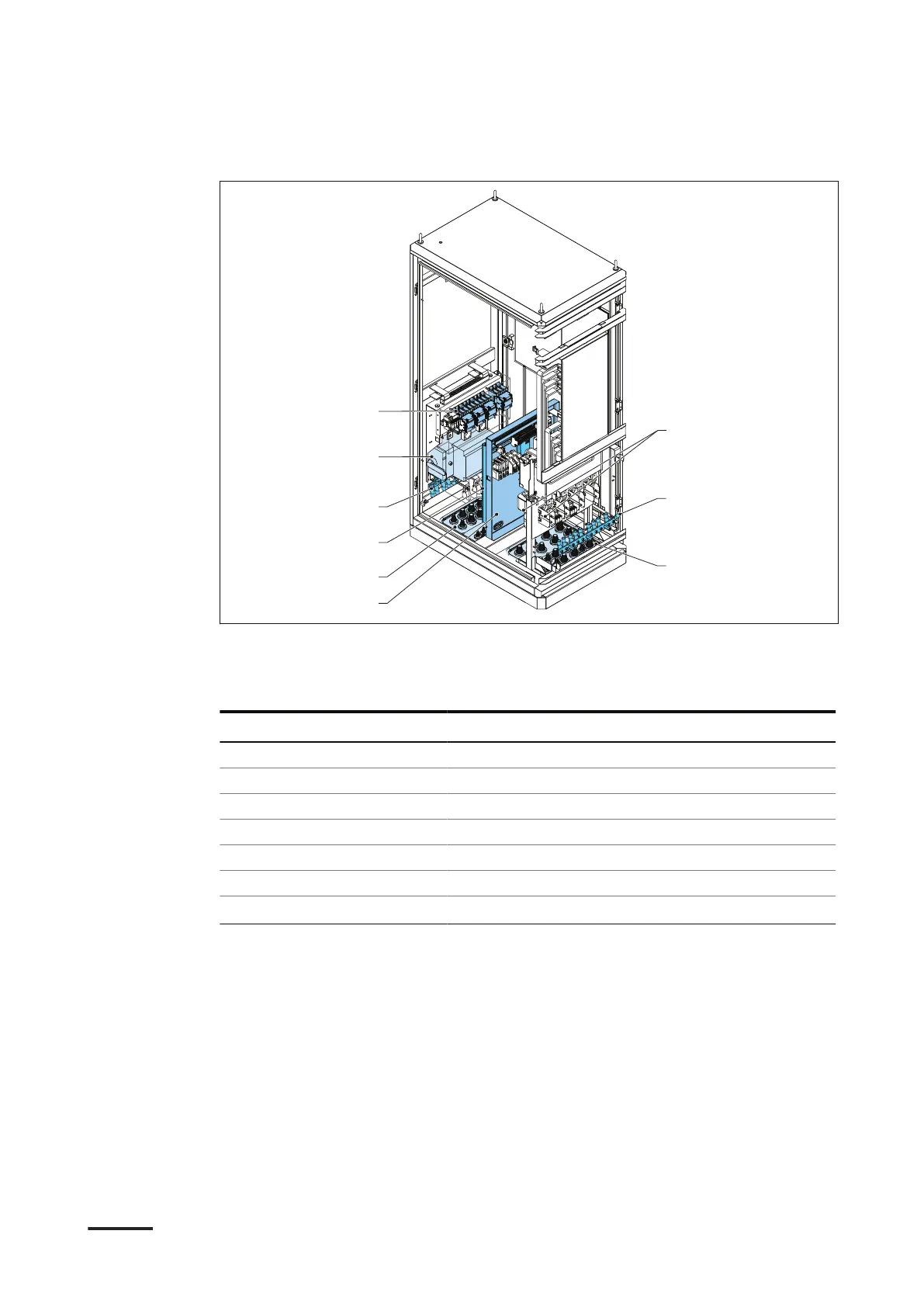

3.5.2 Power cabinet, inside
A AC contactor
B Main switch
C PE busbar
D AC plate
E Cable inlet
F DC plate
G DC output terminal block
Part Function
AC contactor To connect the AC power
Main switch To connect or disconnect the AC power
PE busbar To connect PE cables
AC plate To connect the AC and the precommissioning cables
Cable inlet Opening for the cables
DC plate To connect the interlock and LED cables
DC output terminal block To connect the DC output power cables
Description
6AGA000032-0115-EN | 004 21
A
B
C
E
D
F
C
E
G

ABB Terra HP Generation 4 CE Ionity Specifications

General

Brand	ABB
Model	Terra HP Generation 4 CE Ionity
Category	Battery Charger
Language	English
