6.3 Mechanical installation of the charge post
6.3.1 Install the charge post - general procedure
Preliminary requirements
• The charge post is above the foundation.
Warning: Make sure that you secure the load when you do work below
the charge post. Obey all related local regulations.
Note: The manufacturer installed the cooling unit at the factory,
including the cooling liquid.
Procedure
1. Get access to the charge post:
a. Remove the plinth covers of the charge post. Refer to section 10.7.
b. Open the door of the charge post. Refer to section 10.6.
c. Remove the protection plate of the charge post. Refer to section 10.8.
2. Remove the cable gland plates. Refer to section 6.3.2.
3. Guide the cables through the cable glands. Apply the full cable slack. Refer to
section 12.14.2.
4. Install the charge post on the foundation. Refer to section 6.3.3.
5. Install the cable gland plates. Refer to section 6.3.4
Installation
6AGA000032-0115-EN | 004 43
6. Close the charge post:
a. Install the protection plate of the charge post.
b. Close and lock the door of the charge post.
c. Install the plinth covers of the charge post.
7. Replace the eye bolts on the charge post with the caps. Refer to section 12.2.

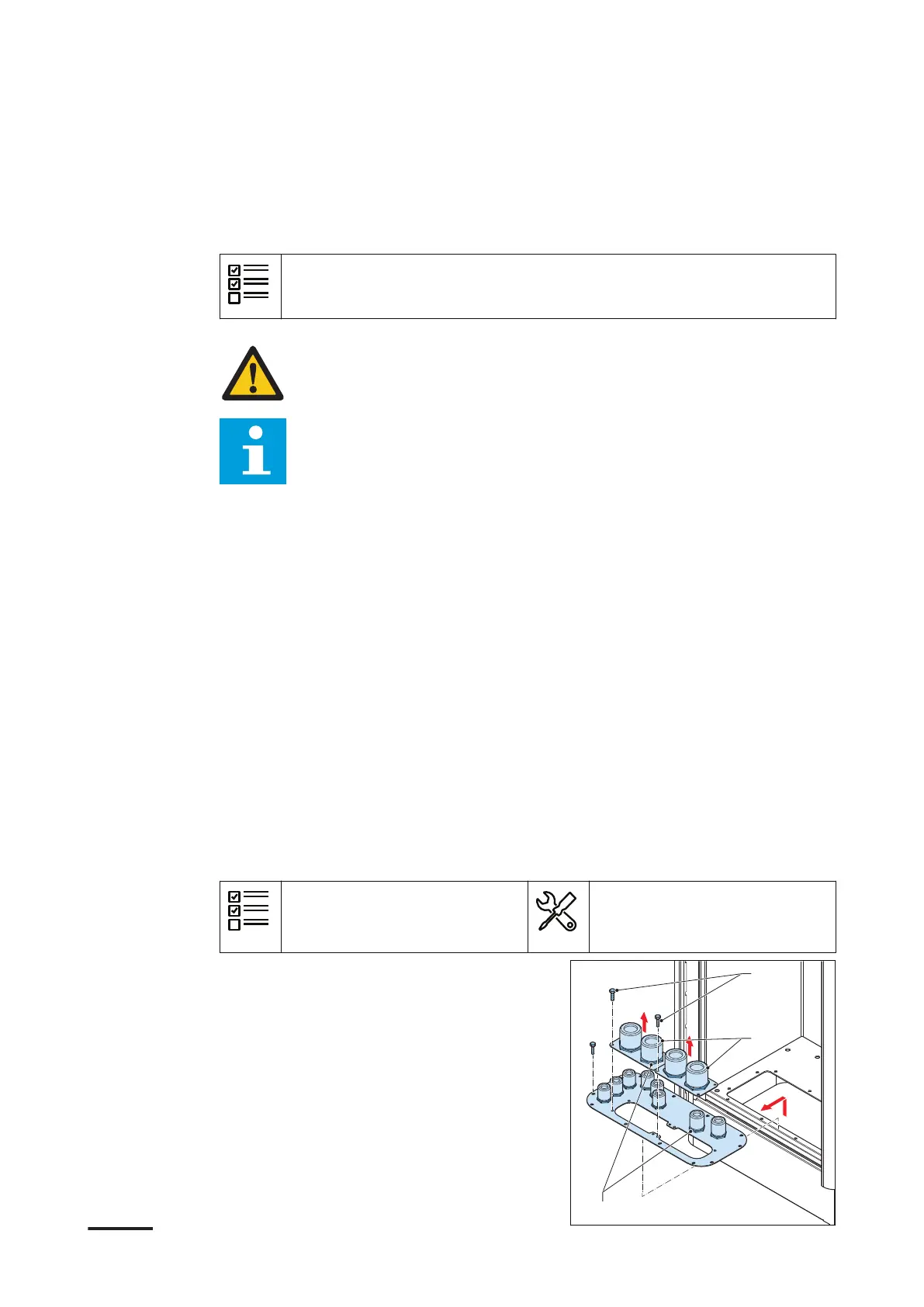

6.3.2 Remove the cable gland plates
Preliminary requirements
• The door is open.
• The protection cover is
removed.
• Screwdriver, cross
• Set of open spanners
Procedure
1. Remove these parts:
a. Fasteners (A)
b. Cable gland plates (B)
c. Nuts (C) of the cable glands
