ABB TPL-B Series User Manual

Operation Manual / TPL85-B14/-B15/-B16
Maintenance
5
Cleaning the filter silencer
5.2
Page 54
© Copyright 2016 ABB. All rights reserved.
May 2016 HZTL2491_EN Revision B

Hammer guide tube (03) free from peen fixing using a bolt
(diameter = 16 mm) and withdraw it.
Replace damaged parts of the complete cleaning pipe with original parts
from ABB Turbo Systems.

Refit guide tube (03) and peen fix it after putting insert units (E) in
place.
 Fit feed pipe (02) and screw onto injection pipe (01) using connector.

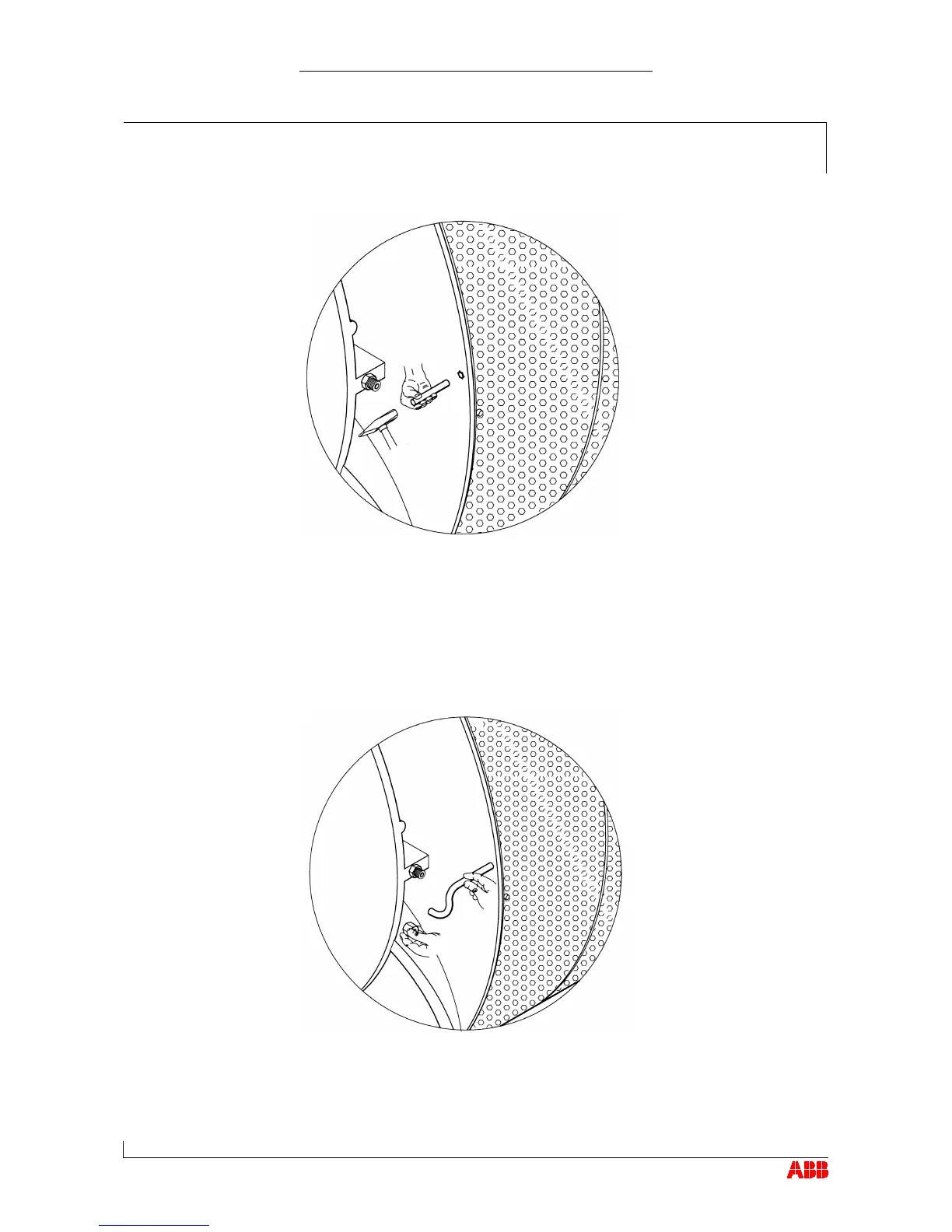

Punch out guide tube
Fitting complete cleaning
pipe
