Operation Manual / TPL85-B14/-B15/-B16

Maintenance

Cleaning the filter silencer

5.2

Page 53

May 2016 HZTL2491_EN Revision B

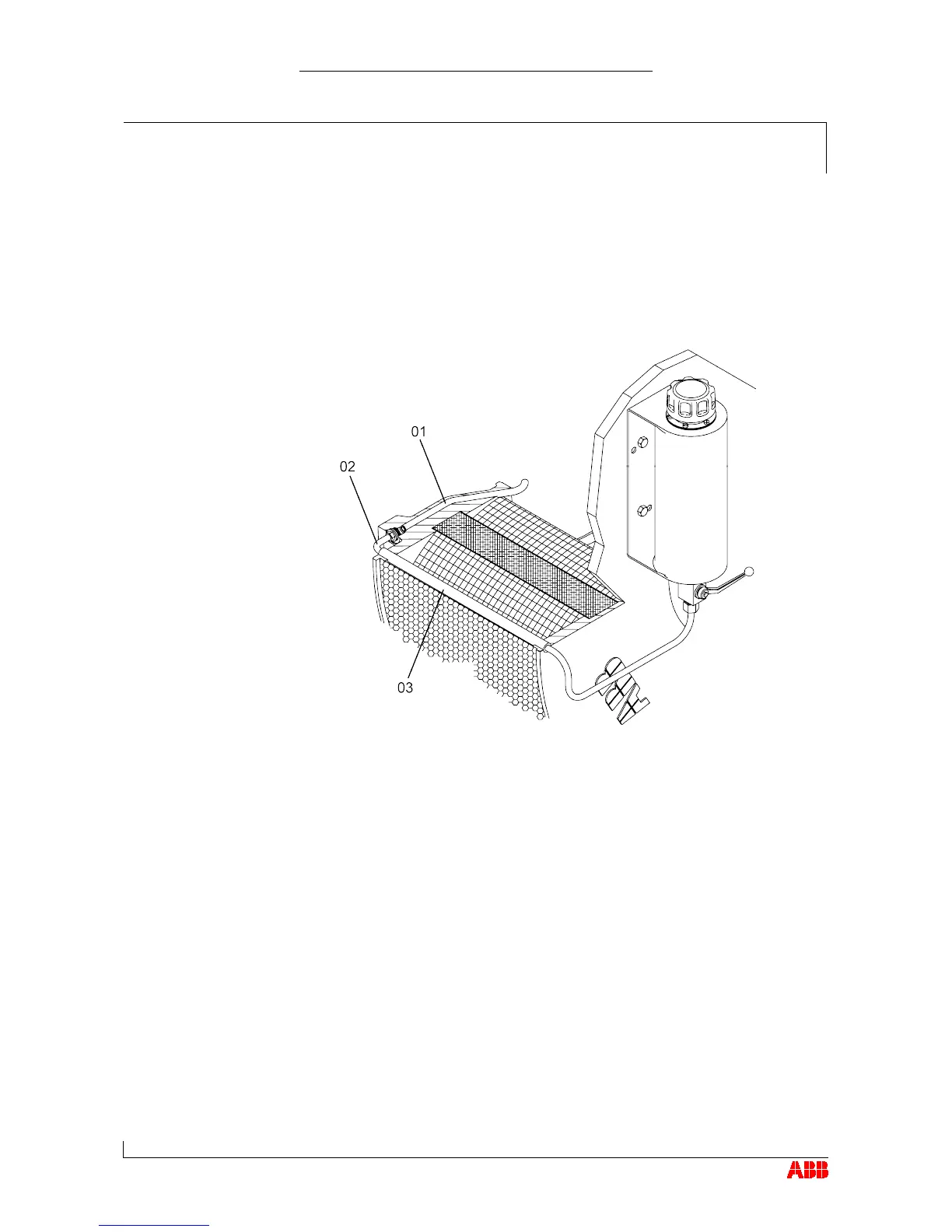

Removing / installing the cleaning line

Disassembling the cleaning pipe

 Disconnect feed pipe (02) from injection pipe (01) and remove pipe

connector from feed pipe.

 Withdraw feed pipe (02) from guide tube (03).

5.2.2
