Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
5 Maintenance / 5.2 Cleaning the filter silencer
© Copyright 2020 . All rights reserved. HZTL2481_EN Rev.D March 2020
5.2 Cleaning the filter silencer

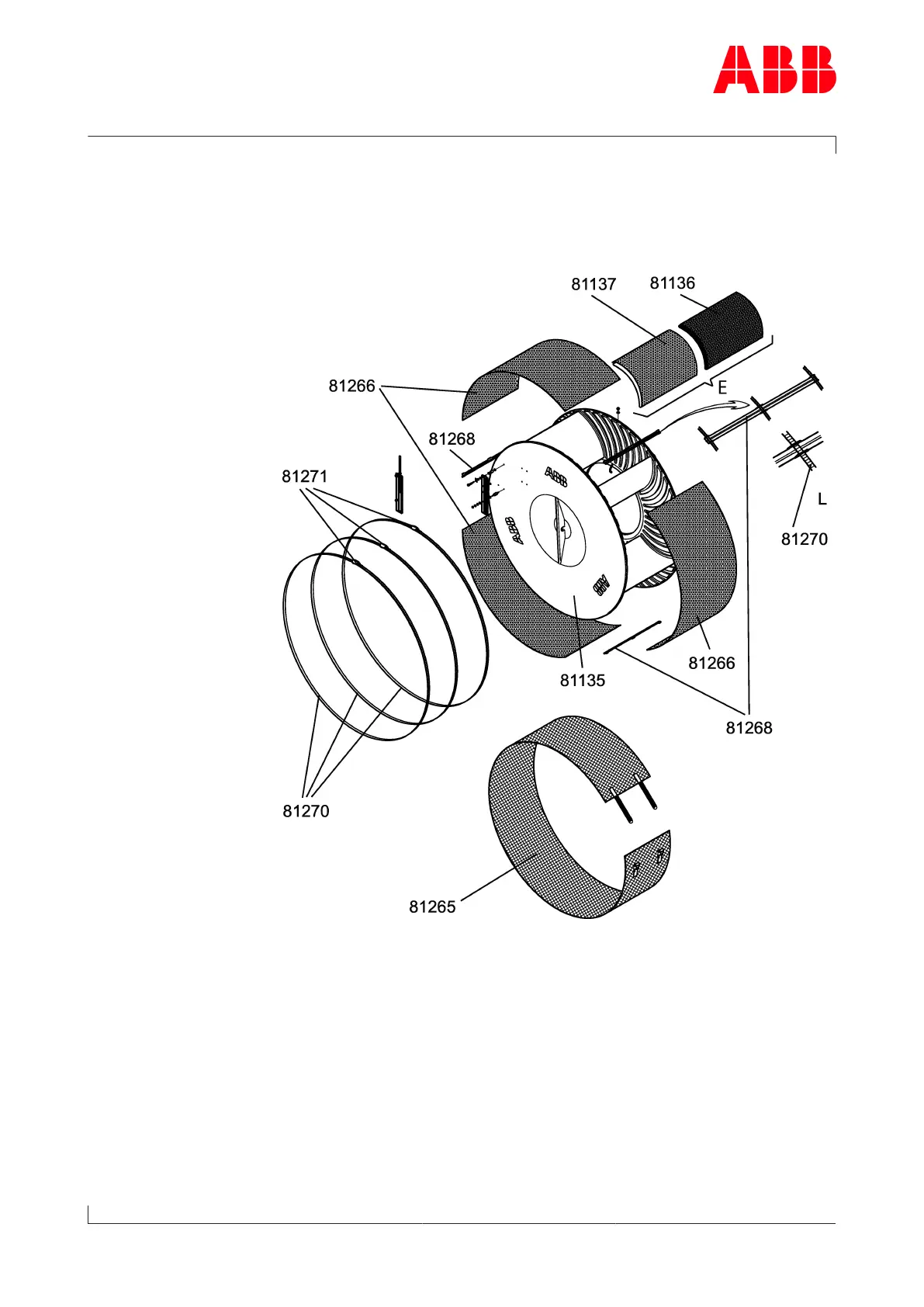

5.2.1 Filter silencer with tension band
81265Filter ring (if provided) 81266Cover grid
81270Tension band 81136Absorption segment
81271Lock 81137Sheet-metal covering
81268Connecting strip 81135Filter silencer body
EInsert unit = absorption segment + sheet-metal covering fitted
Page 46 / 134
