Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.3 Removing and fitting filter silencer
or air suction branch
© Copyright 2020 . All rights reserved. HZTL2481_EN Rev.D March 2020
8.3 Removing and fitting filter silencer or air
suction branch
u Disconnect all air lines / ducts in accordance with engine builder’s in-
structions.
u Remove insulation where necessary.

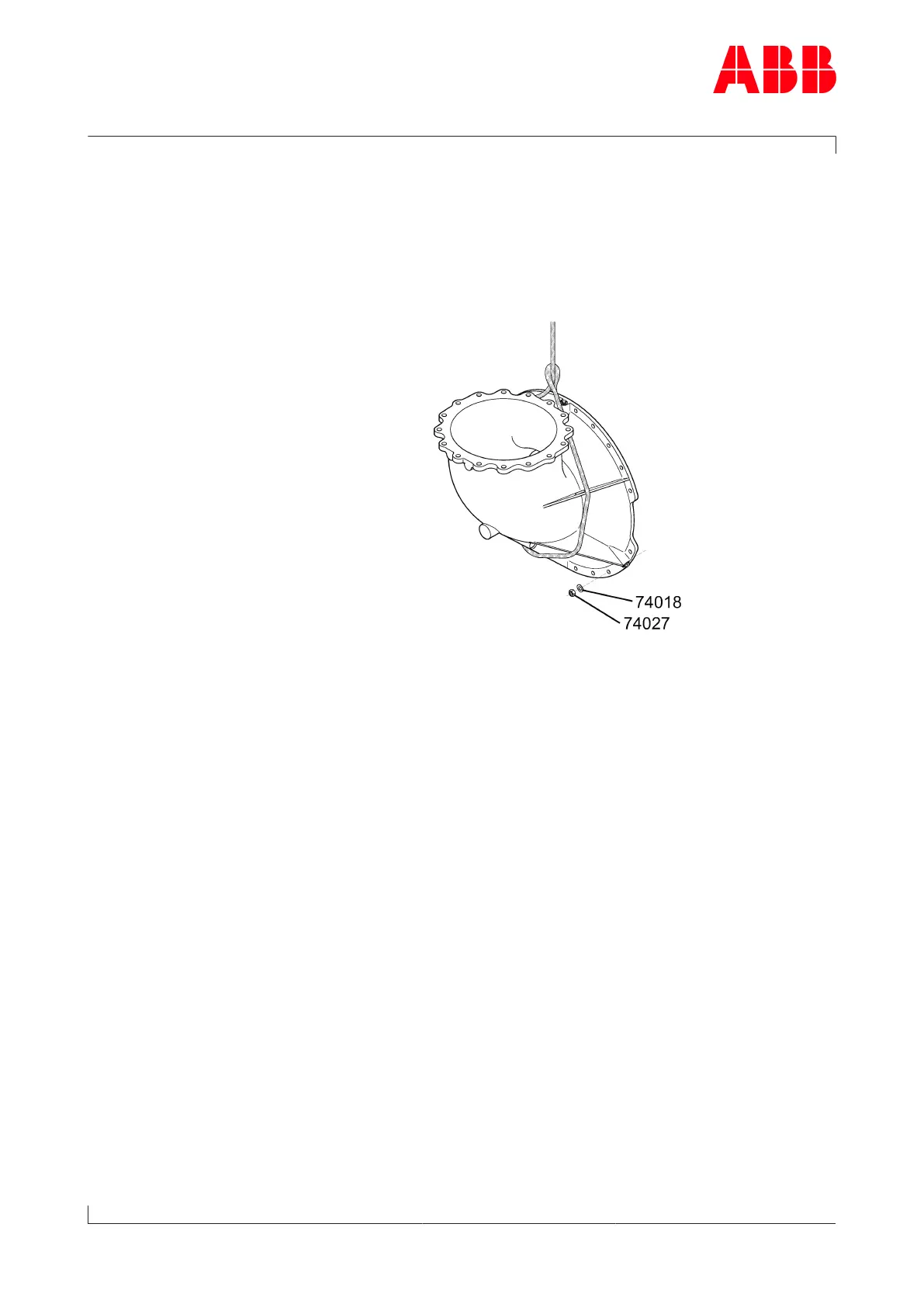

u Loop lifting gear around air suction branch. Pass lifting gear through
possibly provided holes in ribs to improve stability.
u Unscrew nuts (74027) and remove together with washers (74018).
u Remove air suction branch and set down to one side.
Install air suction branch.
u Install air suction branch in reverse order.
