14 Spare parts / 14.3 Spare part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021

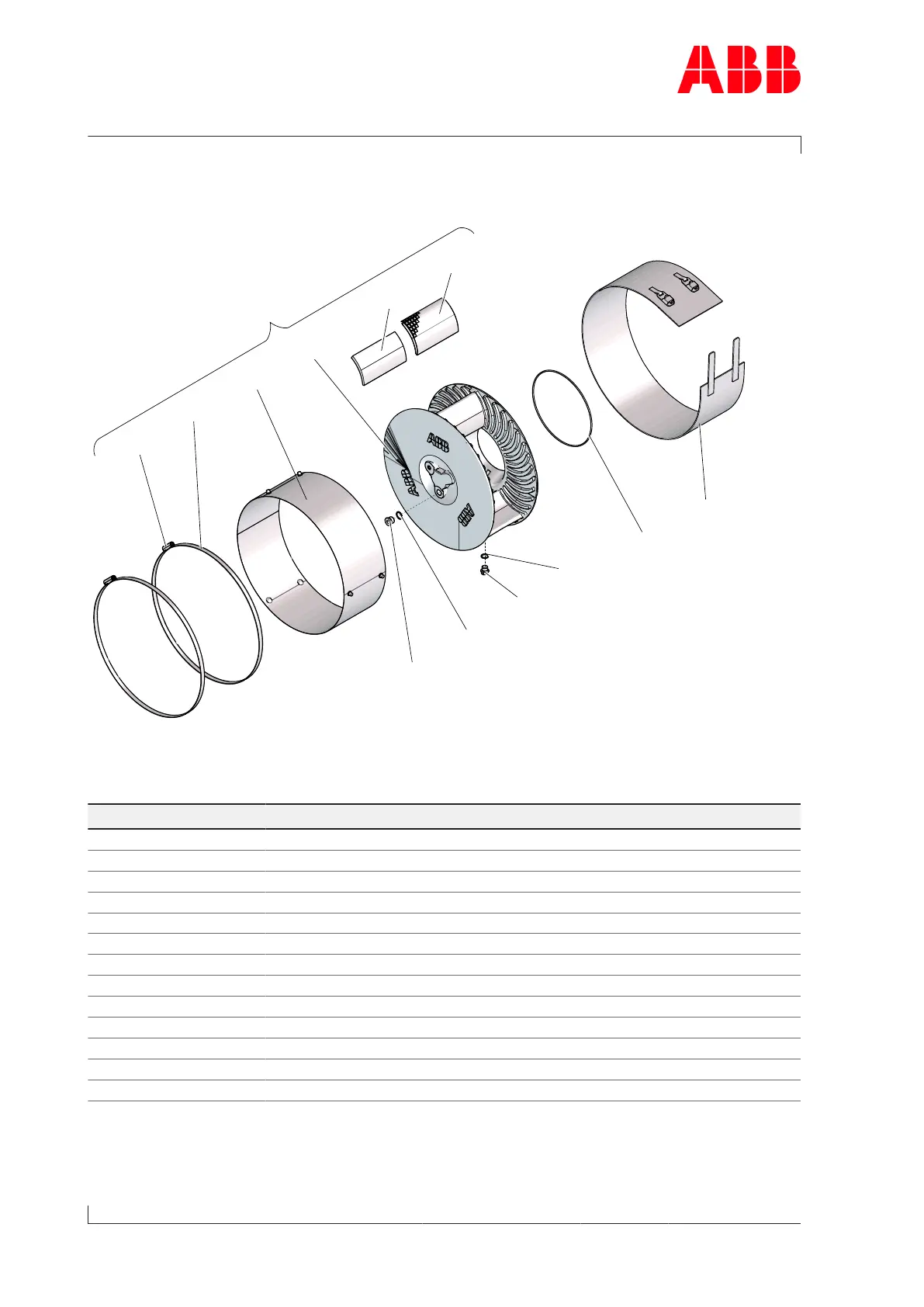

Filter silencer
81006(p)
81265**
81137
81136
81005(p)
81010*
81135
81000
81171(p)
81170(p)
81266
81271
81270
* = Available within the spare part set HZTL443011 Mod. F
(p) = pre-assembled
** = if provided
Part no. Designation
81000 Filter silencer complete
81005(p) Screw plugt
81006(p) Gasket
81010* O-ring
81135 Silencer body
81136 Absorption sgment
81137 Sheet-metal covering
81170(p) Screw plug
81171(p) Gasket
81265** Filter ring
81266 Cover grid
81270 Tension band
81271 Lock
Table50: Spare parts - Filter silencer
