Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.12 Installing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
10.12 Installing the cartridge group
Lifting the cartridge group and rotating it by 90°

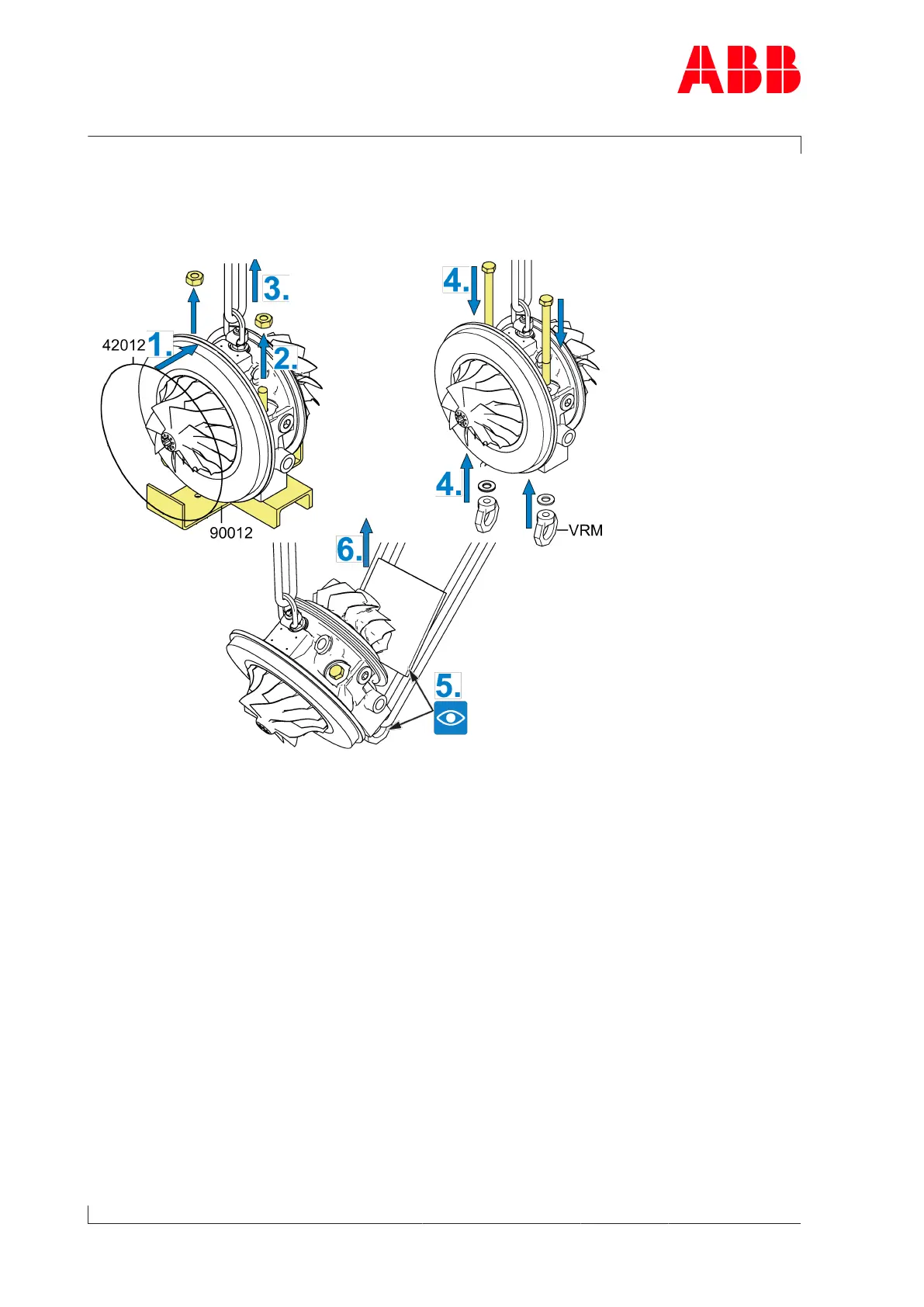

Fig.39: Lifting the cartridge group and rotating it by 90°
1. Fit a new, high temperature-resisting O-ring (42012, red or green) (see Customer spare
part set (97070) →98).
2. Loosen and remove nuts.
3. Lift the cartridge group out of the service support(90012).
4. Insert the screws of the service support from above and fit ring nuts(VRM) with washers.
5. Attach lifting gear to the ring nuts(VRM).
6. Lift cartridge group at the side of the ring nuts(VRM) and turn it into a vertical position
(compressor wheel facing downwards). Use edge guard between turbines and lifting
gear.
Page 84 / 111
