10.14 Fitting the turbine casing

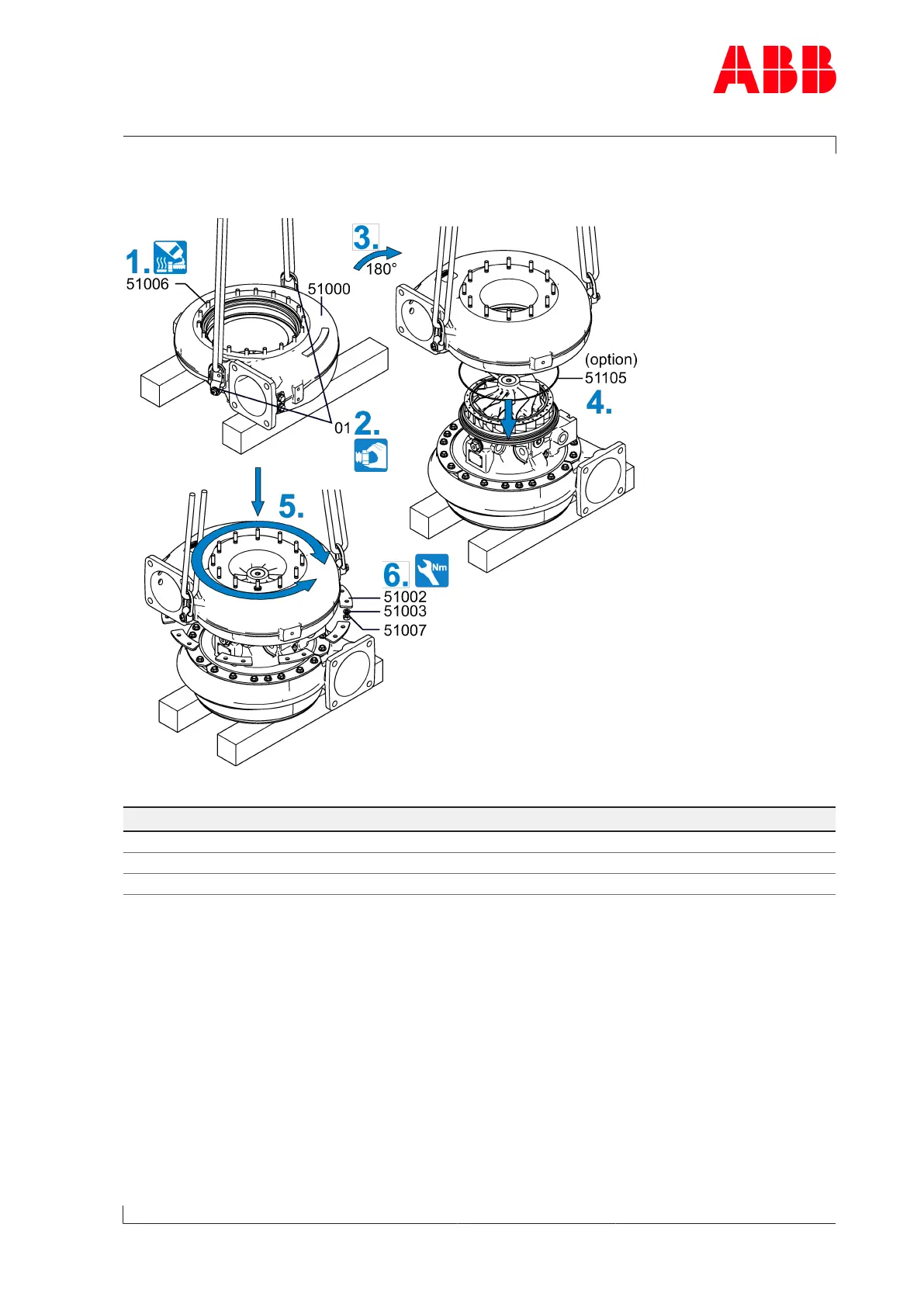

Fig.42: Fitting the turbine casing
Product Size Tightening torque [Nm]
TPS44 M8 30Nm
TPS48 M8 30Nm
TPS52 M10 60Nm
Table39: Tightening torque (51007)
1. Coat thread of studs(51006) with high-temperature grease.
2. Fit two swivel lifting eyes(01) on the turbine casing(51000). Secure lifting gear to the
swivel lifting eyes.
3. Turn the turbine casing(51000) by 180°.
4. If present: Fit the metal C-ring(51105).
5. Align turbine casing with marking and position on cartridge group.
6. Fit fastening strips(51002) with Verbus Ripp® washers(51003) and hexagon
nuts(51007). Observe tightening torque.
