ABB TPS48-F Series User Manual

Operation Manual / TPS44-F.. - TPS61-F..
9 Taking out of operation / 9.1 Shutting down the turbocharger
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

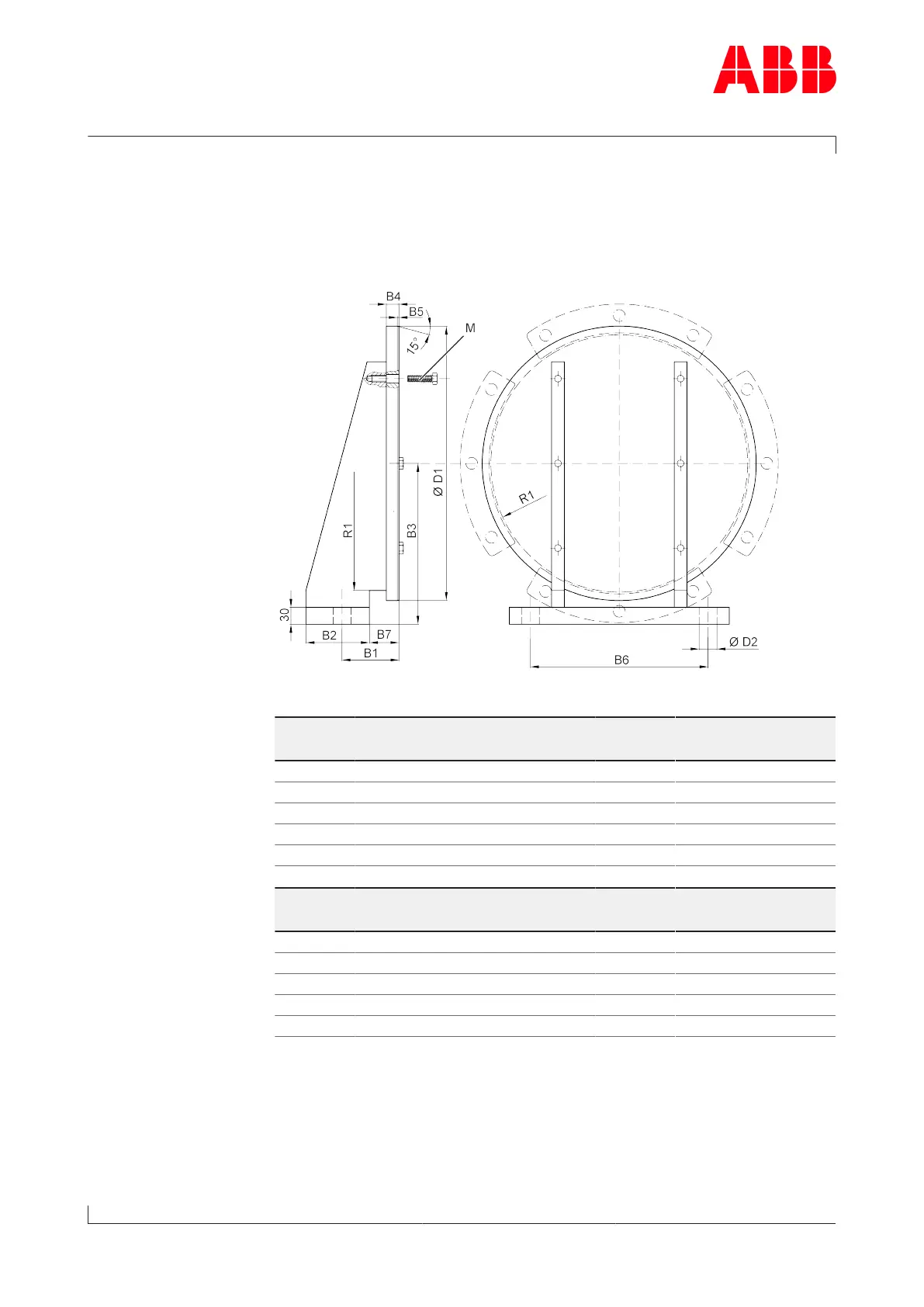

Cover plate drawing
The cover is not included in the scope of delivery of ABB and must be
manufactured by the operator according to the following drawing.
Material: Common structural steel, in compliance with DINEN10025-2
Product B1
±0.5
B2 B3 B4
±0.2
B5 B6
TPS44 62.6 54 110 11.0 1 144
TPS48 65.7 60 130 11.7 1.5 150
TPS52 79.6 78 155 14.2 1.5 180
TPS57 98.2 100 190 17.2 2 220
TPS61 116.8 120 226 20.5 2.4 260
Product B7 ØD1
±0.2
ØD1*
±0.2
ØD2 R1 M
TPS44 191.3 191.3 17 ≤88 M8
TPS48 35.7 222.7 227.7 17 ≤105 M8
TPS52 39.6 265.7 271.7 21 ≤125 M8
TPS57 48.2 325.7 332.5 21 ≤153 M10
TPS61 56.8 387.7 395.9 25 ≤182 M10
Dimensions in [mm]
Page 103 / 113
