TPU2000/2000R Modbus/Modbus Plus/ Modbus TCP/IP Automation Guide
176
Operation Records
Operation records can be extracted from the TPU2000R by using a standard web browser from Netscape or Internet Explorer
Version 5.0 from Microsoft, from an initiated FTP session. The format is a standard text file listing the time and dates for of
each Operation recorded in the relay.
If the OPERREC file is selected via the browser, an additional Operation record file tree will be visible. The extension of the
file is *. opr. An example Operation record file retrieved from the Ethernet card is visible in FIGURE 5-63g. If the file is
uploaded from the IED and displayed via a text reader utility such as WORDPAD, its contents would be viewable as
illustrated in FIGURE 5-63h.

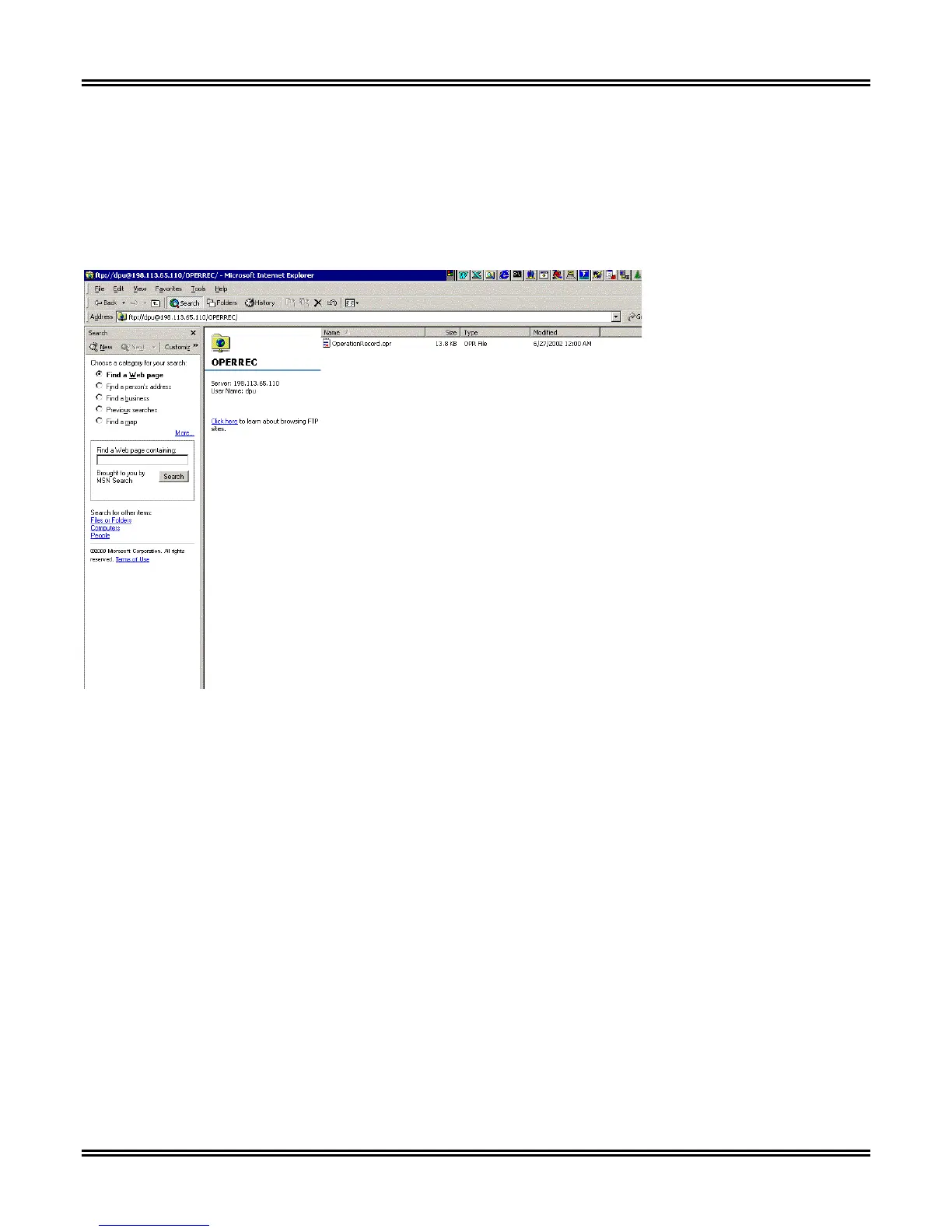

FIGURE 5-63g: OPERATION RECORD FILE ARCHIVAL
