TPU2000/2000R Modbus/Modbus Plus/ Modbus TCP/IP Automation Guide
24
Figure 4-3. COM Port 1 WinECP Setting Screen
COM Port 2 Option Settings (TPU2000R Only) [Catalog 588 XXXX0-XXX0 or 588 XXXX6-
XXX4]
There are two option boards, which enable communication port 2 for the TPU2000R. Figure 4-4 illustrates the
configuration screen for the COM PORT 2 options when viewed on WinECP.

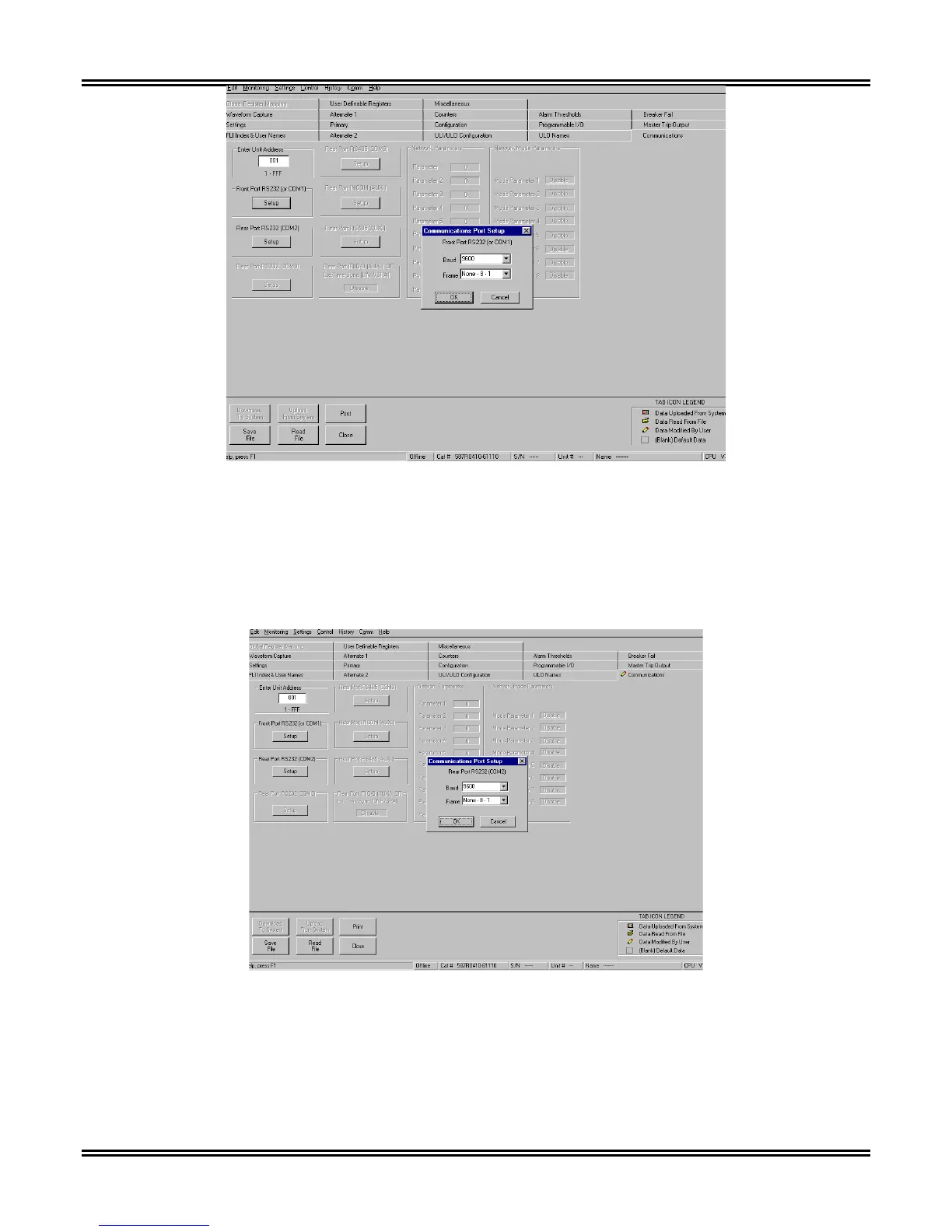

Figure 4-4. WinECP COM Port 2 Communication Screen
The options for configuration are listed in Table 4-3.
