TPU2000/2000R Modbus/Modbus Plus Automation Guide
363

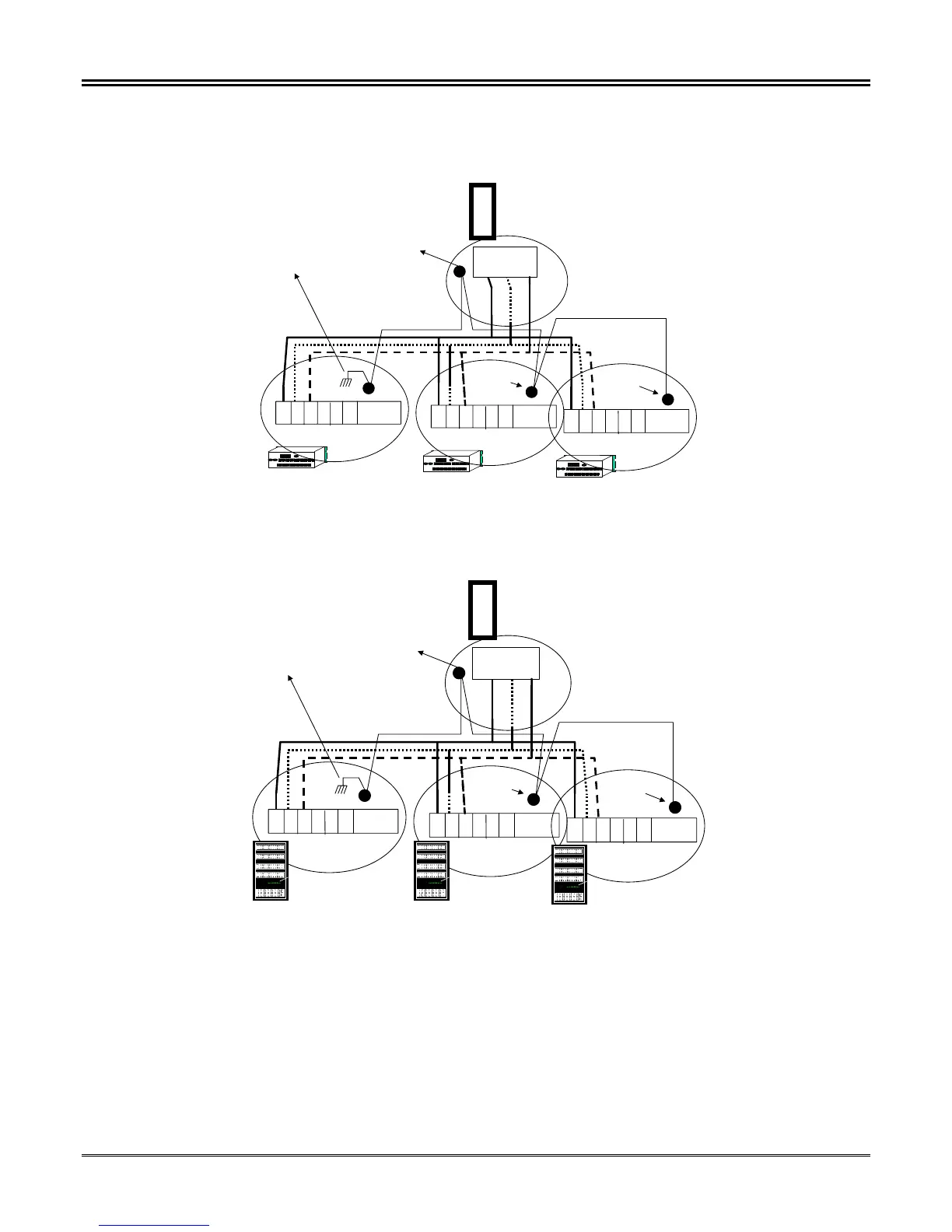

Figures 8 and 9 illustrate the individual conductor connectivity for attaching the ABB protective relays in the
DPU/TPU/2000 and the DPU/TPU/GPU 2000R. It is important to note that Figures 8 and 9 illustrate only the
attachment of each device terminal. EACH NODE MUST BE DAISY-CHAINED AS ILLUSTRATED IN FIGURES
4 THROUGH 7.
3
55 56 57 58 59 60 61 -----
RS 485 Isolated Port
Shield is
isolated
Shield is Frame Grounded
at one point
3
55 56 57 58 59 60 61 -----
RS 485 Isolated Port
3
55 56 57 58 59 60 61 -----
RS 485 Isolated Port
End Unit Inline Unit End Unit
Shield
Isolated
Shield is
isolated
Cable “B” RS 485 Connection
*See
Note
*Note - Reference the Topology Drawing for
Termination configuration if
internal or external termination
is selected.
TELEBYTE 245 RS 232/ RS422/485
Pin Pin Pin
2 14 7
Figure 8 – Conductor Connectivity Diagram For The 2000R Products And The Telebyte
Converter “Inline”
74 73 72 71 70 69 68 -----
RS 485 Isolated Port
Shield is
isolated
Shield is Frame Grounded
at one point
74 73 72 71 70 69 68 -----
RS 485 Isolated Port
74 73 72 71 70 69 68 -----
RS 485 Isolated Port
Shield
Isolated
Shield is
isolated
Cable “B” RS 485 Connection
*See
Note
*Note - Reference the Topology Drawing for
Termination configuration if
internal or external termination
is selected.
Pin Pin Pin
2 14 7
TELEBYTE 245 RS 232/ RS422/485
Figure 9 - Conductor Connectivity Diagram For The DPU/TPU 2000 Products
If an ABB relay uses a TYPE 8 card, COM PORT 3 is actually an RS 485 port presented in a DB 9 format. The
Pin designation is presented in Table 1 and lists the cross listing for the AUX COM connector present on the
2000R product and 2000-product line. As illustrated in Figures 7 and 8, the AUX COM PORT connections are
given. If one is installing RS 485 on a TYPE 8 card, both the AUX COM PORT and COM 3 have RS 485
connectivity available.
