ABB UniGear ZS3.2 User Manual

TECHNICAL DATA 7
—

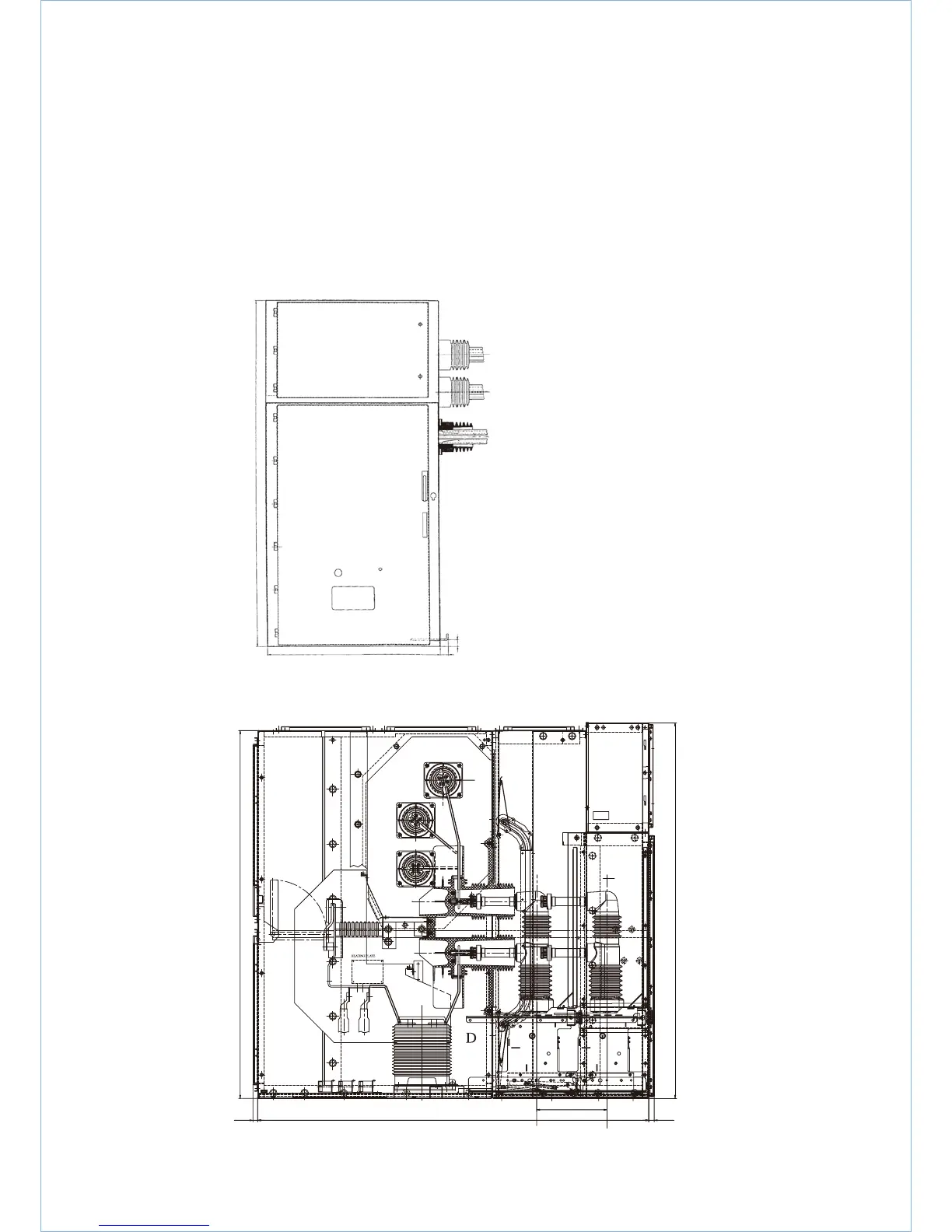

2/1 Dimensions,
without ventilation,
front view
—
2/2 Dimension,
UniGear ZS3.2,
…1600 A, section
view
C
D
R(L1)
Y(L2)
B(L3)
Service
Position
Test
Position
2350
30 2500 35
450
2400
A B
2400
1200
55
47
A Circuit-breaker compartment
B Low-voltage compartment
C Busbar compartment
D Cable connection compartment
—
2/1
—
2/2

ABB UniGear ZS3.2 Specifications

General

Brand	ABB
Model	UniGear ZS3.2
Category	Industrial Electrical
Language	English
