Section 2 WGA631 overview
2.1 Overview
WGA631 is a waveguide access point which is used to connect IEDs over the TCP/
IP network by using the same Ethernet link.
• LAN/WLAN connectivity with IEC 61850-8-1 protocol for IEDs with an
RJ-45 LAN interface
• Auxiliary power supply
• Disturbance recorder file upload via IEC 61850
• Configuration via the serial interface, TCP/IP-based Telnet connection or the
Windows-based WINBOX configuration tool.
GUID-C48CAC36-B292-45D5-ACAB-CF4463CD08CA V1 EN

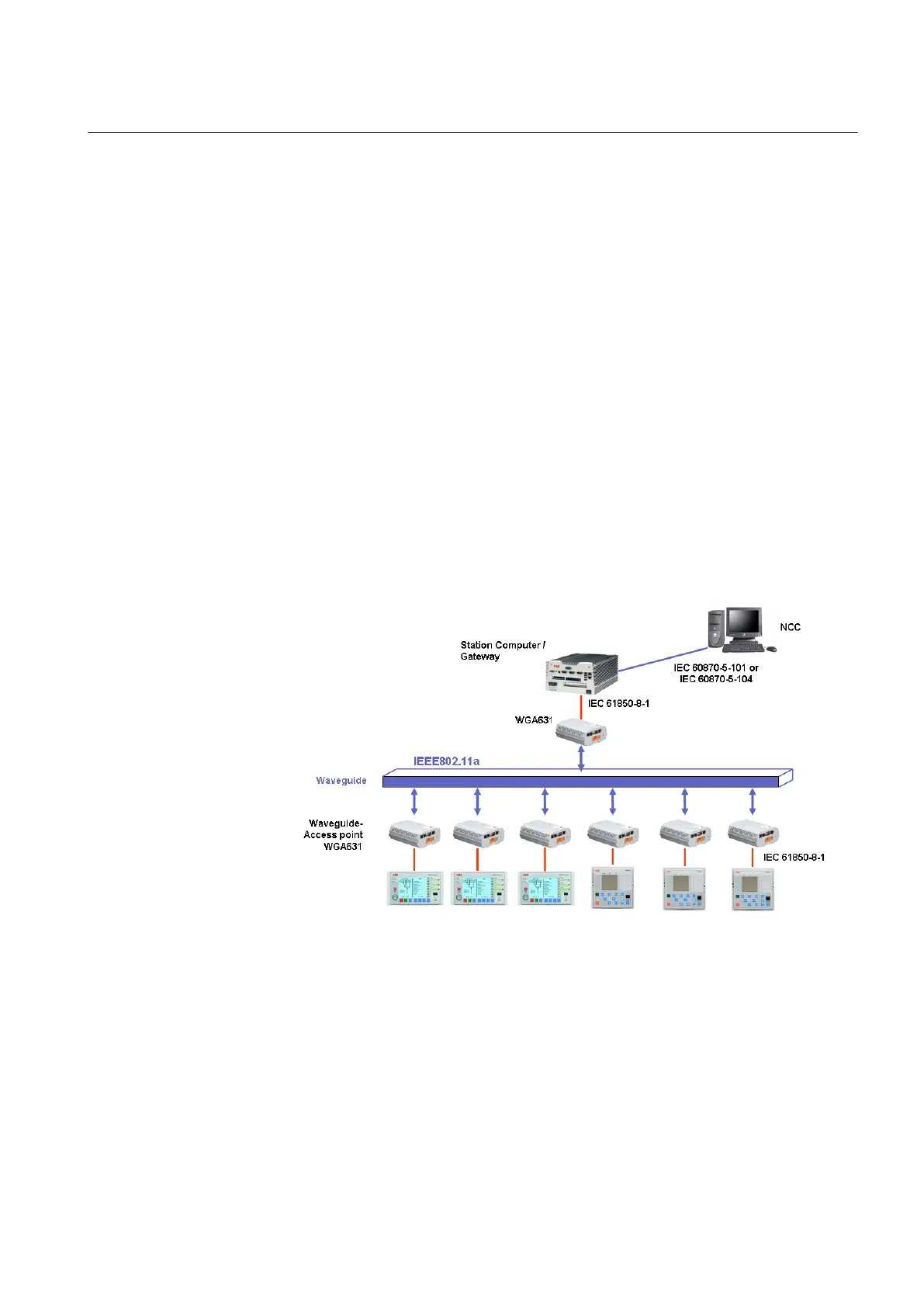

Figure 1: Example of a typical system setup
1MRS755551 B Section 2
WGA631 overview
WGA631 5
Installation and commissioning manual
