WaveGuide tube 1
WaveGuide tube 2
Z
GUID-857C161E-3F74-4EF7-9B2B-C45351AA1D10 V1 EN

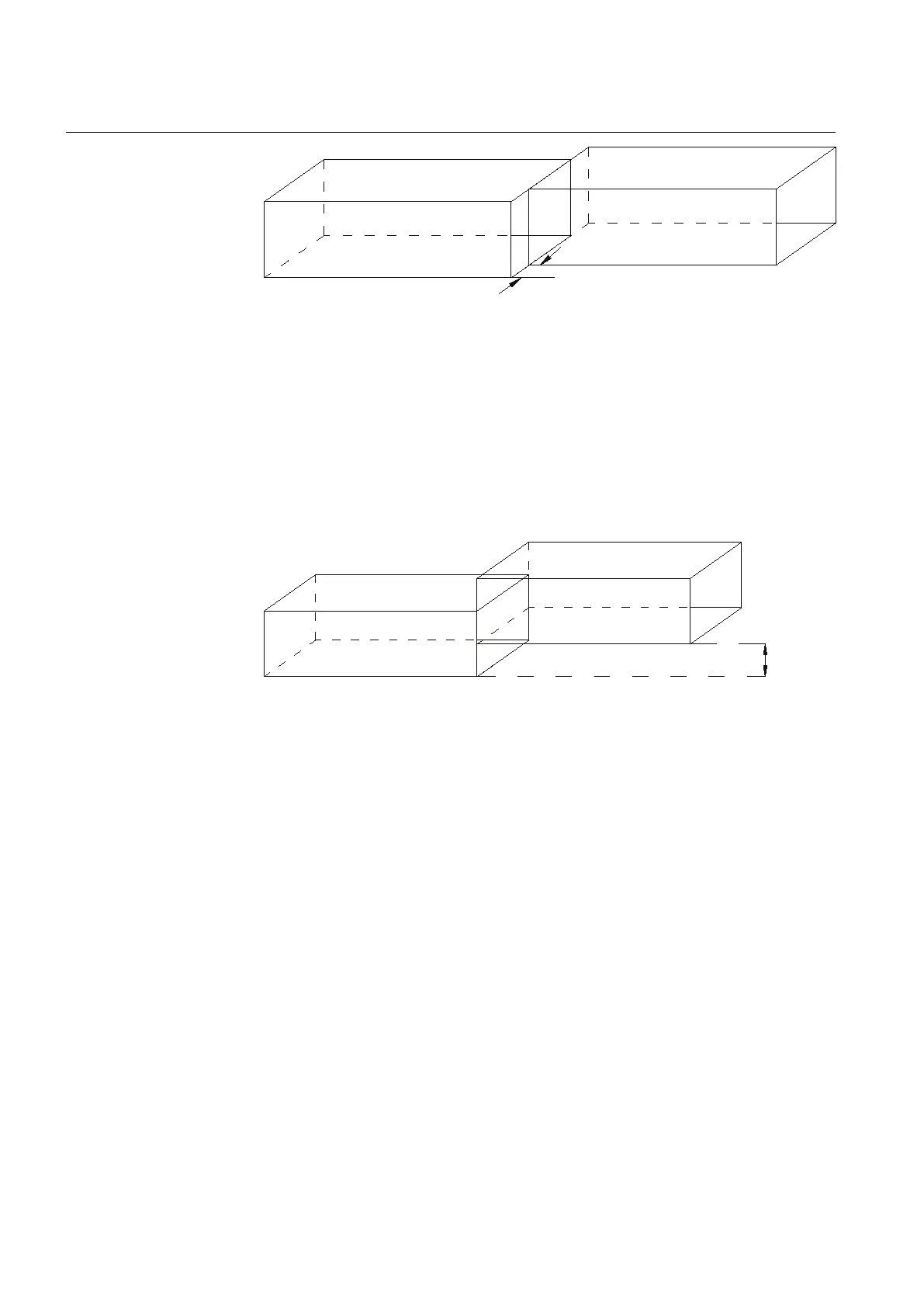

Figure 5: Horizontal displacement
3.2 Vertical displacement
The wireless communication system works properly with the vertical displacement
of Y < 5 mm between the waveguide tubes. Larger offsets are not allowed because
the transmitting power should be limited to 0 dBm.
WaveGuide tube 1
WaveGuide tube 2
Y
GUID-73057DC6-424C-473D-8A00-5DEB0BBE34A5 V1 EN
Figure 6: Vertical displacement
3.3 Angle-related displacement
The wireless communication system works properly with the angle displacement of
< 10° between the two waveguide sections. Larger angles are not allowed because
the transmitting power should be limited to 0 dBm.
Section 3 1MRS755551 B
Mounting requirements
12 WGA631
Installation and commissioning manual
