Notes:
1. Pin height should be set to manage a proper body hook. Refer to your double seam guide for the proper height
(provided by the can manufacturer).
2. Variance should not be more than .003”
3. Grooved lifer plate should be .010” lower than specification
4. Do not over-grease rollers
a. Over-greasing may lead to deadhead
b. Use Kluber nh1 14-261 grease or similar “0” grade
5. Take 3 seam measurements 120 degrees apart
6. Adjustments not needed unless consistently out of range specs
`

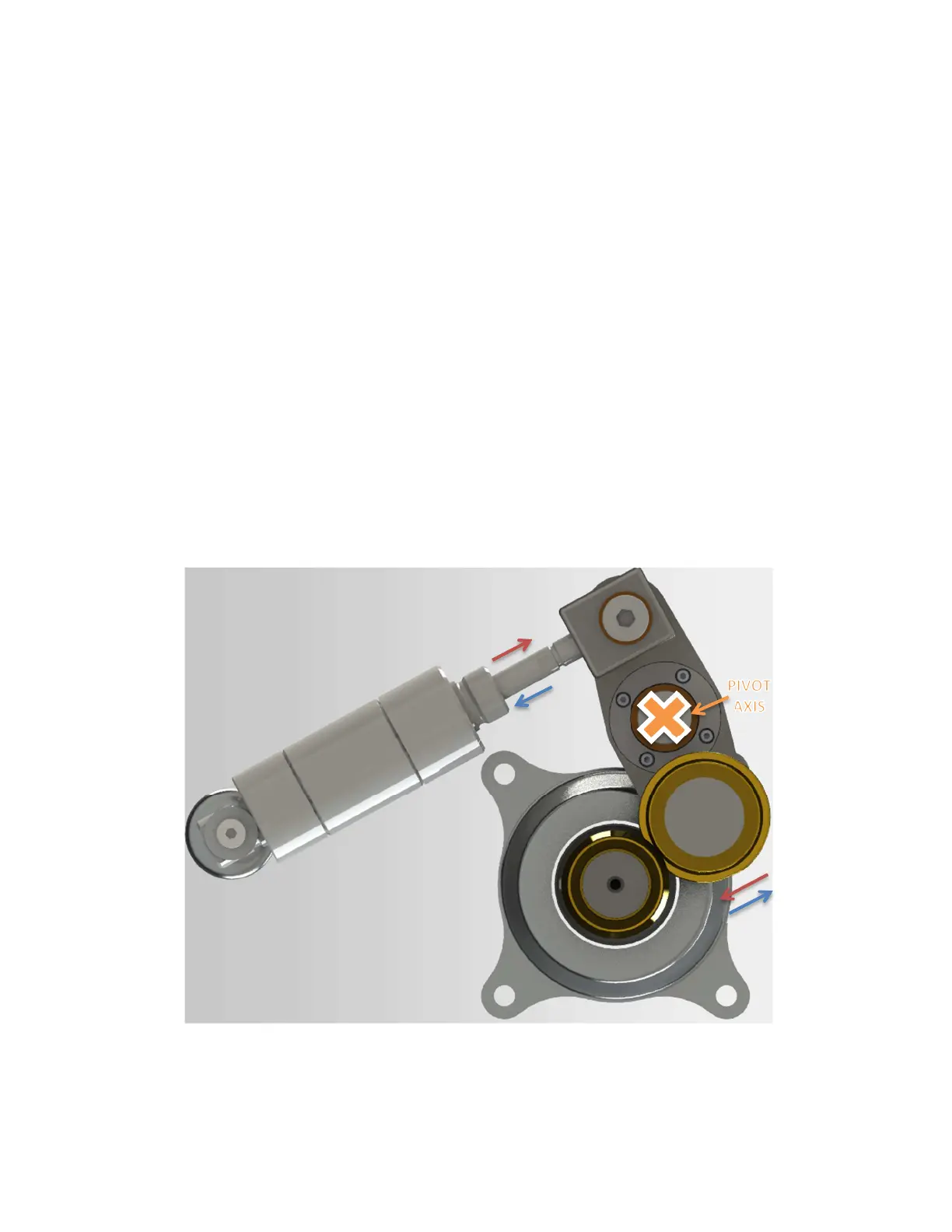

Figure 9. Chuck and roller assembly. Extending cylinder (red arrow) will extend the roller into the chuck. You may thread the cylinder shaft into
the female block to get a shorter cylinder stroke and bigger gap between chuck and roller.
