1-18 IP35/IP35-E

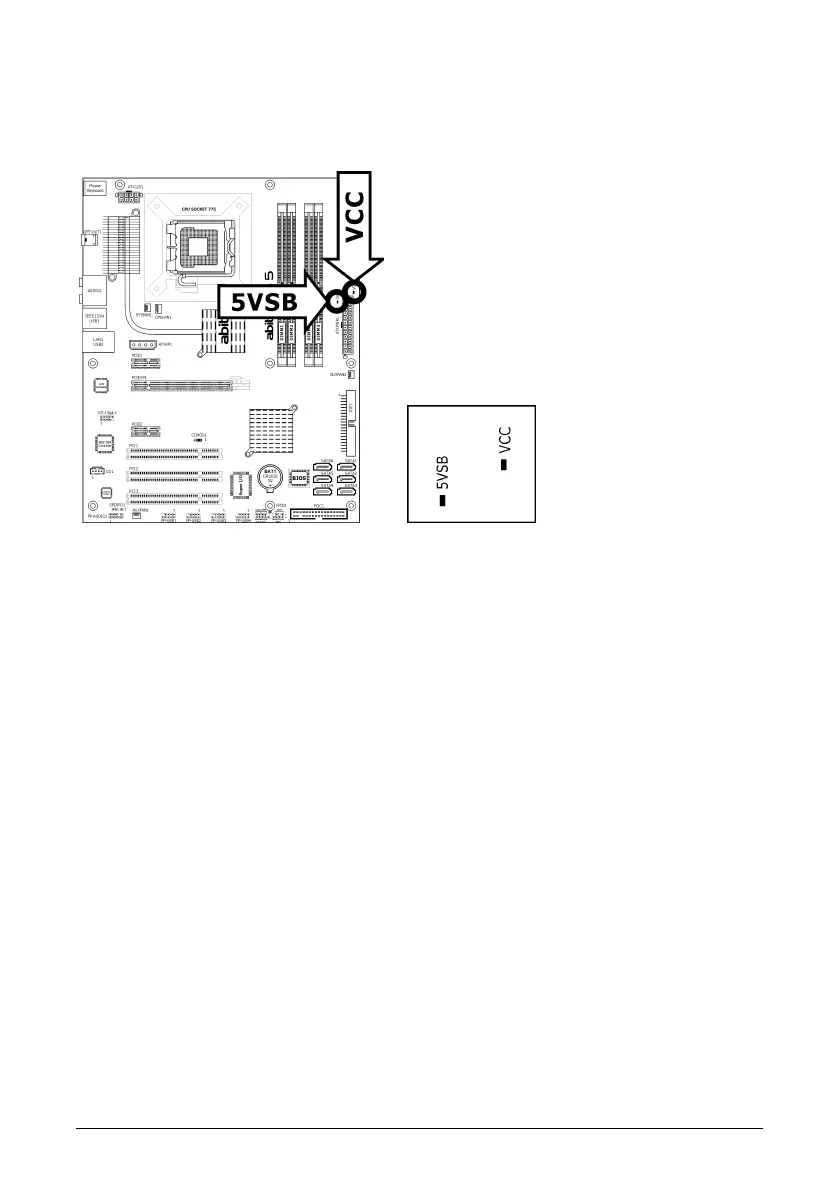

1.9 Onboard Indicators
• 5VSB: This LED lights up when the power supply is connected with power source.
• VCC: This LED lights up when the system power is on.
