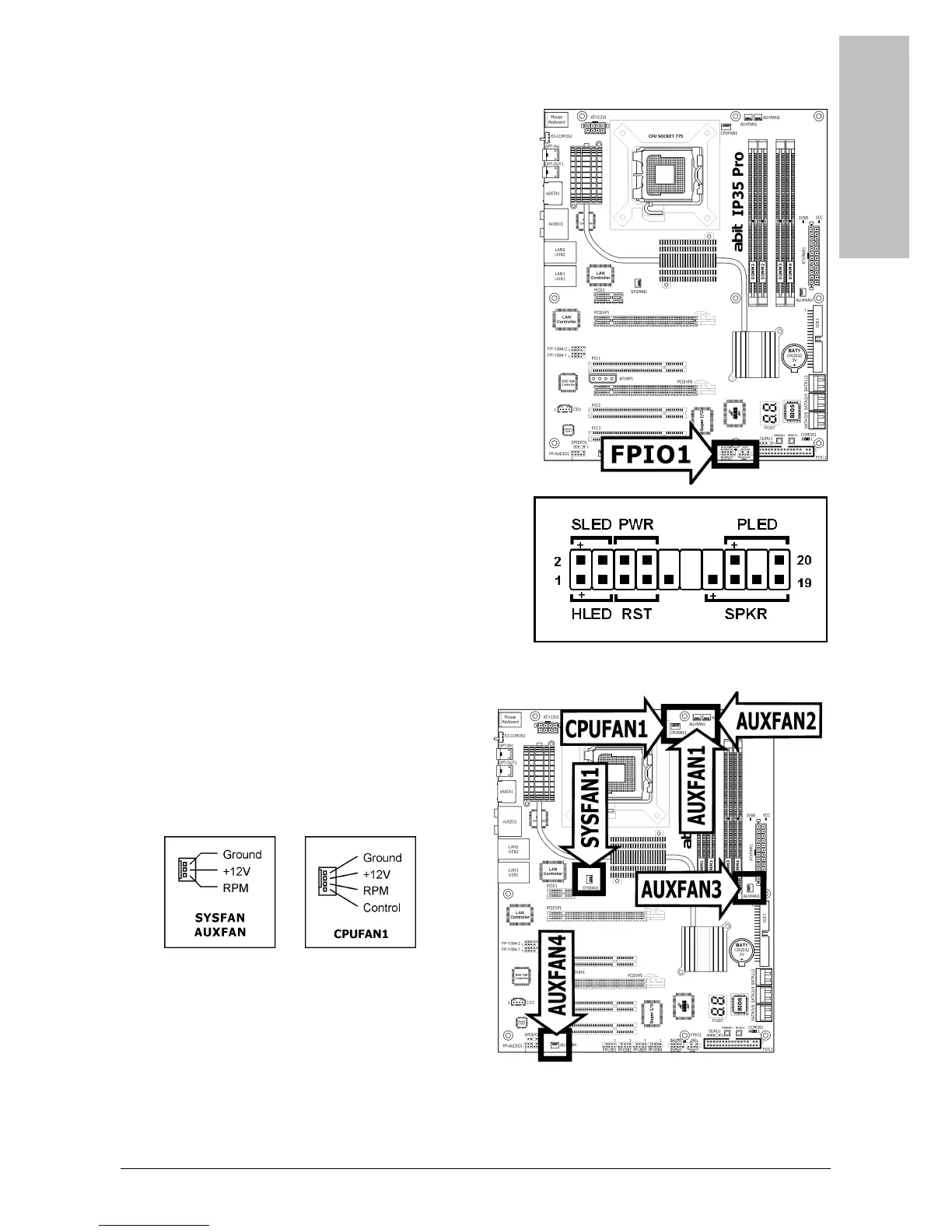

1.6.2 Front Panel Switches & Indicators Headers
This header is used for connecting switches and LED
indicators on the chassis front panel.
Watch the power LED pin position and orientation. The
mark “+” ali
g
n to the pin in the fi
g
ure below stands for
positive polarity for the LED connection. Please pay
attention when connecting these headers. A wrong
orientation will only result in the LED not lighting, but
a wrong connection of the switches could cause
system malfunction.
• HLED (Pin 1, 3):
Connects to the HDD LED cable of chassis front
panel.
• RST (Pin 5, 7):
Connects to the Reset Switch cable of chassis
front panel.
• SPKR (Pin 13, 15, 17, 19):
Connects to the System Speaker cable of chassis.
• SLED (Pin 2, 4):
Connects to the Suspend LED cable (if there is
one) of chassis front panel.
• PWR (Pin 6, 8):
Connects to the Power Switch cable of chassis
front panel.
• PLED (Pin 16, 18, 20):
Connects to the Power LED cable of chassis front
panel.
1.6.3 FAN Power Connectors
These connectors each provide power to the
cooling fans installed in your system.
• CPUFAN1: CPU Fan Power Connector
• SYSFAN1: System Fan Power Connector
• AUXFAN1~4: Auxiliary Fan Power
Connector
※ Either a
3-pin or 4-pin CPU cooling
fan connected to the “CPUFAN1”
connector is still capable of having its
fan speed controlled. Please refer to
the BIOS setup route: “PC Health
Status”  “ABIT FanEQ Control” 
“CPU FAN Type” to select the one of
your own.
※ These fan connectors are not jumpers. DO NOT place jumper caps on these
connectors.
