Abit IP35 Pro - 1.9.2 Power Source Indicators; 1.9.3 Onboard Buttons

1-20 IP35 Pro

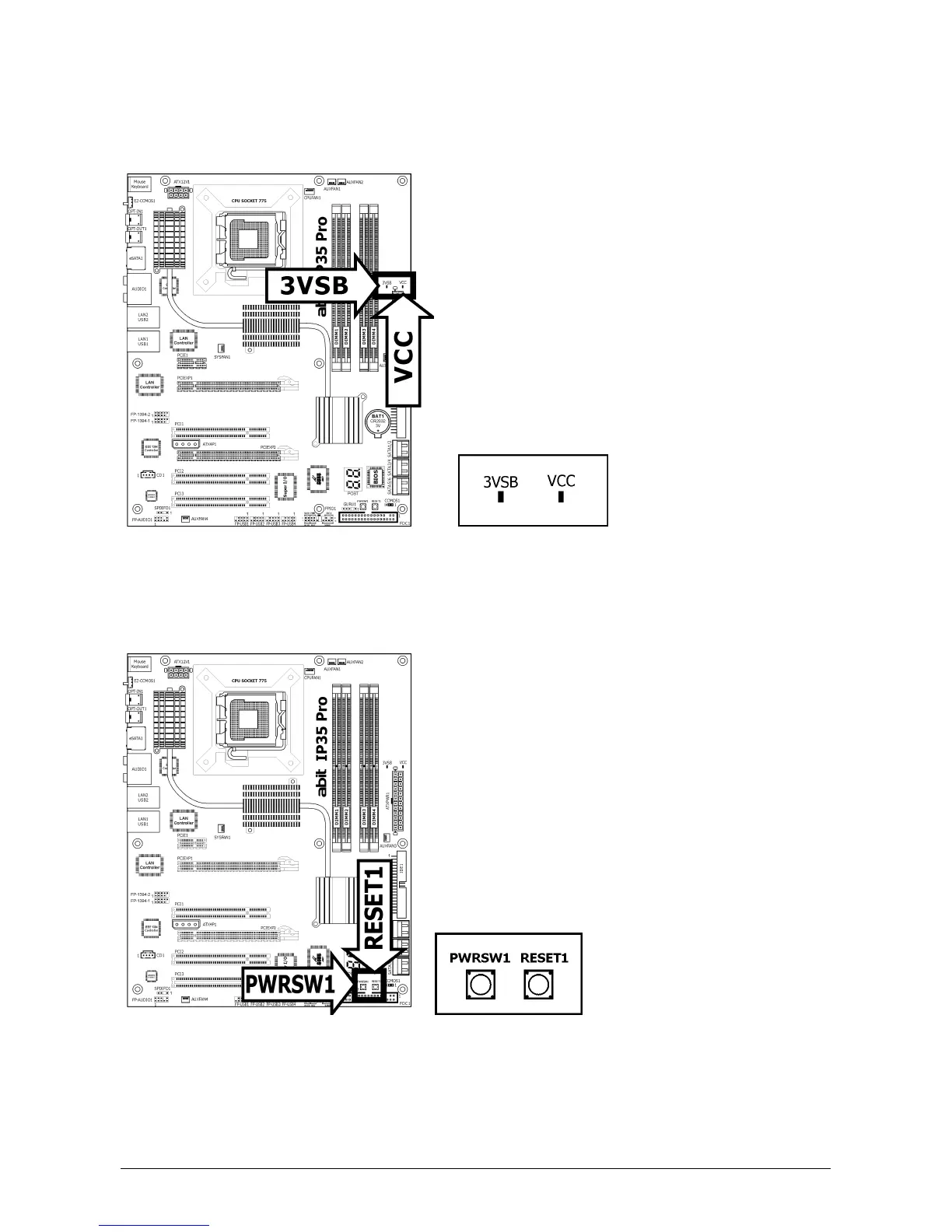

1.9.2 Power Source Indicators
• 3VSB: This LED lights up when the power supply is connected with power source.
• VCC: This LED lights up when the system power is on.
1.9.3 Onboard Buttons
• PWRSW1: Push this button to power on the system.
• RESET1: Push this button to reset the system.
