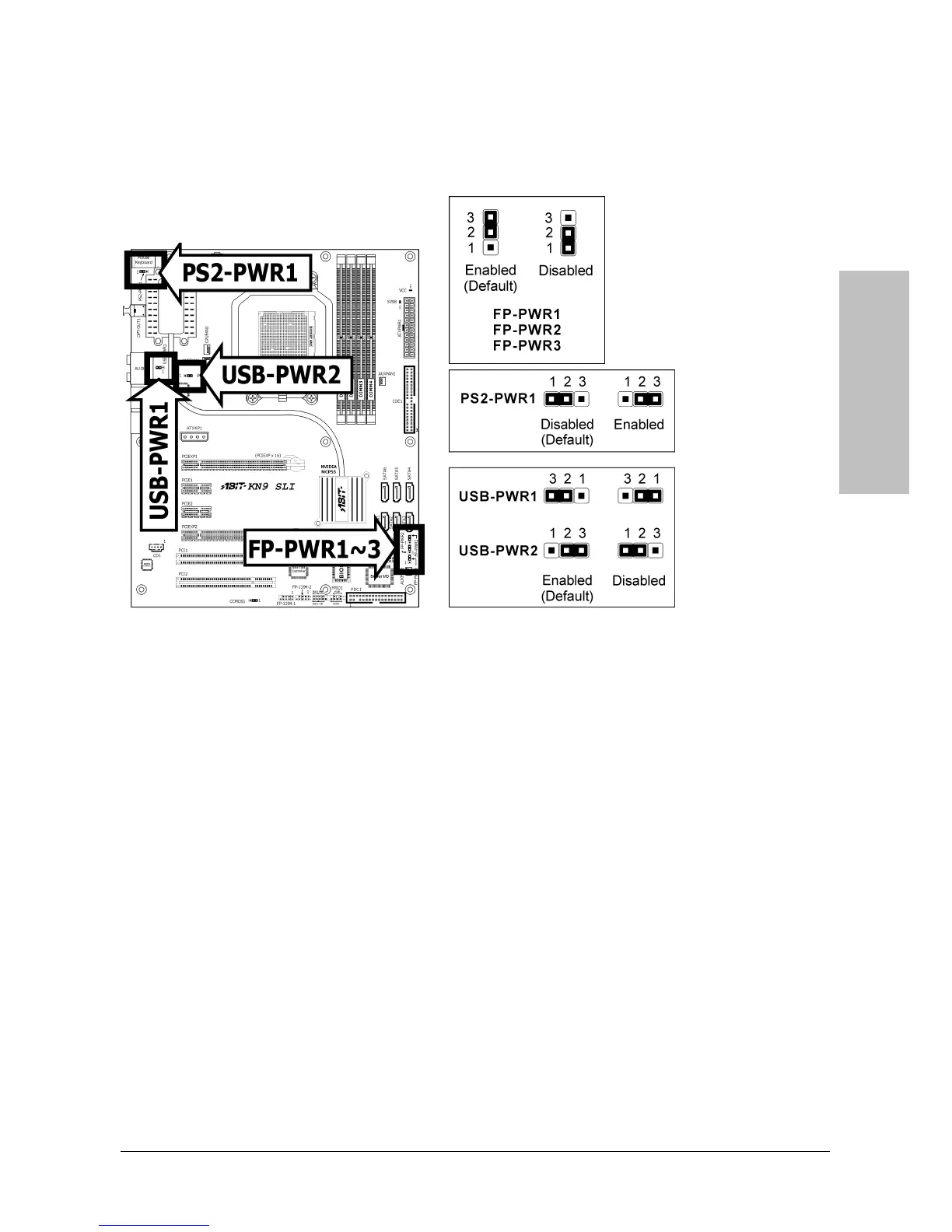

2.3.2 Wake-up Headers
These headers use a jumper cap to enable/disable the wake-up function.
• PS2-PWR1:
Pin 1-2 shorted (Default): Disable wake-up function support at Keyboard/Mouse port.
Pin 2-3 shorted: Enable wake-up function support at Keyboard/Mouse port.
• USB-PWR1:
Pin 1-2 shorted: Disable wake-up function support at USB1 port.
Pin 2-3 shorted (Default): Enable wake-up function support at USB1 port.
• USB-PWR2:
Pin 1-2 shorted: Disable wake-up function support at USB2 port.
Pin 2-3 shorted (Default): Enable wake-up function support at USB2 port.
• FP-PWR1:
Pin 1-2 shorted: Disable wake-up function support at FP-USB1 port.
Pin 2-3 shorted (Default): Enable wake-up function support at FP-USB1 port.
• FP-PWR2:
Pin 1-2 shorted: Disable wake-up function support at FP-USB2 port.
Pin 2-3 shorted (Default): Enable wake-up function support at FP-USB2 port.
• FP-PWR3:
Pin 1-2 shorted: Disable wake-up function support at FP-USB3 port.
Pin 2-3 shorted (Default): Enable wake-up function support at FP-USB3 port.
