Hardware Setup 2-7

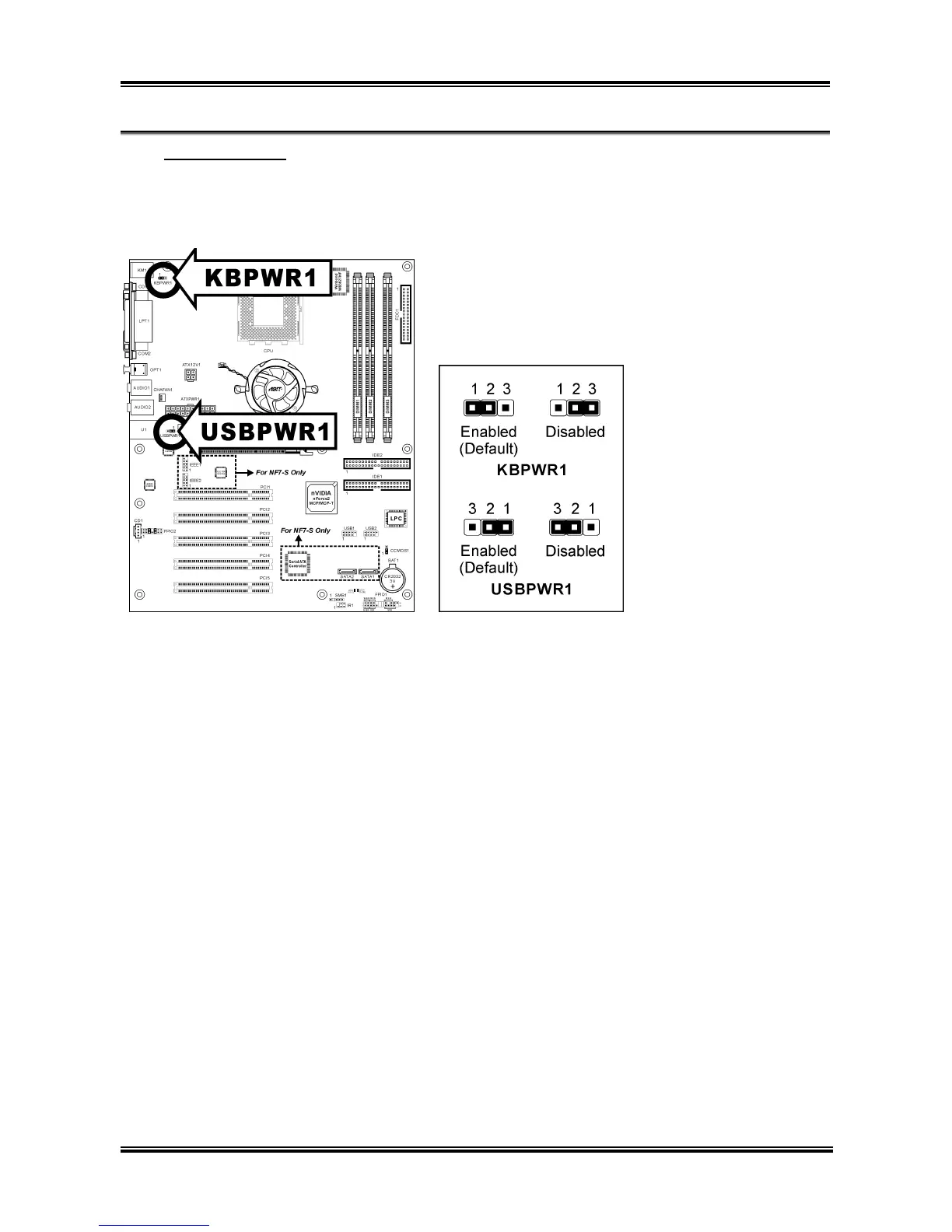

(4). Wake-up Header
These headers use a jumper cap to enable/disable the wake-up function.
NF7/NF7-S/NF7-M:
• KBPWR1:
Pin 1-2 shorted (default): Enable wake-up function support at Keyboard/Mouse port.
Pin 2-3 shorted: Disable wake-up function support at Keyboard/Mouse port.
• USBPWR1:
Pin 1-2 shorted (default): Enable wake-up function support at USB1 port.
Pin 2-3 shorted: Disable wake-up function support at USB1 port.
