Abit NF7 - 2-17. Serial ATA Connectors (NF7-S;NF7-S2;NF7-S2 G)

2-20 Chapter 2

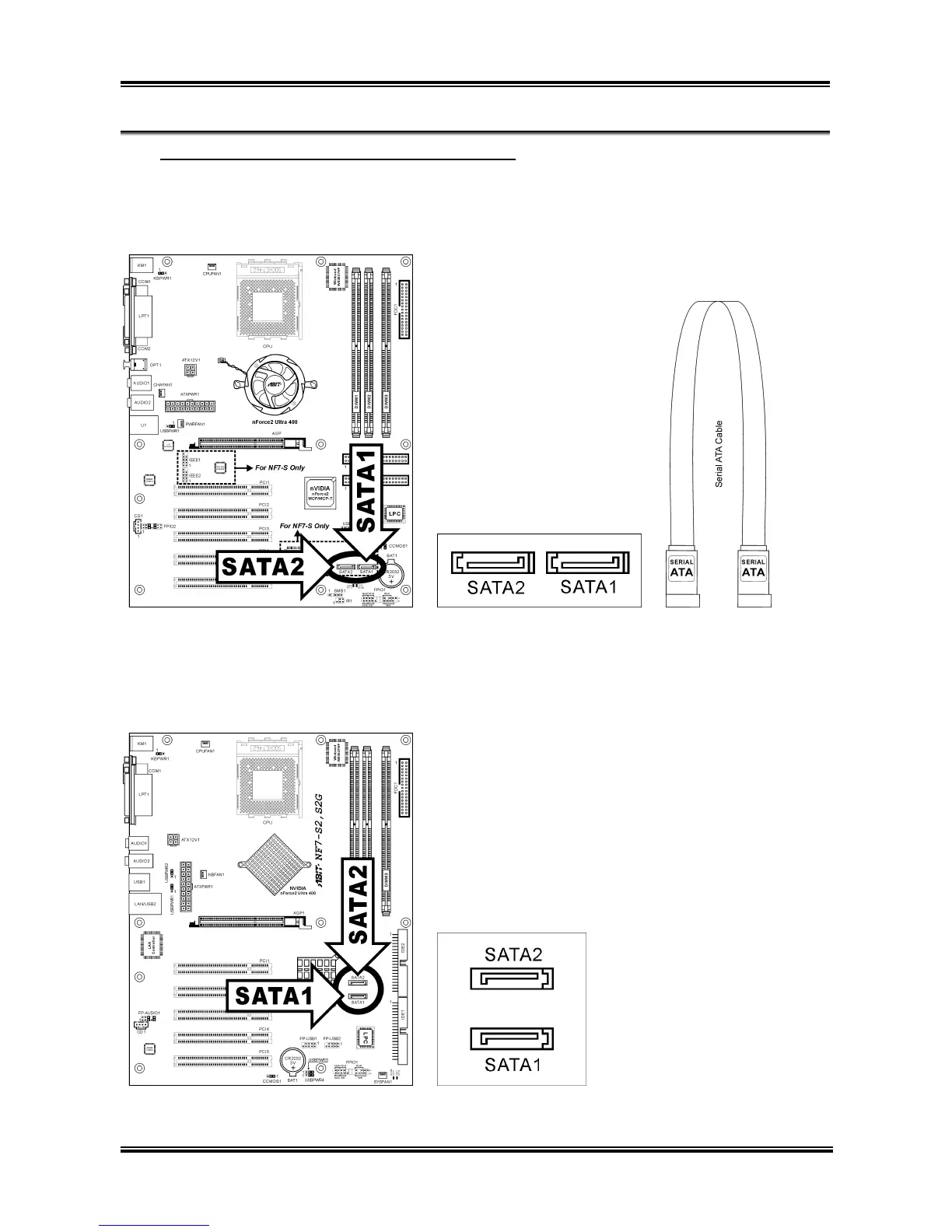

(14). Serial ATA Connectors (NF7-S/NF7-S2/NF7-S2G)
These connectors are provided to attach one Serial ATA device at each channel via Serial ATA cable.
NF7-S:
SATA1 and SATA2 are controlled by Silicon Image PCI Chip. To enable the SATA1 and SATA2
controller, the item “Serial ATA Controller” must be kept enabled (default setting) in the BIOS menu of
“Onboard PCI Device”.
NF7-S2/NF7-S2G:
SATA1 and SATA2 are controlled by South Bridge. To enable the SATA1 and SATA2 controller, the
item “Serial ATA” must be kept enabled (default setting) in the BIOS menu of “OnChip PCI Device”.
NF7 Series
