Abit NF7 - 2-10. Additional USB Port Headers

Hardware Setup 2-11

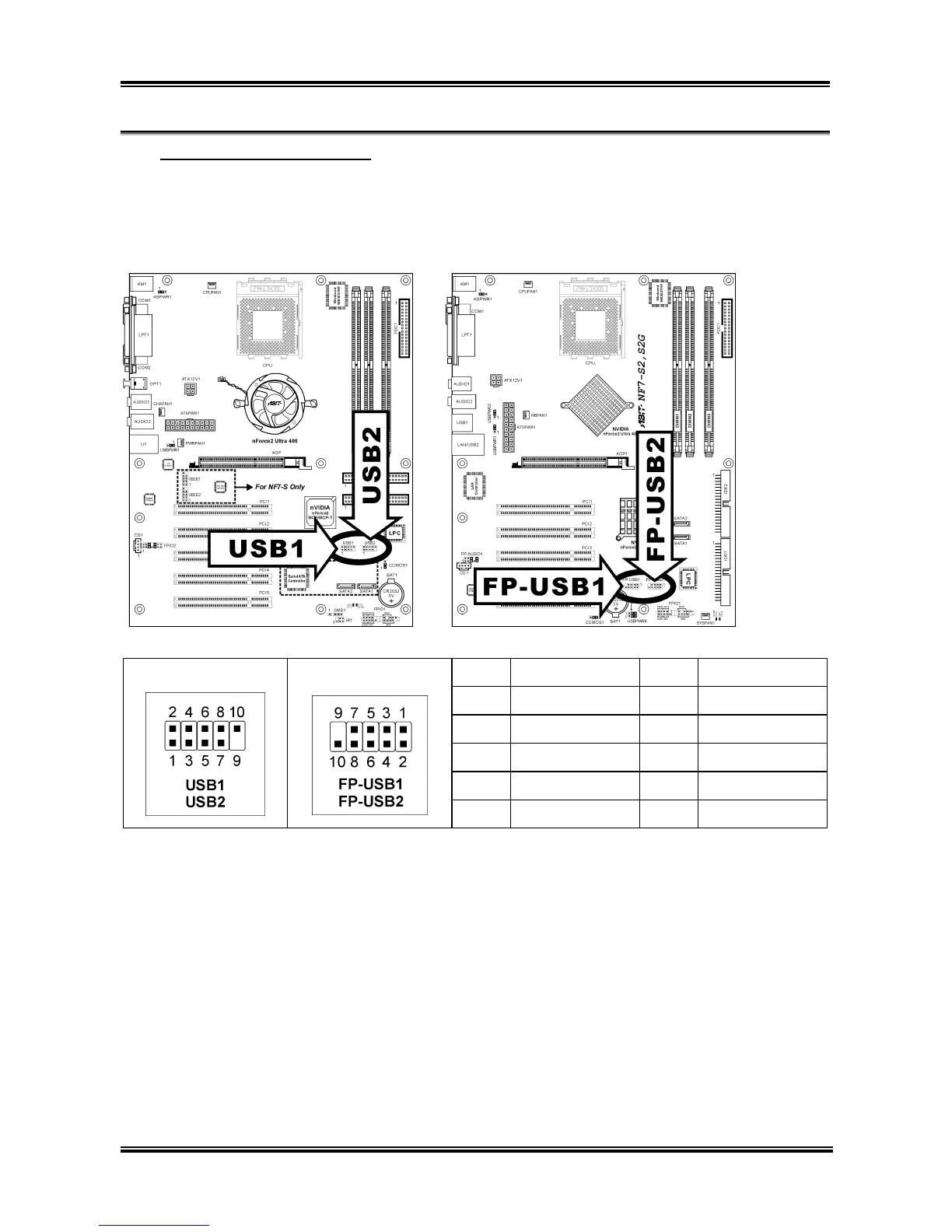

(7). Additional USB Port Headers
These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
NF7/NF7-S/NF7-M: NF7-S2/NF7-S2G:
Pin
Pin Assignment
Pin Pin Assignment
1 VCC 2 VCC
3 Data0 - 4 Data1 -
5 Data0 + 6 Data1 +
7 Ground 8 Ground
NF7/NF7-S/NF7-M
NF7-S2/NF7-S2G
9 NC 10 NC
User’s Manual
