Hardware Setup 2-15

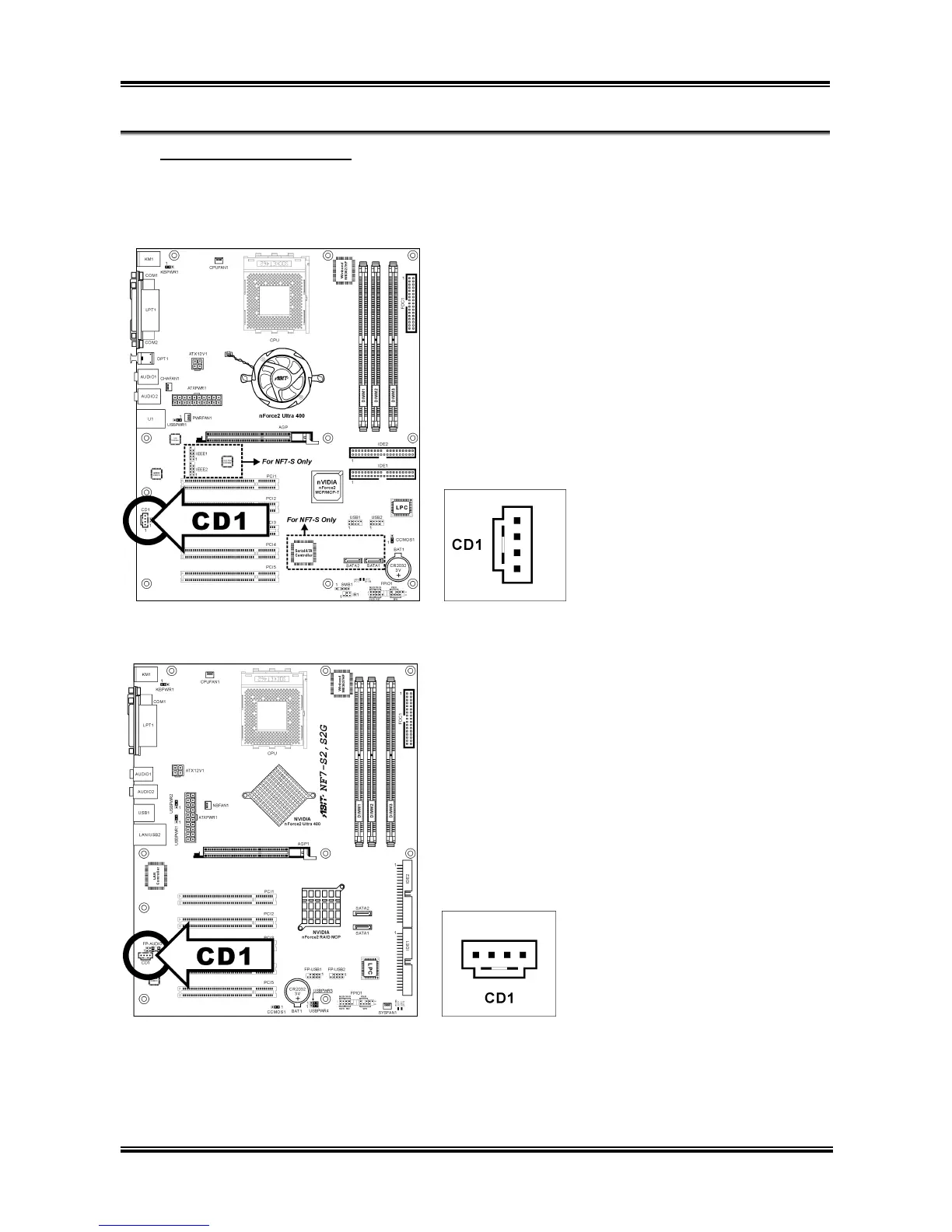

(10). Internal Audio Connectors
This connector connects to the audio output of internal CD-ROM drive or add-on card.
NF7/NF7-S/NF7-M:
NF7-S2/NF7-S2G:
User’s Manual
