2-14 Chapter 2

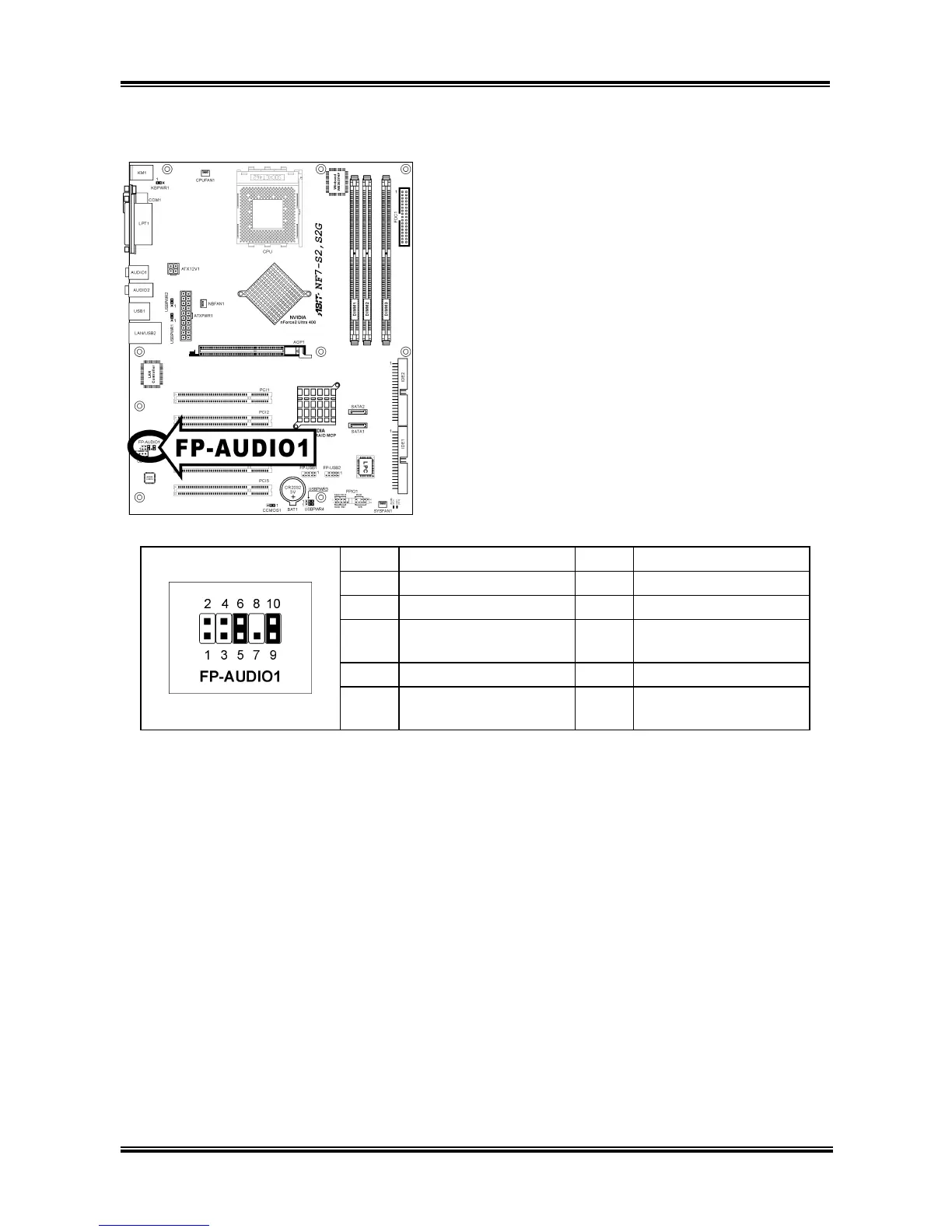

NF7-S2/NF7-S2G:
Pin Pin Assignment Pin Pin Assignment
1 Audio Mic. 2 Ground
3 Audio Mic. Bias 4 VCC
5
Speaker Out Right
Channel
6
Speaker Out Right
Channel Return
7 X 8 NC
9
Speaker Out Left
Channel
10
Speaker Out Left
Channel Return
