Hardware Setup 2-13

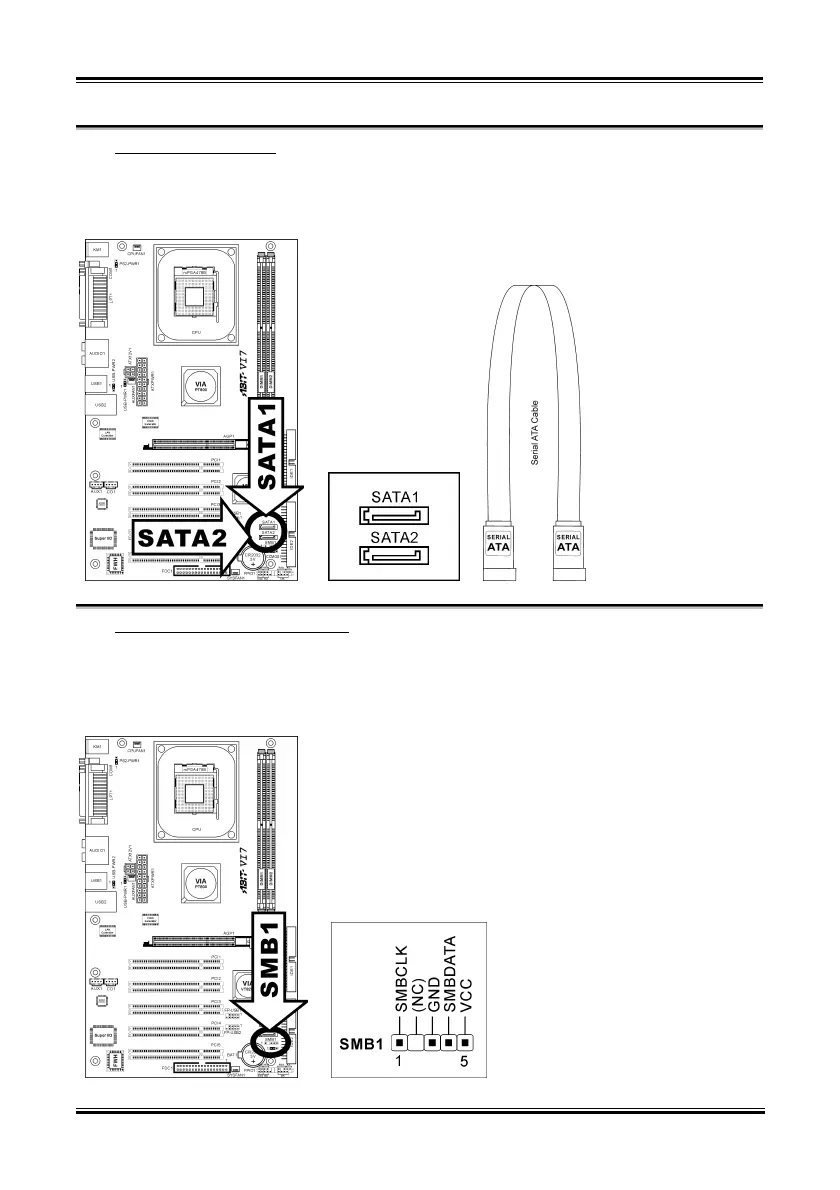

(11). Serial ATA Connectors
These connectors are provided to attach one Serial ATA device at each channel via Serial ATA cable. A
RAID0 or RAID 1 array is also available by software configuration.
(12). System Management Bus Headers
This header is reserved for system management bus (SM bus). The SM bus is a specific implementation
of an I
2
C bus. I
2
C is a multi-master bus, which means that multiple chips can be connected to the same
bus and each one can act as a master by initiating a data transfer. If more than one master simultaneously
tries to control the bus, an arbitration procedure decides which master gets priority.
User’s Manual
