Installing the Motherboard 2-5
User’s Manual

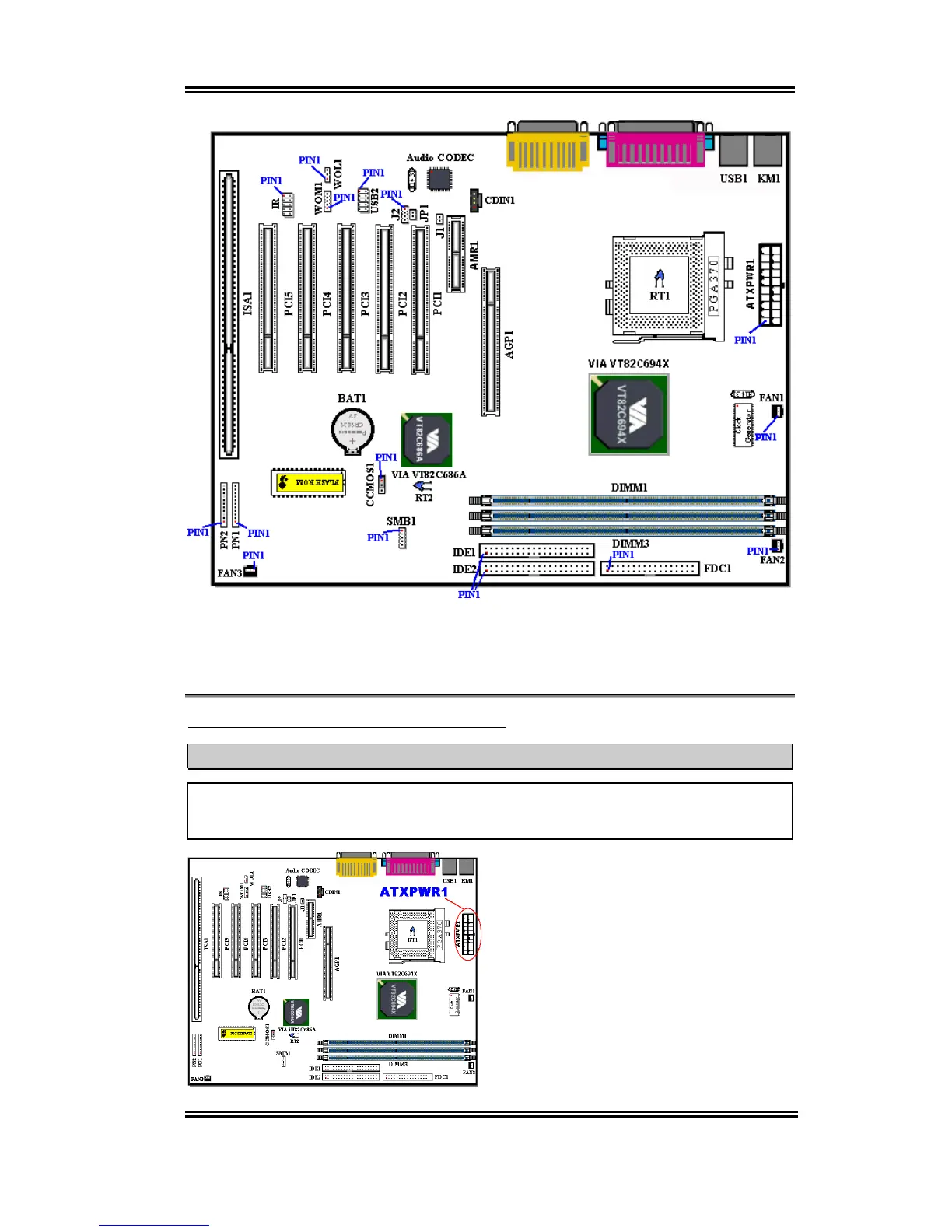

Figure 2-7. All Connectors and Headers for the VL6
First, Let’s see the headers that VL6 uses, and what their functions are.
(1) ATXPWR1: ATX Power Input Connector
Caution
If the power supply connectors are not properly attached to the ATXPWR1 power
supply, the power supply or add-on cards may be damaged.
Attach the connector from the power supply
to the ATXPWR1 connector here.
Remember you have to push the connector
from the ATX power supply firmly to the
end with the ATXPWR1 connector, insuring
that you have a good connection.
Note: Watch the pin position and the
orientation
