RESOLVING ERRORS
17
Resolving errors
Your eMH1 charging station is engineered for maximum operational safety and the
highest possible charging reliability. The RCCB and DC fault current detector (depend-
ing on model variant) will recognize all internal malfunctions and switch the device off
immediately.

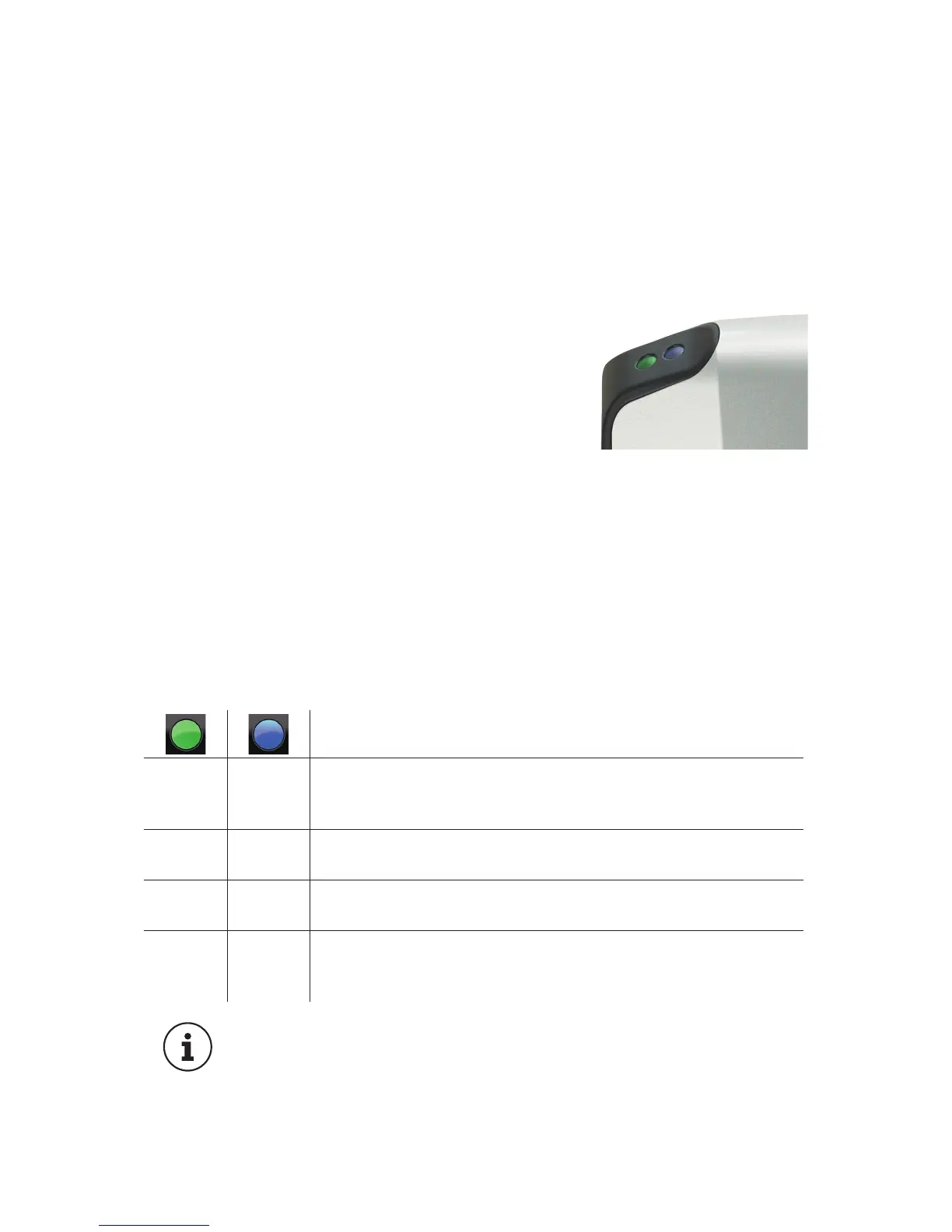

Should a malfunction occur in practice, this is shown by
the indicator LEDs on the upper part of the housing as
an error code. The following chapter describes how you
recognize operating states as well as error codes and
which measures you must take to resolve them.
Operating states
The two indicator LEDs on the left above the front cover shield show the current op-
erating status of the eMH1 charging station. To indicate certain operating states, the
LEDs may...
...be illuminated (continuous ON)
...flash
... be extinguished (continuous OFF).
During normal operation, the following operating states are shown:
DESCRIPTION
flashes
every 5
seconds
OFF
The charging station is ready for operation, the vehicle may
be connected for charging at any time.
illumi-
nated
OFF
The vehicle is connected and has been detected. Next, the
charging procedure will start automatically.
OFF
illumi-
nated
The vehicle is currently being charged.
OFF
flashes
every 5
seconds
Charging is complete, the charging station can be unplugged
from the vehicle.
PLEASE NOTE:
The charging process is always terminated by the vehicle, not by the
charging station. The EVSE 5X2 only indicates that you can unplug the
charging cable from the vehicle charging socket on the basis of commu-
nication with the vehicle. Should the vehicle not be charged sufficiently at
this point, please contact your service partner for the vehicle.
