APPENDIX
26
ABBREVIATION DESCRIPTION MEANING
REEV
Range Extended
Electric Vehicle
Electric vehicle with range extension (using a
small combustion engine or a fuel cell)
RFID
Radio Frequency
IDentification
Identification using electromagnetic waves

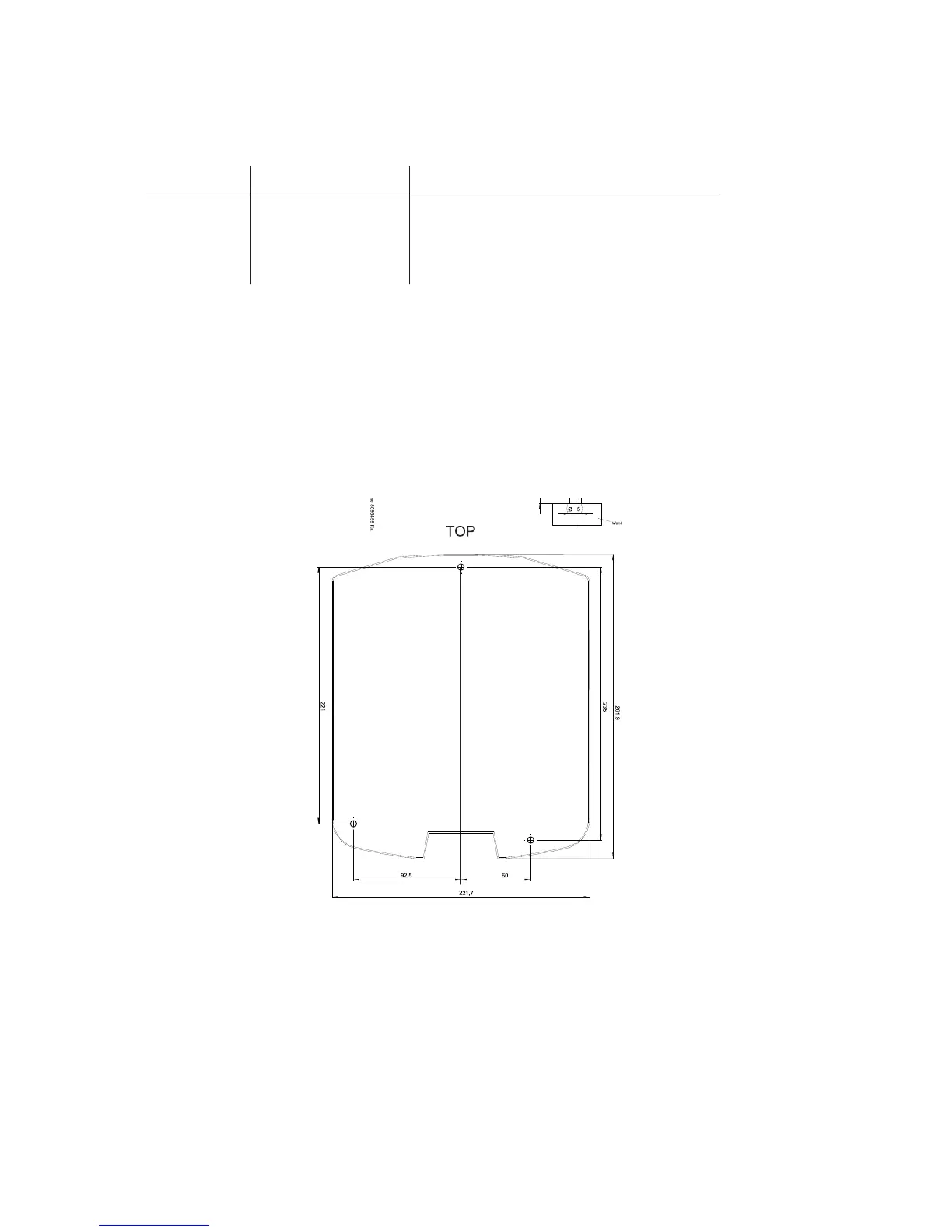

Drilling template
Your eMH1 charging station comes with a template (see reduced-size illustration) for
drilling the mounting holes in a suitable substrate. Electrical installation of the eMH1
model variants described in these instructions must always be left to a qualified electri-
cal contractor who will connect the device to the local power supply.
Illustration (not to scale)
of the drilling template included
• You may, however, carry out the mechanical installation of the charging station and
drill the necessary mounting holes yourself: This is described in detail in section “In-
stallation and power supply connection” on page 9.
• The following instructions, which you must check in advance and may need to dis-
cuss with the contractor, always apply to the installation of the charging station:
• The mounting surface area required for charging stations of the EVSE 5X2 series is
262 x 222mm (H x W).
• The recommended shaft diameter for the fixings is 5 mm, with the drill hole diam-
eter to be selected accordingly.
