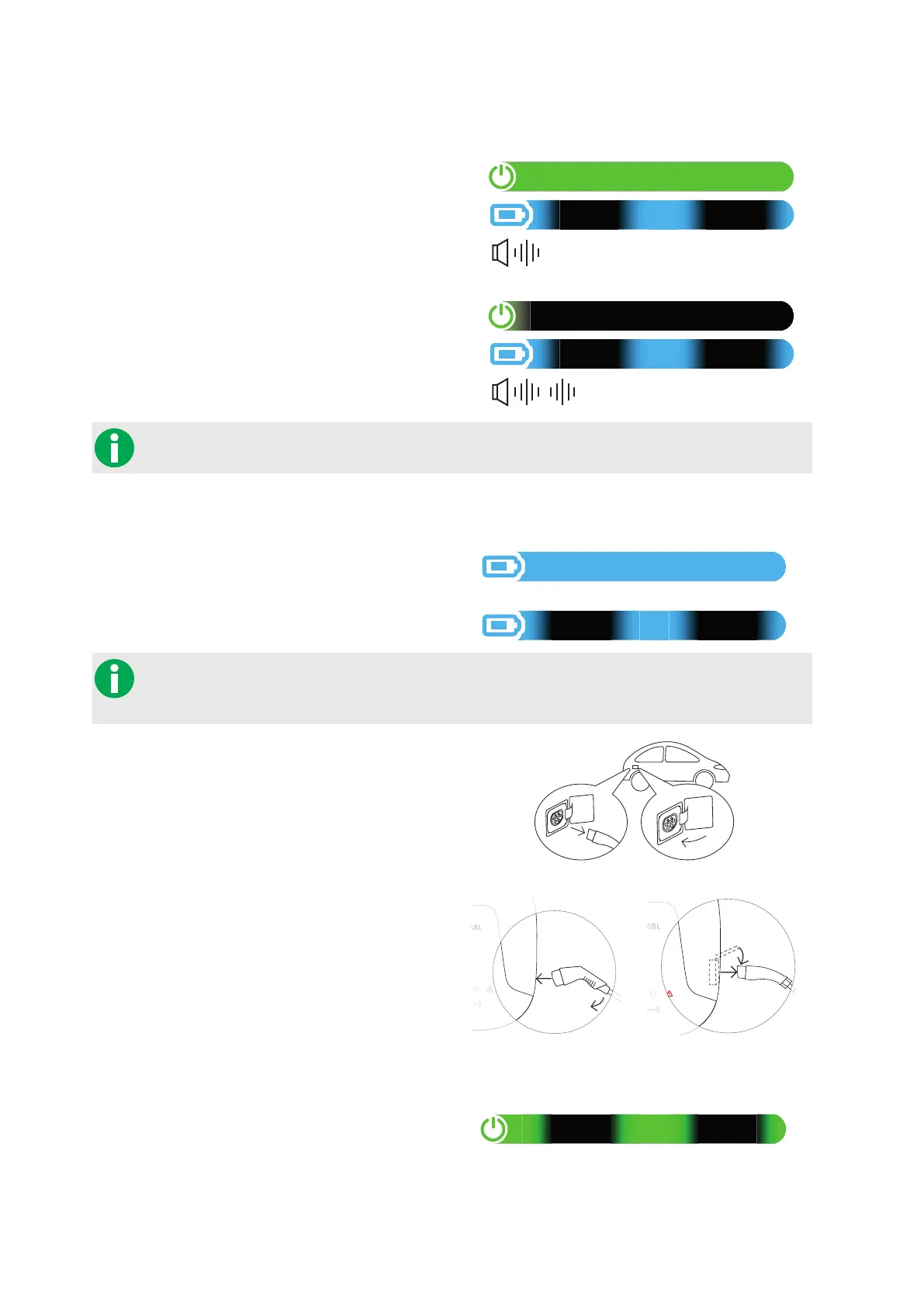

Charging procedure – Stand-alone operation of a Slave wallbox |
23
7 Check the LED indicators and acoustic signals of
the wallbox.
y During verification of RFID card authorisation:
» The green LED is ON.
» The blue LED pulsates.
» The wallbox emits a short acoustic signal.
y When the RFID card is accepted:
» The green LED turns OFF.
» The blue LED pulsates.
» The short acoustic signal is emitted twice.
If the RFID card is rejected, the red LED flashes and a long acoustic signal is emitted. In this case, contact
the issuer of your RFID card or ensure that the RFID card has been registered to the RFID reader.
8 Check the LED indicators of the wallbox:
y When the wallbox initiates the charging
procedure following a request by the vehicle,
the blue LED is ON.
y When the charging procedure is paused or
completed, the blue LED pulsates.
The charging procedure may be paused by the vehicle. Otherwise, the charging procedure is automatically
terminated by the vehicle upon completion. These two possibilities can only be distinguished by checking
the displays inside the vehicle.
9 Unplug the charging connector from the electric
vehicle's charging inlet and close it.
10 Store the charging cable ready for the next charg-
ing procedure.
y Fixed cable variant Type 2
Replace the charging connector in its storage
compartment.
y Socket variant Type 2
Unplug the charging connector from the charg-
ing socket and store the charging cable: the
charging socket flap closes automatically.
11 The wallbox is ready for the next charging pro-
cedure:
y When the wallbox is ready for operation, the
green LED pulsates.
