| Appendix – Dimensions
32
Model code 2W22Y2 / PZ42D-T0C11 2W22X2 / PZ42D-L0C11
Operating temperature -30°C to 40°C
Storage temperature -30°C to 85°C
Relative humidity 5 to 95% (no condensation)
Class of protection I
Degree of protection (housing) IP44/IP54 (plugged/unplugged)
Overvoltage category III
Impact strength IK08
Dimensions (HxWxD) 437×328×170mm
Weight per unit Approx. 8kg

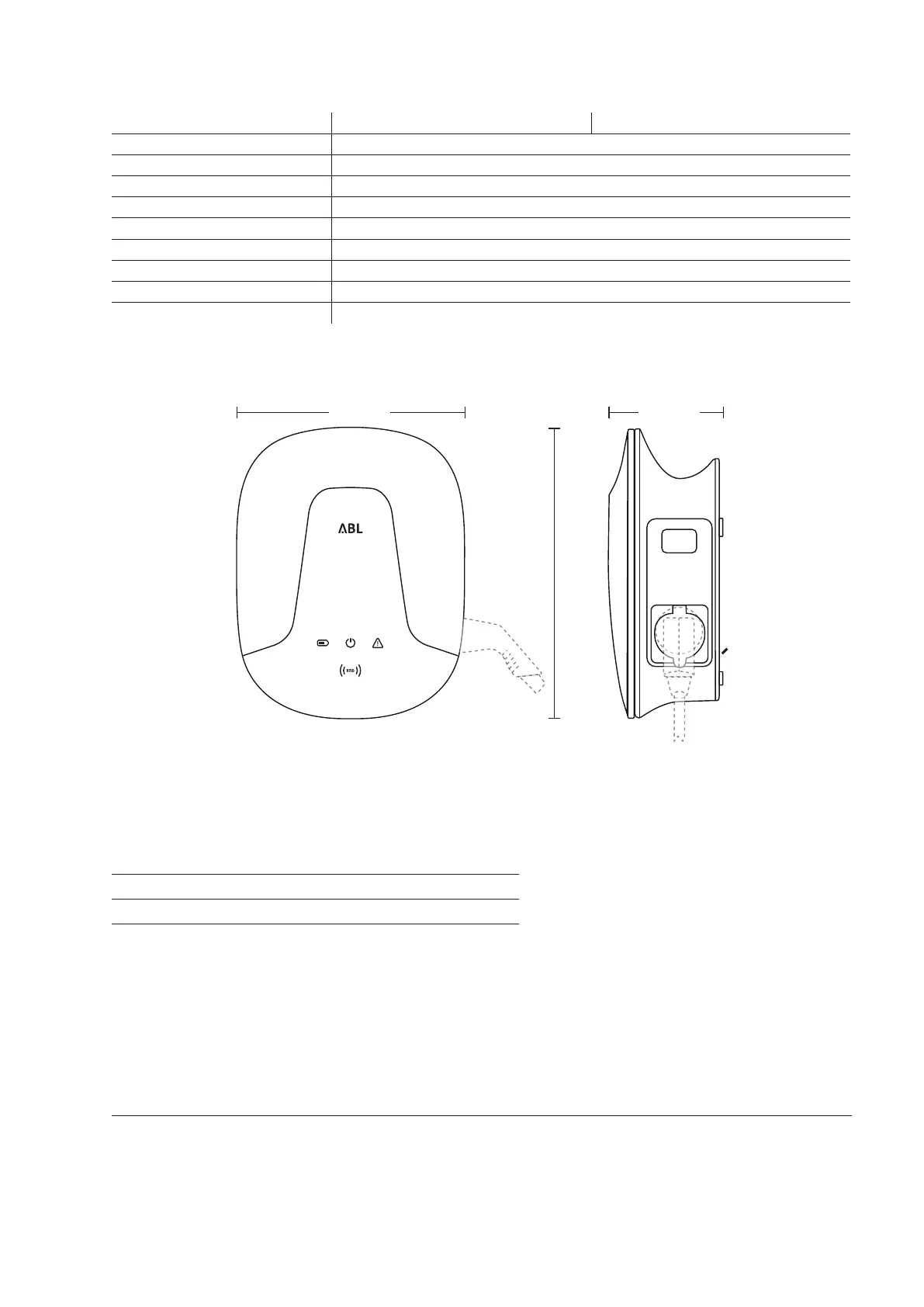

Dimensions
Standards and guidelines
General standards
2014/30/EU EMC Directive
2011/65/EU RoHS Guideline
2012/19/EU WEEE Directive
2014/35/EU Low voltage directive
Standards governing electromagnetic interference (EMV)
IEC 61851-21-2 Conductive charging systems for electric vehicles – Part 21-2: EMC requirements for off
board electric vehicle charging systems
Device safety standards
IEC 61851-1 Ed. 3 Electrical equipment for electric road vehicles - conductive charging systems for electric
vehicles – Part 1: General requirements
IEC 60364-7-722 Ed. 1 Low voltage installations- Part7-722: Requirements for special installations or locations-
Supply of electric vehicles
328 mm
170 mm
437 mm
