INSTALLATION
Drill the installation holes as shown in the drilling diagrams.
Attach the door operator to the mounting plate with four screws M8 x 25
provided.
Use the mounting plate delivered with the door operator ensuring the installation
base is level and securely fixed. Minimum wall thickness
should be 5 mm if the door frame is of metal construction.
The door operator's frame and mounting plates are provided with wiring holes
enabiling concealed wiring.
b) Pull function

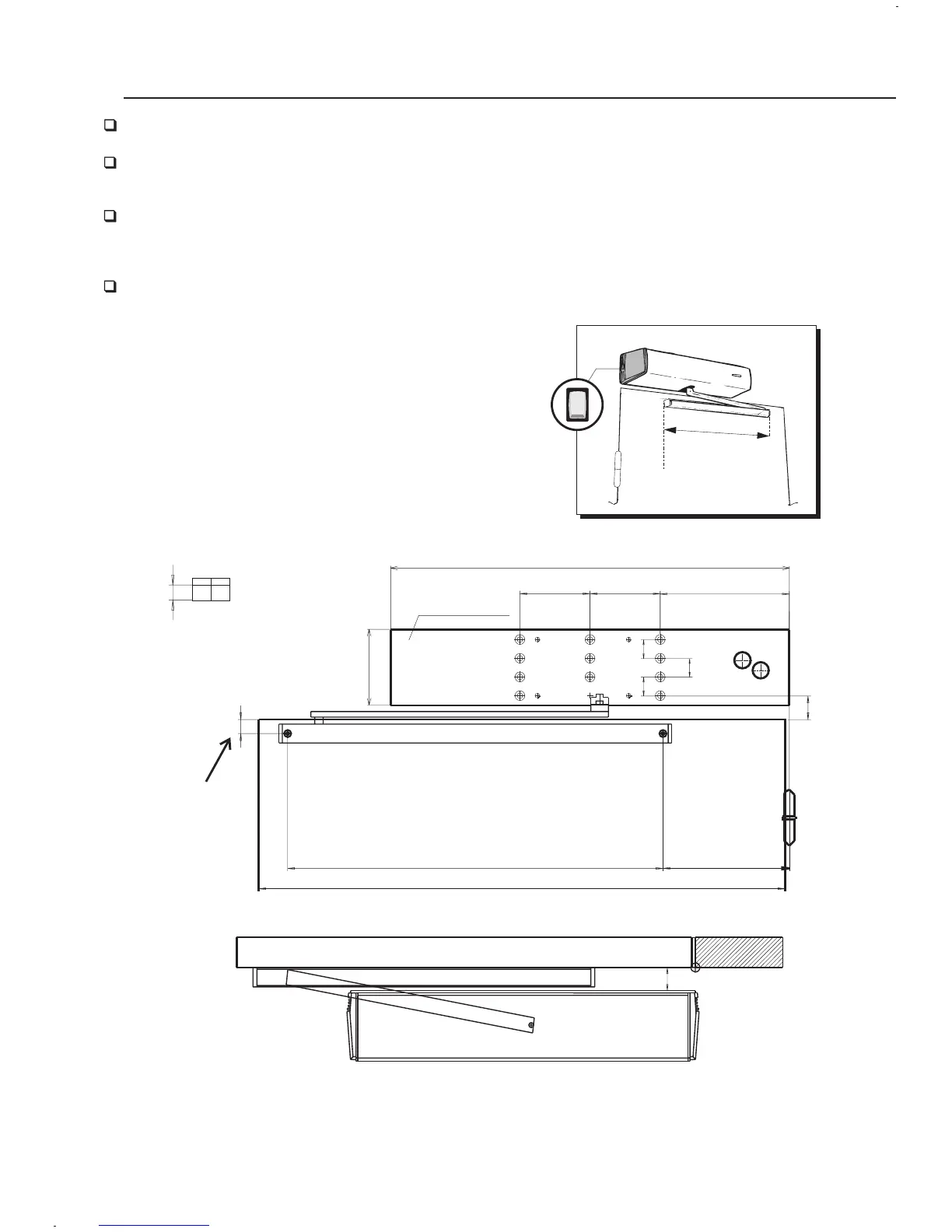

drilling diagrams
- use mounting plate DA100
- use sliding arm 7611 or DA142
- minimum door width for sliding arm application
is 750 mm
- arm DA142 is also provided with inch machine
screw
IO
IOII
565
Opening angle
max. 100
o
EX
EX
MOUNTING PLATE DA100MOUNTING PLATE DA100
YZ
95 60
85 50
75 40
65 30
55 20
45 10
35 0
100 100
184
26.75
26.5
26.75
Y
535
L
108
568
20
29,5 in DA142
Z
M
PULL FUNCTIONPULL FUNCTION
FRAME DEPT DISTANCE FROM HINGE LINE MIN DOOR WIDTHFRAME DEPT DISTANCE FROM HINGE LINE MIN DOOR WIDTH
HL MH L M
0 - 150 180 7500 - 150 180 750
150 - 200 265 835150 - 200 265 835
200 - 250 300 870200 - 250 300 870
H
