ELECTRICAL CONNECTIONS
ABLOY
2
13
115/230V AC 3x 1,5mm
2
4x 0,22mm
2
3x 0,22mm
2
2x 0,22mm
2
2x 0,22mm
2
4x 0,22mm
2
5x 0,22mm
2
2x 0,22mm
2
Safety sensor
Remote control
Push-button/Elbow switch/Pull switch
Card reader
Radars or photocells
Motor locks
Microswitch keep
CA
R
D
Mains connections:
If a permanent connection is made, the unit should be connected to a
fused unswitched 13 Amp mains spur fitted with a 2 Amp fuse.
Operator needs a grounding-type receptacle for connection to the supply.
It is very important to have the proper grounding.
To reduce the risk of electric shock, this equipment has a grounding type
plug that has a third (grounding) pin. This plug will only fit into a
grounding type outlet. If the plug does not fit into the outlet, contact a
qualified electrician to install the proper outlet. Do not change the plug in
any way
Permanent wiring shall be employed if required by local
codes

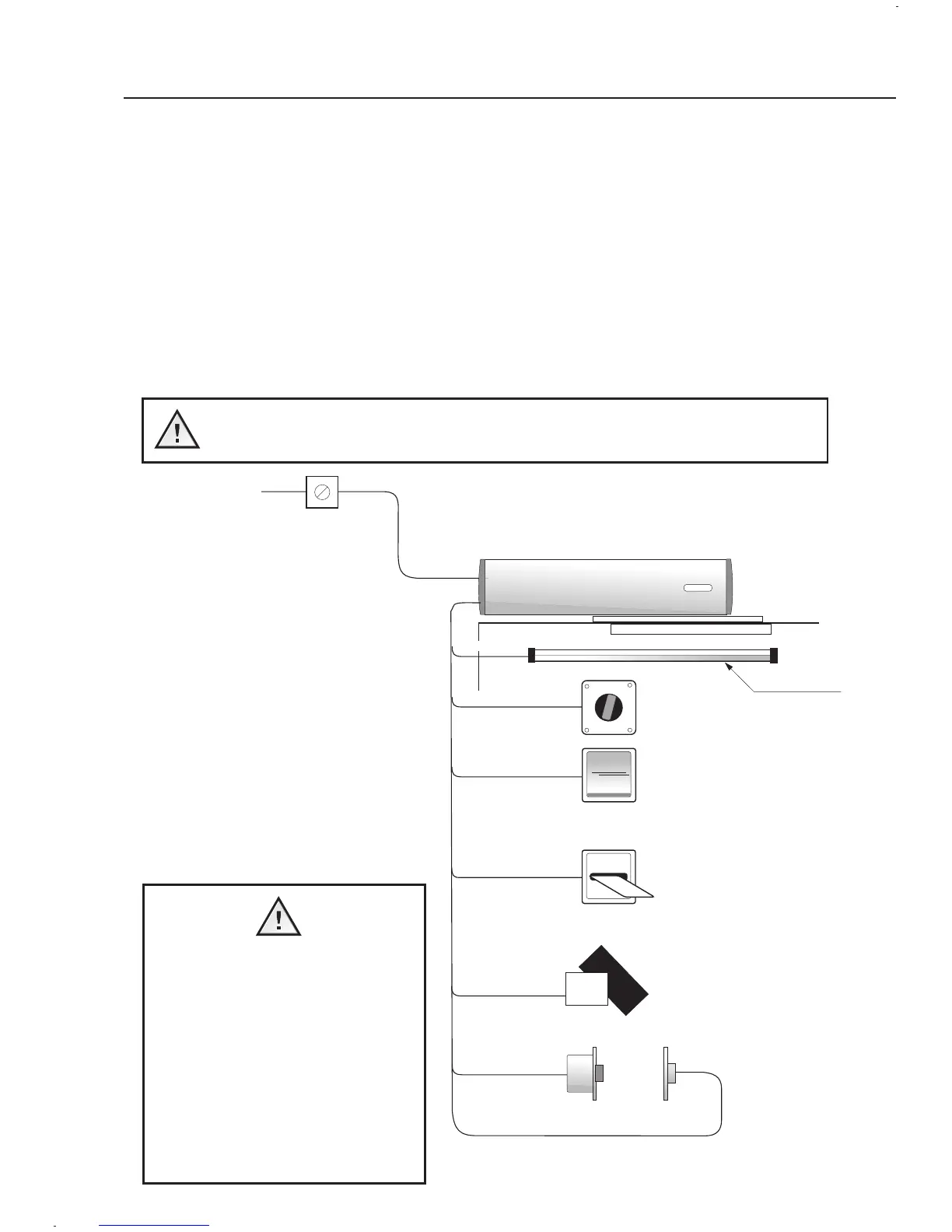

Wiring diagram:
Any impulse device with
a potential-free output
may be connected to
the door operator.
ABLOY locks and
impulse devices should
be made by using
flexible multicore cable
of a type suitable for
signal equipment. The
automatic swing door
operator supplies a
voltage to the
impulse devices and
electric locks.
12/
24VDC
Warning!
Warning!
In case of using a switch as
an impulse device other
than a conventional mat
switch, proximity indicator,
or the like the switch shall
be installed in a location
from which operation of the
door can be observed by
the person operating the
switch
