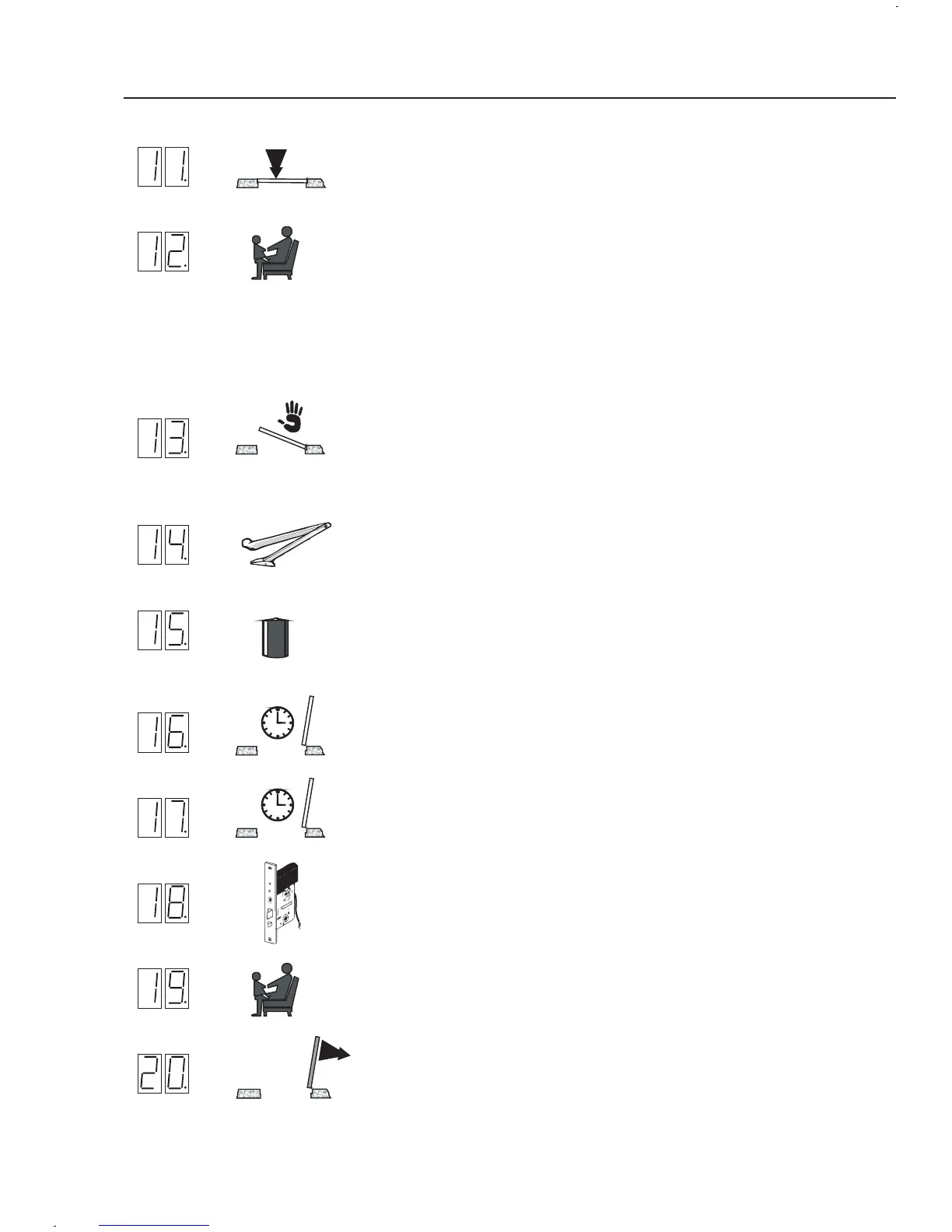

14
The operator keeps the door closed at preset force for
1 second following which this reduced to half of the preset
value. Value0=nolock-up force.
1= Standard arm, 0= Sliding arm
2= Restoring the factory settings
0= Off
1= Fire door use (closes only)
2= Full battery backup (opening & closing)
Check page 22; Battery operation
Hold open time for power-assisted manual opening.
Also in MANUAL and OPEN-mode, also for fire door use.
Hold open time for inside impulse.
0= no operation for lock relay in MANUAL-mode
1= lock control relay activates when receiving an impulse
in MANUAL-mode
Selection of safety feature operation in closing direction
0= the door stops
1= the door stops and reopens.
The hold open force drives the door for example to a
door stop.
CONTROL POINTS
The safety feature stops the door movement for 3
seconds if an obstacle is detected in the door movement
range. If the door is about to open, the operator will
attempt to open it (at intervals of 3 seconds) until the
open time has expired. If the door is about to close, the
door operator will attempt to close it five times at
intervals of 3 seconds and then five times at intervals of
15 seconds. If the obstacle is still present, the operator
will attempt to close the door at intervals of 60 seconds.
8 corresponds to minimum sensitivity.
1 = on, 0 = off.
Power-assisted manual opening will function when the
door operator is set to automatic mode.
