Installation and Operating Instructions 11
ABS lifting station PiranhamatABS lifting station Piranhamat
6.3.1 Piranhamat 100/120 does not work, motor makes a humming noise.
1111-00

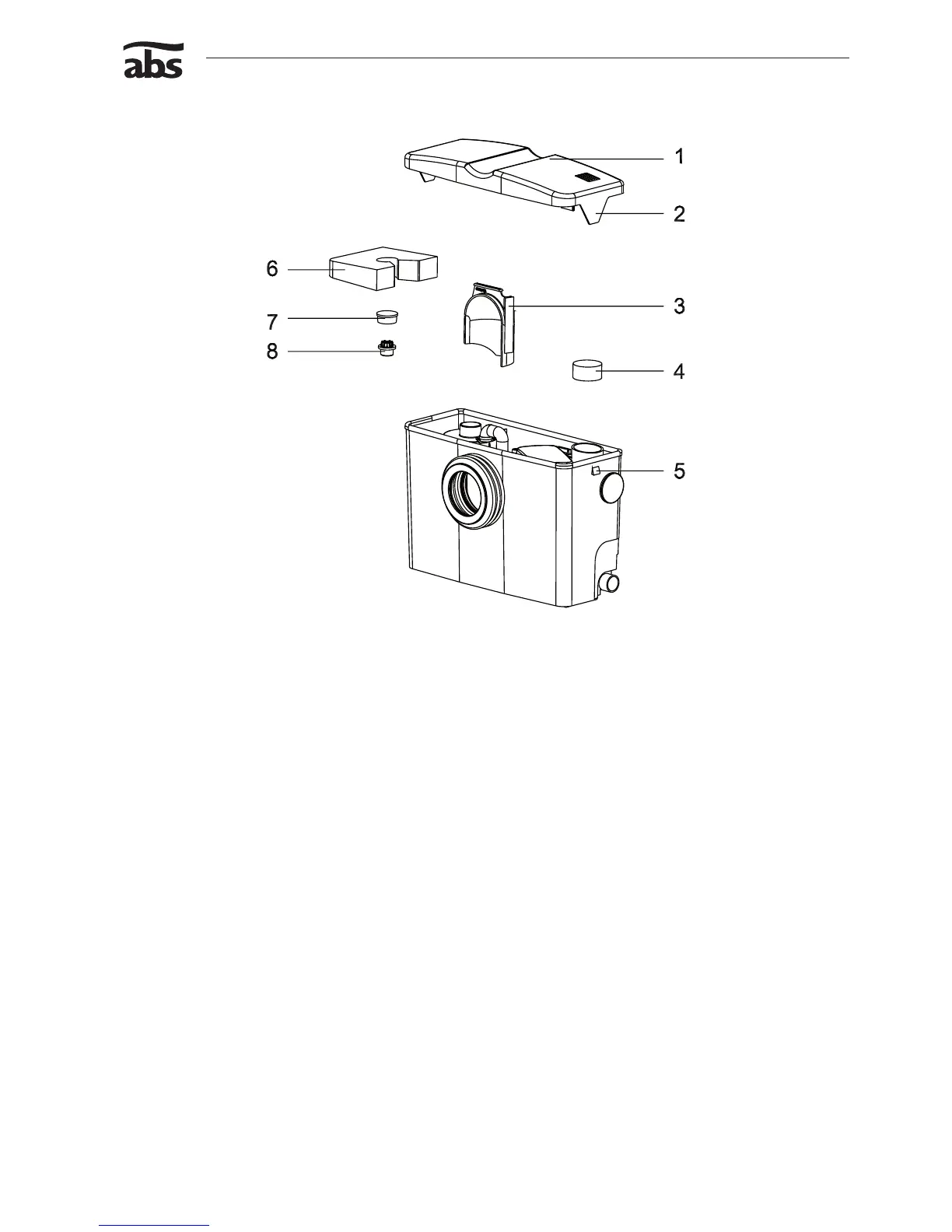

Figure 9. Piranhamat 100/120 opened for maintenance purposes.
Withdraw plug and ensure that it cannot be inadvertently be switched back on.
Pull the latches (9/2) on the tank cover (9/1) lightly to the outside and lift off the cover (9/1).
Remove the oat protection (9/6).
Withdraw cap (9/7) from motorhousing.
Unscrew plugscrew (9/8) and clear a possible blockage of the cutting system by rotating the rotorshaft with a
screwdriver or electrical drill.
Withdraw the deector plate (9/3) upwards out of the tank and clean the tank.
m
There is a danger of injury from the cutting tool in the hydraulic system. Do not place your hand in the
tank when the rotorshaft is being turned in accordance with Fig. 10 with a screwdriver or drill.
Replace the deector plate (9/3) back in the tank.
Screw back in plugscrew (9/8), ret cap (9/7), replace the oat protection (9/6) and ret the tank cover (9/1).
m
The latches (9/2) must correctly lock into position.
ATTENTION The unit should only be used or tested with the top cover correctly in place.
Carry out functional test.
If the Piranhamat 100/120 still does not work, withdraw plug and call ABS Service.
-
-
-
-
-
-
-
-
-
