6 Installation and Operating Instructions
ABS lifting station Piranhamat
3 Description
The lifting unit of the Piranhamat 100/120 series is supplied ready for installation and has been designed for the
pumping of efuent containing faecal matter in accordance with DIN standards.
The pump installed in a lifting unit is equipped with the ABS-Piranha-cutting system and has been designed to
pump normal toilet domestic efuent.
On the front side of the unit is located a toilet push-on connection designed for the self-sealing connection of a
single WC. In addition, DN 40 inow ports are located both on the left and right-hand side for connection of a
wash-hand basin, bidet and a single shower tray.
Piranhamat 120 only: The unit has a built-in acoustic alarm signal that is activated when the water level remains
at a high level for more than 30 seconds.
3.1 Design of the Piranhamat 100/120 lifting unit
1106-00

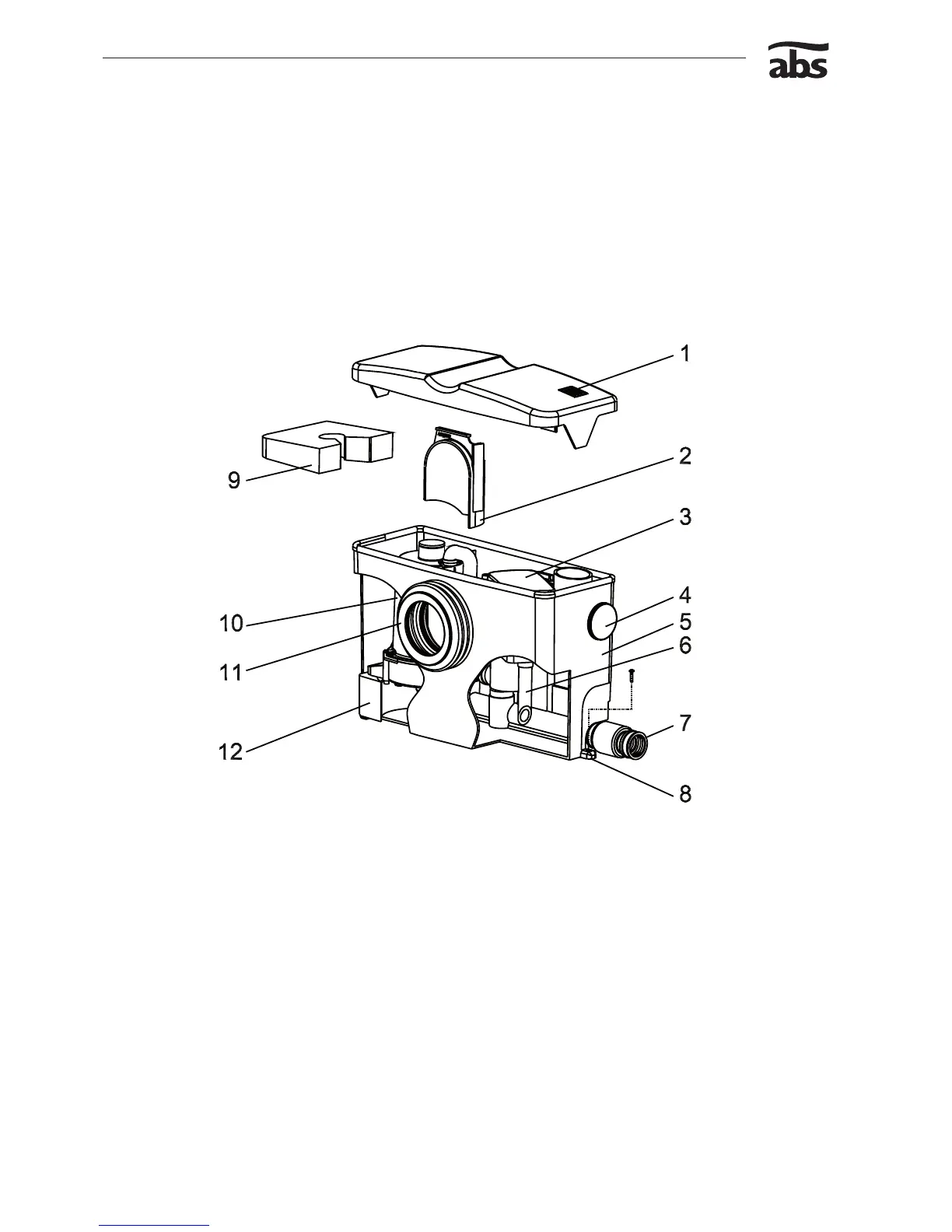

Figure 4. Design of the Piranhamat 100/120 lifting unit.
Venting by means of carbon lter with the facility for connection of vent line.
Inow deector plate.
Electronic control unit.
Connection DN40 for wash-hand basin, a bidet or shower tray either on the left-hand or right-hand side of
the unit.
Tank.
Pipe to level control switch.
Discharge line connection valve - can be connected to the left-hand or right-hand side of the unit.
Tank xing and otation prevention.
Flotation prevention for the motor.
Pump motor with hydraulic section.
Inlet port DN100 for direct toilet connection.
Support for pump motor.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
