4 Installation and Operating Instructions
ABS lifting station Piranhamat
Vertical discharge line length
Horizontal discharge line length
1104-00

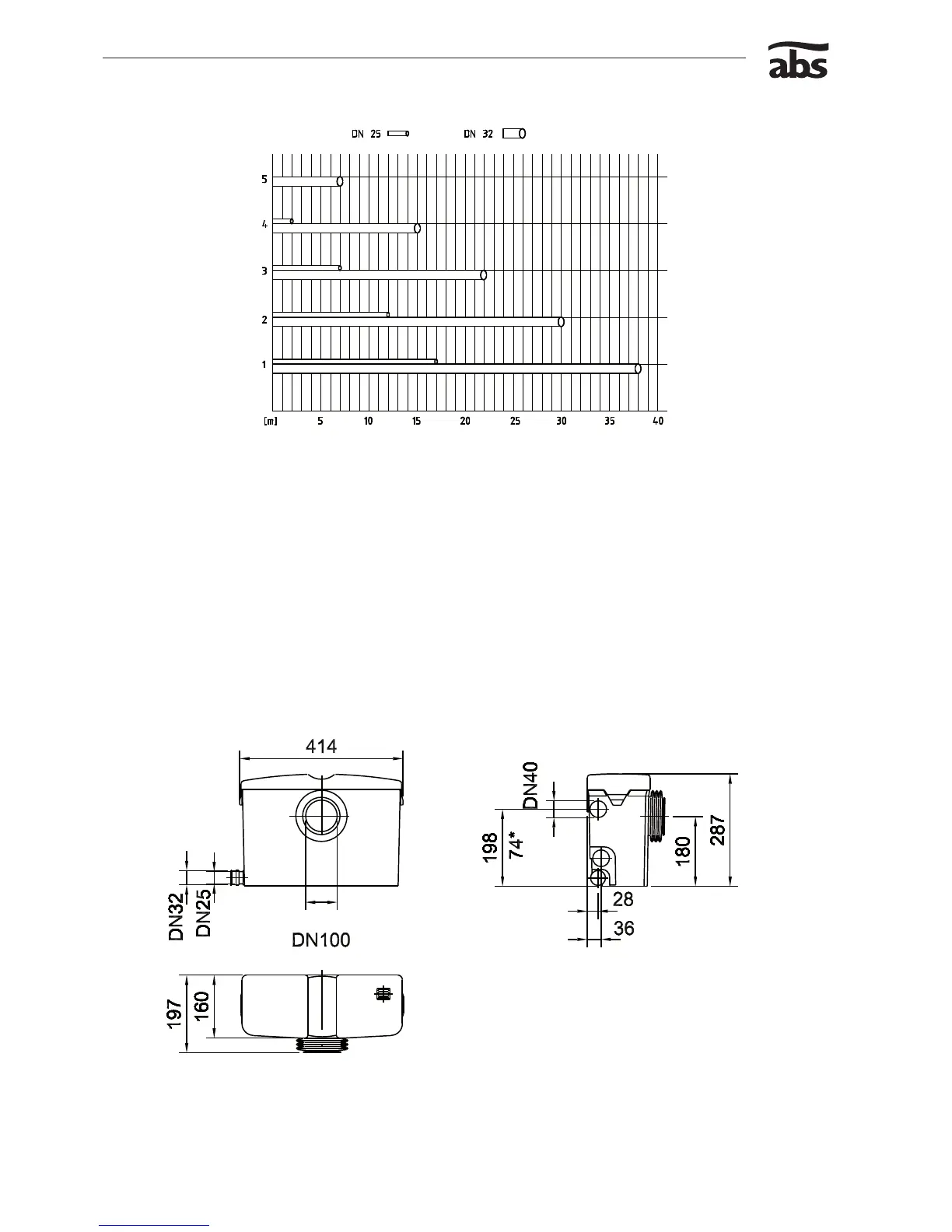

Figure 1 Maximum discharge line lengths for the optimum functioning of the unit.
Allowance has been made for two 90° bends and ABS non-return valves.
1.2.1 Dimensions
Dimensions in mm
NOTE AscertainEuropeancountriese.g.Germanyspecifyaminimuminowheightof
180mmfortheconnectionportofadditionalefuentsourcestheconnectionat
height * 74 mm is not available on versions with the part no. 07560310 / 07565091 If
exchanginganoldermodelanditisnotpossibletomovetheinowpipeposition
thentheversionwithpartno.07560320/07565092withthelowerinowheightof74
mm and the seal with built-in non return valve which is supplied as standard with this
version should be used.
1114-00
Figure 2 Dimensions of Piranhamat 100/120
